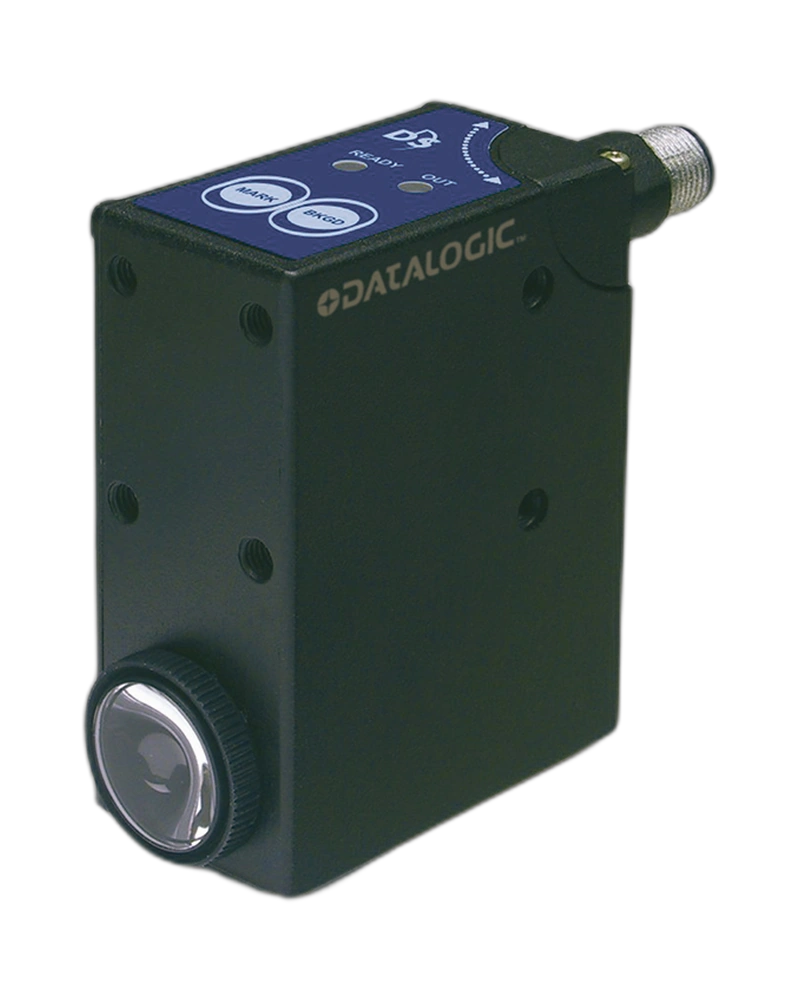

The Contrast Sensors - TLU - 954151170 is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing Contrast Sensors TLU 954151170 is a precision industrial sensor designed for robust operation in harsh environments. It features NPN/PNP push-pull output with a maximum voltage drop of ≤2V, ensuring minimal signal degradation across wide operating conditions.
Engineered for industrial resilience, this sensor maintains reliable performance across extreme temperature ranges and moisture exposure. The IP67 rating ensures protection against dust and immersion in water up to 1m depth, while the operating temperature range of -10°C to 55°C supports deployment in challenging conditions.
The documented configuration includes Response time: 0,05 (10kHz); Nominal sensing distance: 22mm; Emission: LED RGB; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: NPN/PNP push-pull; Operating Voltage: 10…30VDC; No-Load supply current: ≤ 80mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output type: Response time.
The documented configuration includes Dimensions: 31x58x82; Storage temperature: - 20°C…+70°C; Operating Temperature: -10°C ... 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C ... 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES.
The documented configuration includes Reverse Polarity Protection: Yes; Housing material: Metal - Zamak; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6).
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Output type | NPN/PNP push-pull |
| Response time | 0,05 (10kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 31x58x82 |
| Connections | M12 plug |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | -10°C ... 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C ... 55°C |
| Nominal sensing distance | 22mm |
| No-Load supply current | ≤ 80mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Zamak |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Output type | Response time |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED RGB |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
