This connector is designed for reliable and efficient pneumatic system connections. It enables the simultaneous connection or disconnection of multiple circuits, making it ideal for applications requiring frequent setup changes or equipment relocation. The ability to connect two circuits at once—either independently or in combination with other connectors—provides flexibility during installation, maintenance, or reconfiguration without interrupting operations.
The connector body is manufactured from PBT (polybutylene terephthalate), a standard resin material well-suited for general environmental conditions. The sealing component uses NBR (nitrile butadiene rubber), which functions effectively as a sealant under typical pneumatic conditions. However, it should be noted that NBR has limited ozone resistance and is not recommended for prolonged exposure to ozone-rich environments.

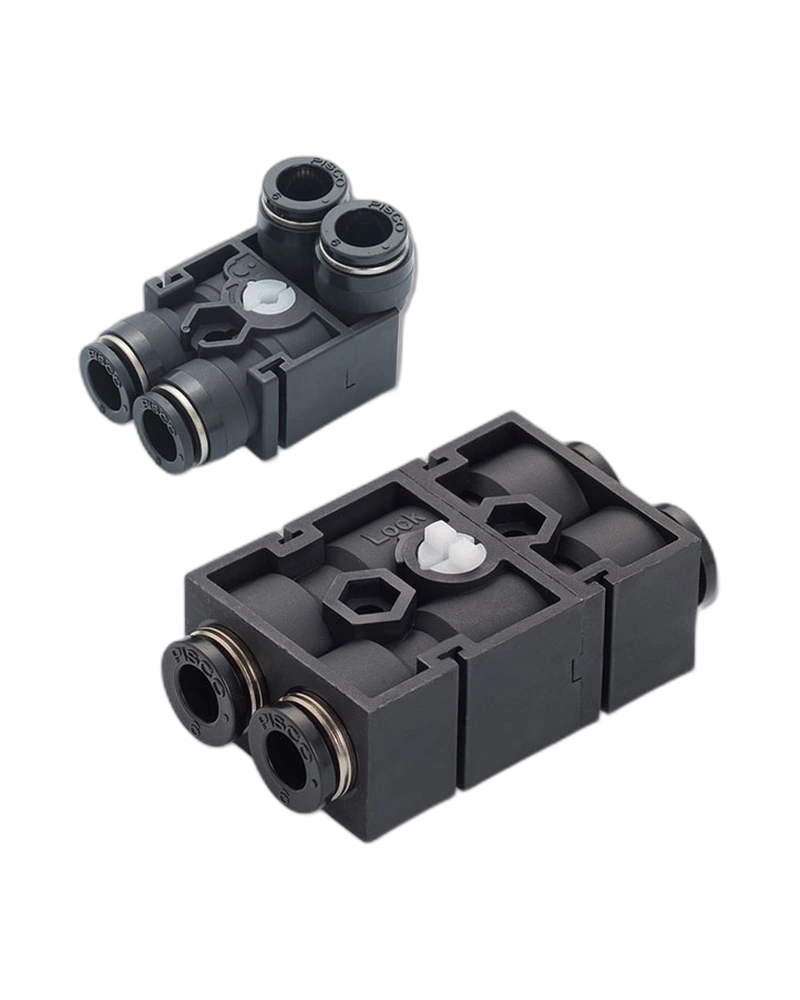

The connector features a modular design allowing multiple units to be connected either vertically or horizontally using connector bands. A lock pin mechanism enables simultaneous locking of all connected units, ensuring secure and stable connections during operation. Male and female units can be paired even when the tube diameters differ, providing compatibility across various tubing systems.
The connector is rated for air as the fluid medium, with a maximum operating pressure of 0.9MPa and a maximum vacuum capacity of -100kPa. It operates effectively within a temperature range of 0
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 0.9MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0
