Explore performance details, construction highlights, applications, and technical information in one clear overview.

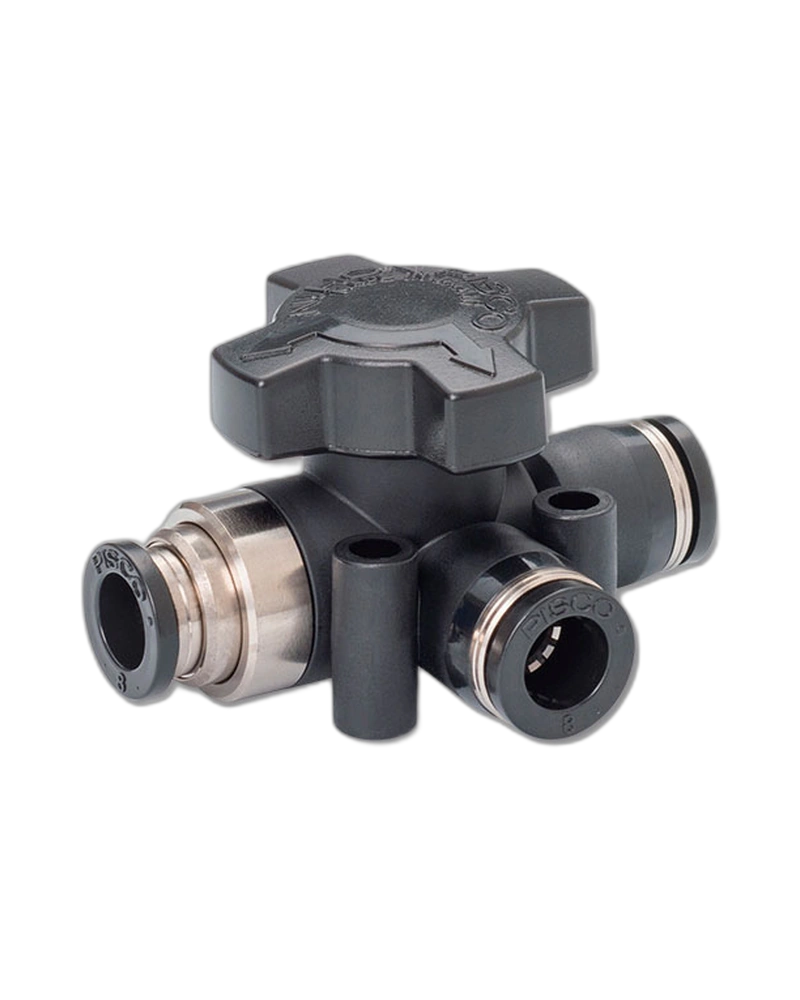

The Change Valve is a push-in fitting type three-way valve designed to switch air flow paths by exactly 90°. It enables quick and reliable redirection of fluid passages, making it ideal for applications requiring frequent or manual switching between different flow routes without the need for tools or complex mechanisms.
The main resin components are manufactured from PBT (polybutylene terephthalate), a standard engineering plastic well-suited for general environmental conditions. The primary metal parts are constructed from brass and coated with electroless nickel plating, providing durability and corrosion resistance in typical industrial settings.
The valve features a three-way configuration that allows for the redirection of air flow between two outlets and a common inlet. It is designed with a push-in fitting interface, enabling secure and rapid connection to compatible piping systems without the need for threading or additional tools.
This valve is rated for operation with air as the fluid medium. The maximum operating pressure is 0.7MPa, and it can handle a maximum vacuum of -100kPa. It operates within a temperature range of 0
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 0.7MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0
