The nominal sensing distance is 8 m.
Its Axial optical arrangement is paired with a nominal sensing distance of 8 m. The optical emission is Infrared (880 nm).
A switching frequency of 25 Hz.
The operating voltage is 20-253 VAC/50-60 Hz. No-load supply current is 1,5 W.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65.
Dimensions are 16x37x64. Weight is 185 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing). EMC compatibility is EN 60947-5-2.

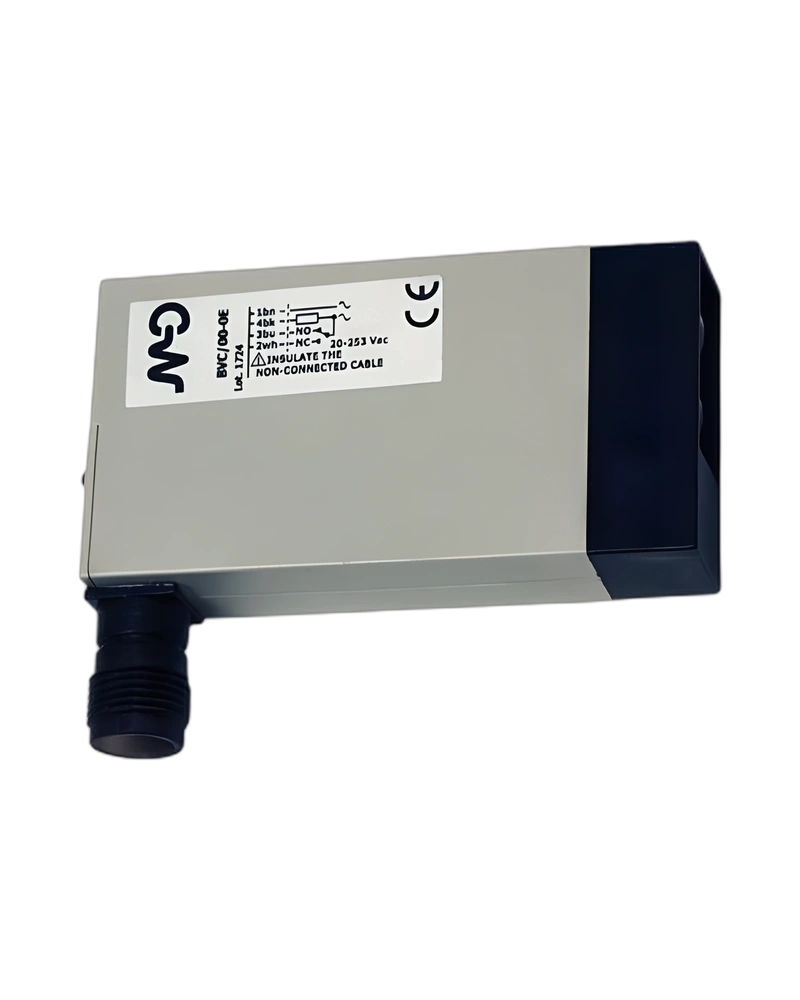

The manufacturer part number is BVC/00-0E. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
Time to availability is 200 ms. The external-light interference limit is 3000 lx Incandescent lamp, 10000 lx.
For electrical integration, it provides operating voltage 20-253 VAC/50-60 Hz, switching frequency 25 Hz. The physical configuration includes dimensions 16x37x64. It is rated IP65 for an operating temperature range of - 25 °C…+ 70 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | BVC/00-0E |
| Manufacturer part number | BVC/00-0E |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 25 Hz |
| Weight | 185 g |
| Active head material | PMMA |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 16x37x64 |
| Optical position | Axial |
| Nominal sensing distance | 8 m |
| Repeat accuracy | ≤ 10% |
| Degree of protection | IP65 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 200 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| External light interference | 3000 lx Incandescent lamp, 10000 lx |
| Operating voltage | 20-253 VAC/50-60 Hz |
| No-load supply current | 1,5 W |
| Emission | Infrared (880 nm) |
