Explore performance details, construction highlights, applications, and technical information in one clear overview.

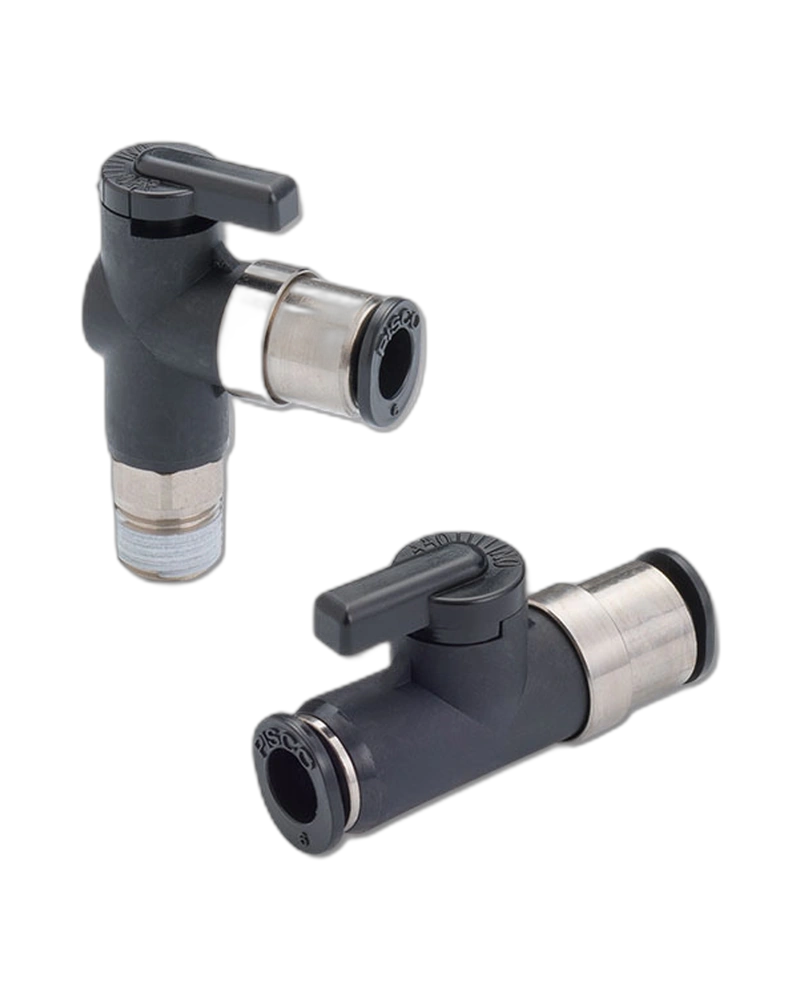

The Ball Valve (Mini Series) is a compact pneumatic control valve designed to turn the air supply to equipment on and off. It provides reliable, manual operation for starting or stopping airflow to pneumatic devices, ensuring precise control over system operation with minimal effort.
The valve features PBT resin for its main non-metallic components, which offers durability in general environmental conditions. The primary metal parts are constructed from brass with electroless nickel plating, providing corrosion resistance and long-term performance under typical operating conditions.
The valve is available in multiple sizes: φ3 mm, φ4 mm, and φ6 mm (equivalent to φ1/8", φ5/32"), offering flexibility for integration into various pneumatic systems. Connection options include taper pipe thread R1/8 and NPT 1/8 threads, allowing compatibility with standard piping configurations.
The valve is rated for a maximum operating pressure of 0.7MPa and can handle a maximum vacuum of -100kPa. It operates within a temperature range of 0
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Max. operating pressure | 0.7MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0
