Explore performance details, construction highlights, applications, and technical information in one clear overview.

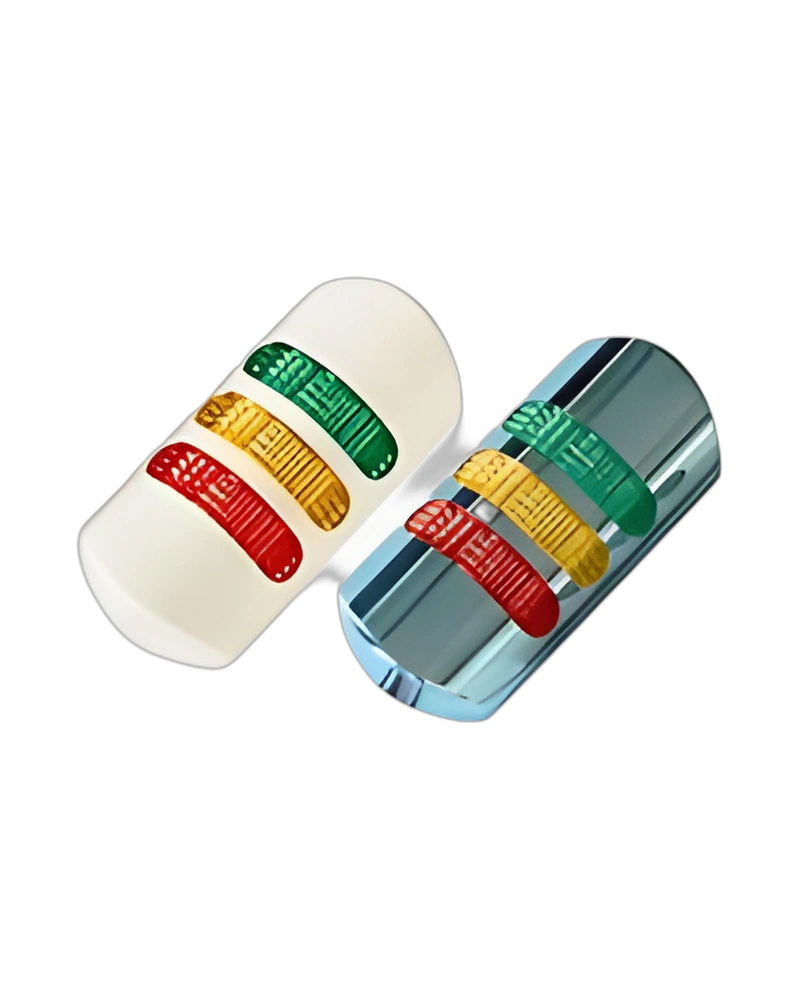

WME is a Hanyoung NUX signal tower light for machine status indication and operator notification. The configuration is defined by its electrical supply, light or sound characteristics, physical arrangement and available options, with model information of WME-BA | WME-CA. Model: WME-BA | WME-CA; Model: WME-BF | WME-CF; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz; Power consumption: 2.1 W or lower.
Power requirements, indication characteristics, installation dimensions and environmental protection should be matched to the panel or machine location. Light source: LED; Beige body: Chrome-plated body; Number of stacks: 3 stacks; Material: Lens : Polycarbonate (P.C), Body : ABS.
Key strengths of the WME come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Number of stacks: 3 stacks; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz; Power consumption: 2.1 W or lower; Light source: LED; Lens color: Red, Yellow, Green.
The main technical characteristics of WME are defined by its electrical ratings, operating inputs or outputs, performance values and control or indication functions. These specifications provide the working limits for the selected configuration. Lens color: Red, Yellow, Green; Protection grade: IP54; Number of stacks: 3 stacks; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz.
Additional technical characteristics include Power consumption: 2.1 W or lower; Light source: LED; Buzzer: -.
The physical design of WME should be considered together with the installation environment and the available mounting or display arrangement. Number of stacks: 3 stacks; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz; Power consumption: 2.1 W or lower; Light source: LED.
Further construction and environmental details include Lens color: Red, Yellow, Green; Protection grade: IP54; Buzzer: -.
Integration of WME begins with matching its connection, input or control signal and output requirements to the surrounding equipment. Number of stacks: 3 stacks; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz; Power consumption: 2.1 W or lower; Light source: LED.
Additional operating and interface details include Lens color: Red, Yellow, Green; Protection grade: IP54; Buzzer: -. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
For practical ordering and installation reference, the configuration details available for WME are: Number of stacks: 3 stacks; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz; Power consumption: 2.1 W or lower; Light source: LED; Lens color: Red, Yellow, Green; Protection grade: IP54; Buzzer: -; Material: Lens : Polycarbonate (P.C), Body : ABS; Model: WME-BA | WME-CA; Model: WME-BF | WME-CF. These characteristics help confirm the required model, physical arrangement and operating conditions before the product is added to a control panel or machine assembly.
Choose WME by confirming the exact model or configuration against the required operating conditions. The available model information is WME-BA | WME-CA. Number of stacks: 3 stacks; Power voltage: 24 V d.c./a.c. (compatible), 50 - 60 Hz; Power consumption: 2.1 W or lower; Light source: LED.
Before installation, confirm Lens color: Red, Yellow, Green; Protection grade: IP54; Buzzer: -. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | WME-BA | WME-CA |
| Beige body | Chrome-plated body |
| Features | Steady lights only |
| Flashing time | - |
| Buzzer | - |
| Buzzer volume | - |
| Model | WME-BF | WME-CF |
| Features | Steady, Flashing, Buzzer (select using external signals) |
| Flashing time | Approx. 60 times / 1 min |
| Buzzer | 2 tone types (Single/Interrupted) Approximately 80 dB (at 1 m distance) |
| Buzzer volume | 80 dB (at 1 m distance) |
| Number of stacks | 3 stacks |
| Power voltage | 24 V d.c./a.c. (compatible), 50 - 60 Hz |
| Power consumption | 2.1 W or lower |
| Light source | LED |
| Material | Lens : Polycarbonate (P.C), Body : ABS |
| Lens color | Red, Yellow, Green |
| Protection grade | IP54 |
| No | Type | Category | Title | File |
| 1 | Manual > Catalogue | Signal Tower Light | WME Catalogue |
| 1 | CAD > 2D | Signal Tower Light | WME (2D) |
| 2 | CAD > 3D | Signal Tower Light | WME (3D) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Signal Tower Light | WME series (EMC) |
