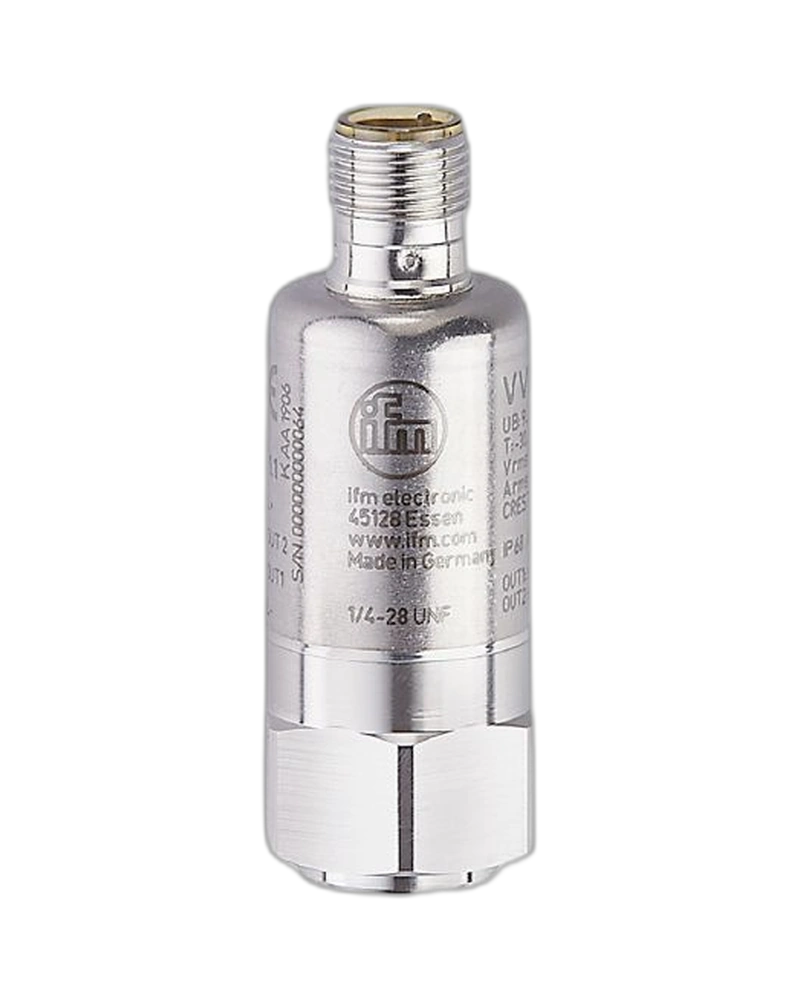

VVB021 is an IO-Link vibration sensor designed for medium-sized slow-running machines. It is optimised for machines below 300 kW operating between 120 and 600 rpm. The sensor measures vibration velocity, acceleration, crest and temperature. Two configurable digital outputs provide machine alarm functions. IO-Link enables digital configuration and monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VVB021 is designed for medium-sized machinery operating at lower rotational speeds. Its application range covers machines below 300 kW. The vibration velocity range extends to 45 mm/s. Acceleration measurement reaches 50 g. This supports condition monitoring of pumps, motors and other slow-running equipment.
The sensor uses capacitive MEMS technology. It measures v-RMS vibration velocity and acceleration values. Crest measurements provide additional information about machine condition. Temperature measurement supports thermal condition monitoring. These measurements can be accessed through IO-Link.
VVB021 provides two configurable digital outputs. The outputs can be configured as normally open or normally closed. IO-Link allows switching points and monitoring parameters to be configured. Short-circuit and overload protection improve output reliability. The stainless-steel housing provides IP67/IP68/IP69K protection.
Medium-sized machine optimisation
<300 kW application
120…600 rpm operation
MEMS sensor
Capacitive measurement
0…45 mm/s v-RMS
0…50 g acceleration
2…10000 Hz frequency
Crest measurement
Temperature measurement
Two digital outputs
PNP/NPN configurable
NO/NC configurable
100 mA output current
Short-circuit protection
Overload protection
IO-Link 1.1
COM2/COM3
M12 connection
IP67/IP68/IP69K
Slow-running motors
Medium-sized pumps
Industrial fans
Gearboxes
Bearing monitoring
Unbalance detection
Machine condition monitoring
Predictive maintenance
Industrial machinery
Condition-based maintenance
| Specification | VVB021 |
|---|---|
| Product type | Vibration sensor |
| Model | VVB021 |
| Machine class | Medium-sized machines |
| Machine power | <300 kW |
| Machine speed | 120…600 rpm |
| Sensor type | MEMS |
| Measuring principle | Capacitive |
| Measurement axes | 1 |
| Frequency range | 2…10000 Hz |
| v-RMS range | 0…45 mm/s |
| Acceleration range | 0…50 g |
| Acceleration equivalent | 0…490.3 m/s² |
| Crest range | 1…50 |
| Temperature range | -30…80 °C |
| Temperature resolution | 0.1 °C |
| Operating voltage | 18…30 V DC |
| Current consumption | <50 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Digital outputs | 2 |
| Output signal | Switching + IO-Link |
| Output design | PNP/NPN configurable |
| Output function | NO/NC |
| Output current | 100 mA/output |
| Voltage drop | 2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| IO-Link revision | 1.1 |
| Communication | COM2/COM3 |
| Connector | M12 A-coded |
| Mounting | Set screw |
| Mounting options | 1/4"-28 UNF / M8 |
| Housing | Stainless steel |
| Dimensions | Ø22 × 63.55 mm |
| Tightening torque | 8 Nm |
| Protection rating | IP67/IP68/IP69K |
| Self-test | Yes |
