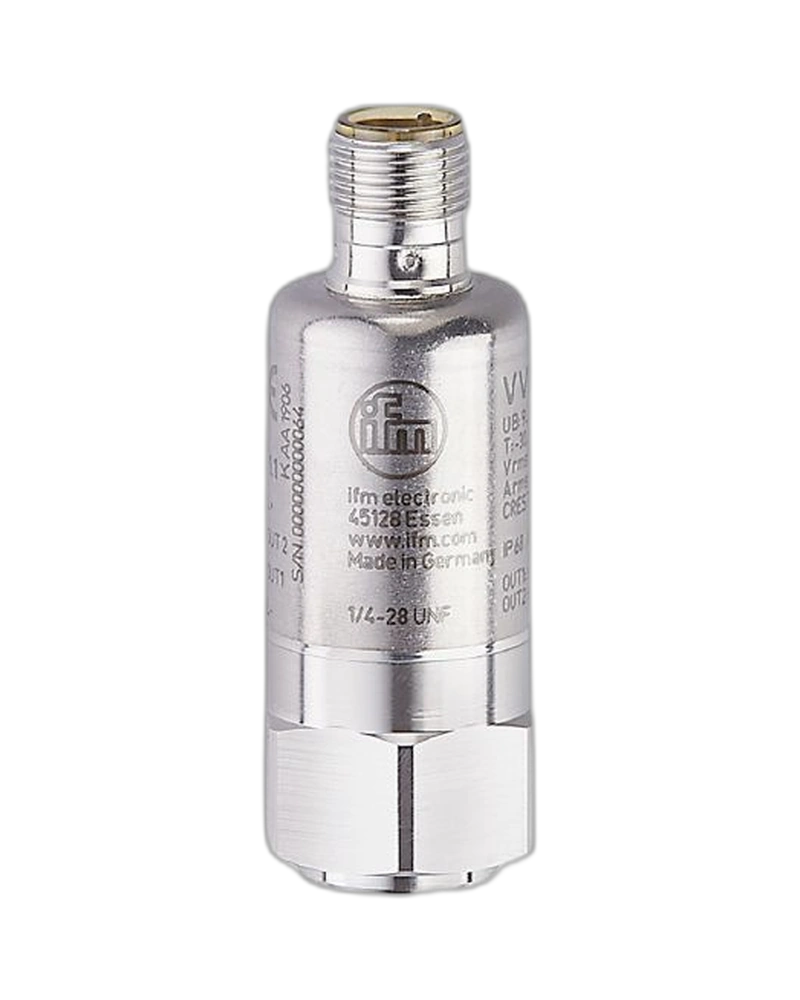

VVB020 is an IO-Link vibration sensor designed for medium-sized fast-running machines. It is optimised for machines below 300 kW operating above 600 rpm. The sensor measures vibration velocity and acceleration. Two configurable switching outputs support machine alarm functions. IO-Link provides digital access to vibration and temperature data.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VVB020 is designed for medium-sized industrial machinery. Its application range covers machines below 300 kW and speeds above 600 rpm. Vibration velocity is measured up to 45 mm/s. Acceleration measurement reaches 50 g. These measurements support practical condition monitoring.
IO-Link provides digital access to vibration measurements. The sensor measures v-RMS, a-RMS and a-Peak values. Crest information can also be evaluated. Temperature measurement adds another machine-health parameter. This allows multiple machine indicators to be monitored through one sensor.
Two digital outputs can be configured according to monitoring requirements. Outputs can operate as normally open or normally closed. Switching points are parameterisable through IO-Link. Short-circuit and overload protection support reliable operation. Stainless-steel construction provides strong environmental protection.
Medium-machine optimisation
<300 kW application
600 rpm operation
IO-Link communication
0…45 mm/s v-RMS
0…50 g acceleration
2…10000 Hz
Crest measurement
Temperature measurement
Two digital outputs
PNP/NPN configurable
NO/NC configurable
100 mA output current
2 V maximum voltage drop
Short-circuit protection
Overload protection
MEMS sensor
Capacitive principle
M12 connection
IP67/IP68/IP69K
Medium-size motors
Fast-running pumps
Industrial fans
Gearboxes
Machine condition monitoring
Bearing monitoring
Unbalance monitoring
Predictive maintenance
Rotating machinery
Industrial automation
| Specification | VVB020 |
|---|---|
| Product type | Vibration sensor |
| Model | VVB020 |
| Machine class | Medium-sized machines |
| Machine power | <300 kW |
| Machine speed | >600 rpm |
| Sensor technology | MEMS |
| Principle | Capacitive |
| Measurement axes | 1 |
| Frequency range | 2…10000 Hz |
| v-RMS | 0…45 mm/s |
| Acceleration | 0…50 g |
| Acceleration equivalent | 0…490.3 m/s² |
| Crest | 1…50 |
| Temperature range | -30…80 °C |
| Temperature resolution | 0.1 °C |
| Supply voltage | 18…30 V DC |
| Current consumption | <50 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Digital outputs | 2 |
| Output signal | Switching + IO-Link |
| Output design | PNP/NPN configurable |
| Output function | NO/NC |
| Output current | 100 mA/output |
| Voltage drop | 2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| IO-Link | Version 1.1 |
| Communication | COM2/COM3 |
| Connector | M12 |
| Mounting | Set screw |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Dimensions | Ø22 × 63.55 mm |
| Tightening torque | 8 Nm |
| Self-test | Yes |
| Application | Fast medium-sized machines |
