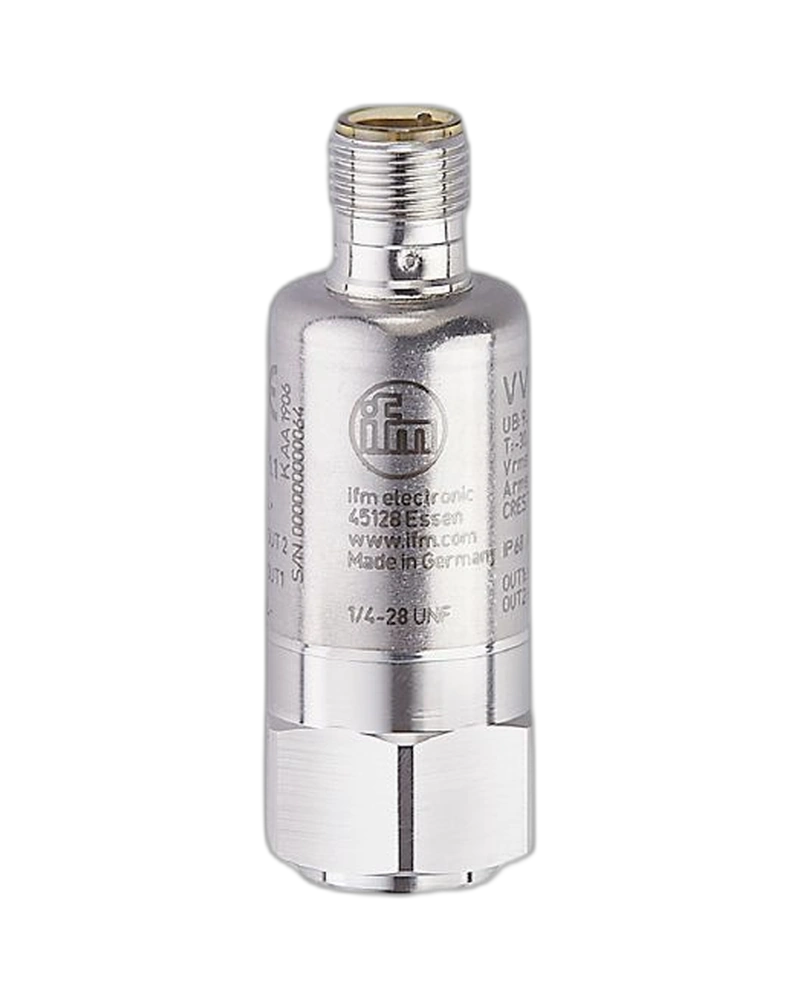

VVB011 is an IO-Link vibration sensor configured for large, slow-running machines. It is intended for machines above 300 kW operating at 120…600 rpm. The sensor measures vibration velocity, acceleration, crest and temperature. Two configurable digital outputs provide machine alarm functions. IO-Link enables detailed digital monitoring and parameterisation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VVB011 is optimised for large machines operating at lower speeds. Its v-RMS range reaches 45 mm/s. Acceleration measurement extends to 50 g. The sensor can detect multiple vibration characteristics. This supports condition monitoring of large rotating equipment.
IO-Link provides digital access to measurement values and parameters. VVB011 supports COM2 and COM3 communication. Filters, hysteresis and switching logic can be configured digitally. Process data can be transferred directly through the IO-Link master. This simplifies integration into modern automation systems.
Two digital outputs can be configured for machine alarms. Temperature measurement ranges from -30 to 80 °C. Self-test functionality supports device diagnostics. The stainless-steel housing provides IP67/IP68/IP69K protection. This makes the sensor suitable for demanding machine installations.
Large-machine optimisation
120…600 rpm machine range
300 kW machine class
IO-Link 1.1
0…45 mm/s v-RMS
0…50 g acceleration
2…10000 Hz
Temperature measurement
Crest measurement
Two digital outputs
PNP/NPN configurable
NO/NC configurable
100 mA output load
Short-circuit protection
Overload protection
Self-test
M12 connector
Stainless-steel housing
IP67/IP68/IP69K
8 Nm mounting torque
Large motors
Large pumps
Large fans
Large gearboxes
Slow rotating equipment
Bearing monitoring
Unbalance monitoring
Gear condition monitoring
Predictive maintenance
Condition monitoring
| Specification | VVB011 |
|---|---|
| Product type | Vibration sensor |
| Model | VVB011 |
| Machine class | Large machines |
| Machine power | >300 kW |
| Machine speed | 120…600 rpm |
| Sensor technology | MEMS |
| Measuring principle | Capacitive |
| Measurement axes | 1 |
| Frequency range | 2…10000 Hz |
| v-RMS range | 0…45 mm/s |
| Acceleration range | 0…50 g |
| Acceleration equivalent | 0…490.3 m/s² |
| Crest range | 1…50 |
| Temperature range | -30…80 °C |
| Supply voltage | 18…30 V DC |
| Current consumption | <50 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Digital outputs | 2 |
| Output signal | Switching + IO-Link |
| Output design | PNP/NPN configurable |
| Output function | NO/NC |
| Output current | 100 mA/output |
| Voltage drop | 2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| IO-Link | Version 1.1 |
| Communication | COM2/COM3 |
| Connector | M12 A-coded |
| Mounting | Set screw |
| Mounting thread | 1/4"-28 UNF / M8 |
| Housing | Stainless steel |
| Protection | IP67/IP68/IP69K |
| Temperature resolution | 0.1 °C |
| Self-test | Yes |
| Condition monitoring | Yes |
