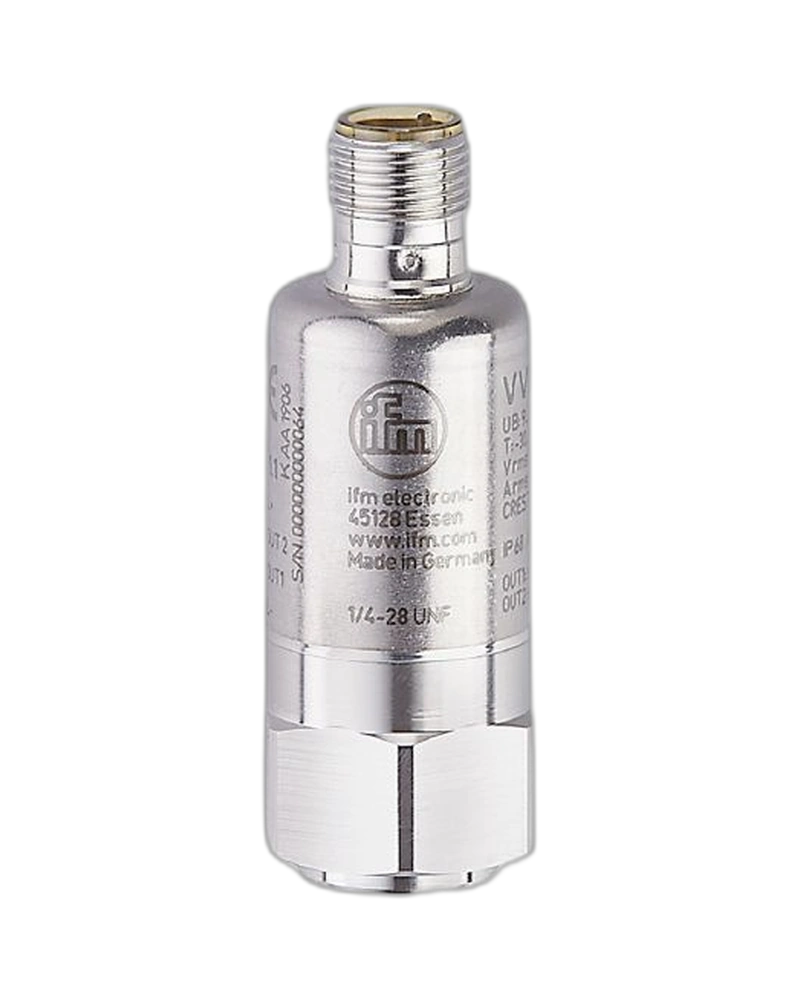

VVB001 is an IO-Link vibration sensor designed for industrial machine condition monitoring. It measures vibration velocity, acceleration and temperature. The sensor provides two configurable digital outputs for alarm functions. IO-Link enables detailed parameterisation and access to vibration values. Its stainless-steel housing provides IP67/IP68/IP69K protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VVB001 measures v-RMS vibration velocity up to 45 mm/s. It also measures acceleration up to 50 g. Crest factor information provides additional machine-condition information. Temperature measurement extends the monitoring capability. These values support comprehensive machine health assessment.
VVB001 communicates using IO-Link 1.1. It supports COM2 and COM3 communication speeds. IO-Link enables parameterisation of filters, hysteresis and switching logic. Process data can be transferred digitally to the control system. This reduces the need for separate analogue signal wiring.
Two digital outputs are configurable as normally open or normally closed. Switching points can be parameterised for vibration and temperature values. Self-test functionality supports device diagnostics. The sensor can be installed using 1/4"-28 UNF or M8 set screws. Its stainless-steel housing supports harsh industrial applications.
IO-Link 1.1
v-RMS measurement
a-RMS measurement
a-Peak measurement
Crest factor measurement
Temperature measurement
0…45 mm/s v-RMS
0…50 g acceleration
2…10000 Hz frequency range
Two digital outputs
PNP/NPN configurable
NO/NC configurable
100 mA output load
Short-circuit protection
Overload protection
Self-test
COM2 communication
COM3 communication
M12 A-coded connector
IP67/IP68/IP69K
Industrial machine monitoring
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing monitoring
Unbalance monitoring
Temperature monitoring
Predictive maintenance
Condition-based maintenance
| Specification | VVB001 |
|---|---|
| Product type | Vibration sensor |
| Model | VVB001 |
| Product category | VIBRATION IO-LINK SWITCH |
| Sensor type | MEMS |
| Measuring principle | Capacitive |
| Measurement axes | 1 |
| Frequency range | 2…10000 Hz |
| v-RMS range | 0…45 mm/s |
| a-RMS/a-Peak range | 0…50 g |
| Acceleration equivalent | 0…490.3 m/s² |
| Crest range | 1…50 |
| Temperature range | -30…80 °C |
| Temperature resolution | 0.1 °C |
| Supply voltage | 18…30 V DC |
| Current consumption | <50 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Digital outputs | 2 |
| Output type | Switching + IO-Link |
| Output design | PNP/NPN configurable |
| Output logic | NO/NC |
| Max voltage drop | 2 V |
| Max output current | 100 mA |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| IO-Link revision | 1.1 |
| IO-Link speed | COM2/COM3 |
| Cycle time | 11.6 / 3.6 ms |
| Connector | M12 A-coded |
| Housing | Stainless steel 316L |
| Dimensions | Ø22 × 63.55 mm |
| Mounting | Set screw |
| Tightening torque | 8 Nm |
| Protection rating | IP67/IP68/IP69K |
| Weight | 116 g |
| MTTF | 299 years |
