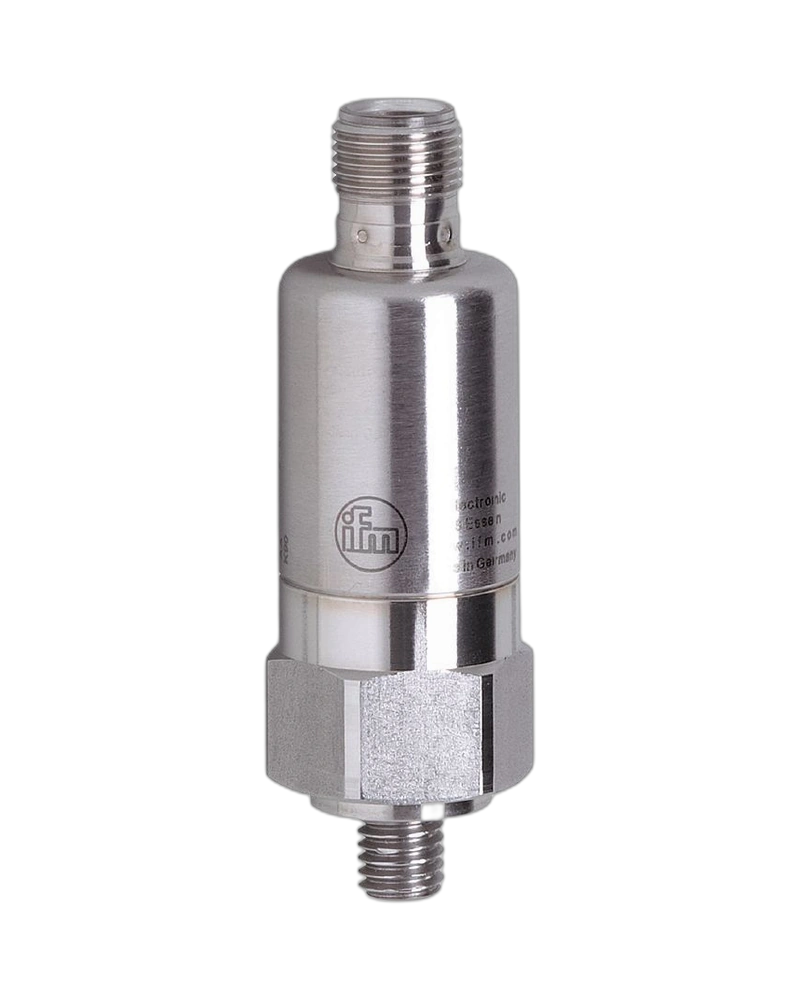

VTV12A is an ATEX vibration transmitter for hazardous-area machine monitoring. It measures vibration velocity from 0 to 25 mm/s RMS. The transmitter covers a 10…1000 Hz frequency range. Its 4…20 mA output enables direct integration with industrial control systems. ATEX approvals allow use in specified hazardous environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VTV12A is designed for vibration monitoring in potentially explosive environments. It uses MEMS sensing technology. The 0…25 mm/s RMS range supports standard machine condition monitoring. Its 4…20 mA output provides continuous vibration information. This supports alarm and maintenance systems.
The transmitter carries ATEX II 3D and ATEX II 3G approvals. It is suitable for specified hazardous-area applications. The operating temperature range is -20…60 °C. IP67 protection supports industrial environmental conditions. Outside hazardous areas, enhanced IP69 protection is available according to the product specification.
VTV12A uses a 4…20 mA analogue output. This makes it suitable for PLC and monitoring-system integration. The sensor follows DIN ISO 10816 vibration measurement principles. M12 connectivity supports industrial installation. The transmitter provides a compact approach to hazardous-area vibration monitoring.
ATEX-certified vibration transmitter
MEMS technology
0…25 mm/s RMS
10…1000 Hz
DIN ISO 10816
4…20 mA output
9.6…32 V DC
M12 connection
IP67 protection
IP69 outside hazardous area
ATEX II 3D
ATEX II 3G
Continuous vibration monitoring
RMS measurement
Industrial analogue output
Machine condition monitoring
PLC integration
Compact construction
Hazardous-area suitability
Maintenance monitoring
Hazardous-area motors
Oil and gas machinery
Chemical equipment
Petrochemical pumps
Hazardous-area fans
Rotating machinery
Machine condition monitoring
Predictive maintenance
Industrial automation
Vibration alarm systems
| Specification | VTV12A |
|---|---|
| Product type | ATEX vibration transmitter |
| Model | VTV12A |
| Technology | MEMS |
| Measurement | Vibration velocity |
| Measuring range | 0…25 mm/s RMS |
| Frequency range | 10…1000 Hz |
| Standard | DIN ISO 10816 |
| Output | 4…20 mA |
| Supply voltage | 9.6…32 V DC |
| Accuracy | <±3% final value |
| Repeatability | <0.5% final value |
| Linearity | 0.25% |
| Measurement axes | 1 |
| Connection | M12 |
| Mounting | Set screw |
| Mounting thread | 1/4"-28 UNF / M8 × 1.25 |
| Protection | IP67 |
| Outside hazardous area | IP69 |
| Ambient temperature | -20…60 °C |
| Sensor technology | MEMS |
| Output signal | Analogue |
| Output range | 4…20 mA |
| RMS measurement | Yes |
| Hazardous-area approval | ATEX |
| Gas approval | II 3G |
| Dust approval | II 3D |
| Machine monitoring | Yes |
| PLC compatibility | Yes |
| Standard | DIN ISO 10816 |
| Industrial application | Yes |
| Condition monitoring | Yes |
| CE | Yes |
| ATEX | Yes |
