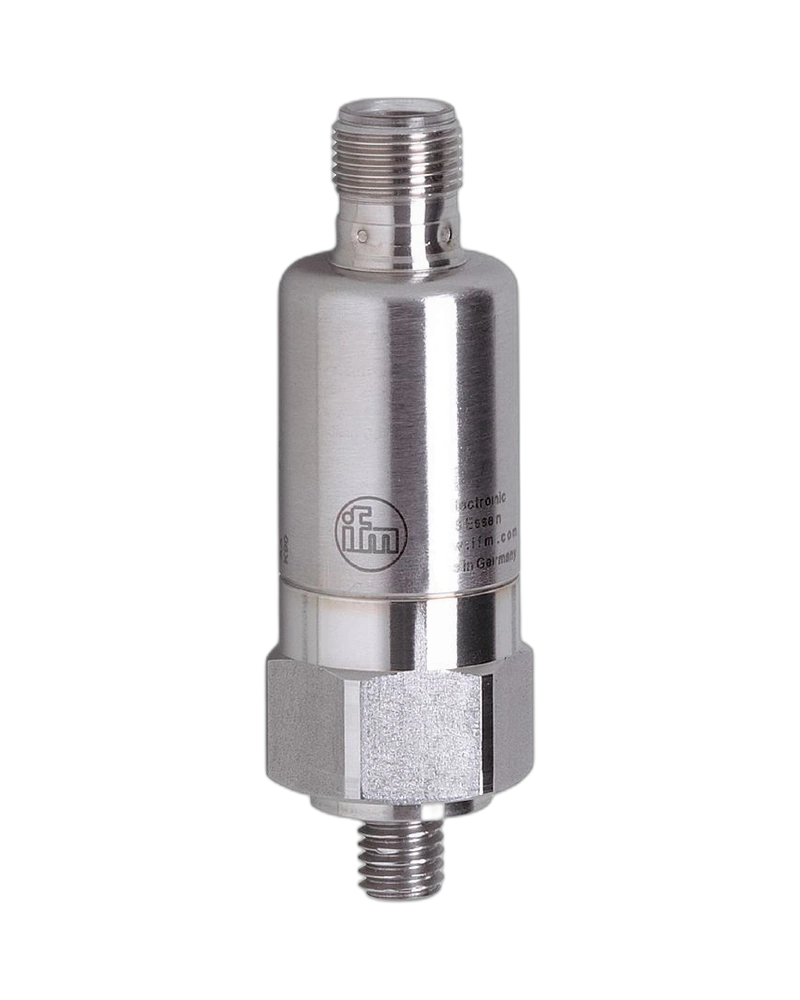

VTV121 is a vibration transmitter designed for continuous machine vibration monitoring. It measures vibration velocity from 0 to 50 mm/s RMS. The sensor operates across a 10…1000 Hz frequency range according to DIN ISO 10816. A 4…20 mA output provides direct integration with control systems. MEMS technology provides compact and reliable vibration measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VTV121 measures RMS vibration velocity from 0 to 50 mm/s. The measurement range is suitable for machine condition monitoring. Its 10…1000 Hz frequency range covers common rotating machinery vibration. The sensor follows DIN ISO 10816-based monitoring principles. This supports straightforward machine health assessment.
The sensor provides a 4…20 mA analogue output. This allows direct connection to PLCs and monitoring systems. The output represents the measured vibration condition. It can be used for alarm thresholds in control systems. This reduces the need for separate signal conversion.
VTV121 uses MEMS vibration sensing technology. Its housing provides IP67/IP68/IP69K protection. The sensor operates from 9.6…32 V DC. M12 connectivity simplifies installation. The device is suitable for motors, pumps and fans.
MEMS vibration sensor
0…50 mm/s RMS range
10…1000 Hz frequency range
DIN ISO 10816 measurement
4…20 mA output
9.6…32 V DC supply
M12 connection
IP67 protection
IP68 protection
IP69K protection
±3% measuring error
0.5% repeatability
0.25% linearity deviation
Continuous vibration measurement
Machine condition monitoring
Compact industrial housing
Direct PLC connection
RMS vibration measurement
Rotating machinery monitoring
Industrial automation integration
Motor monitoring
Pump monitoring
Fan monitoring
Compressor monitoring
Gearbox monitoring
Rotating equipment
Condition monitoring
Predictive maintenance
Machine health monitoring
Industrial automation
| Specification | VTV121 |
|---|---|
| Product type | Vibration transmitter |
| Model | VTV121 |
| Sensor technology | MEMS |
| Measurement type | Vibration velocity |
| Measuring range | 0…50 mm/s RMS |
| Frequency range | 10…1000 Hz |
| Standard | DIN ISO 10816 |
| Output | 4…20 mA |
| Supply voltage | 9.6…32 V DC |
| Output type | Analogue |
| Measuring error | <±3% final value |
| Repeatability | <0.5% final value |
| Linearity | 0.25% |
| Measurement axis | 1 |
| Mounting | Set screw |
| Mounting thread | 1/4"-28 UNF / M8 × 1.25 |
| Electrical connection | M12 |
| Protection | IP67 |
| Additional protection | IP68 |
| High-pressure protection | IP69K |
| Sensor type | MEMS |
| RMS measurement | Yes |
| Monitoring standard | DIN ISO 10816 |
| Application | Rotating machinery |
| Signal transmission | 4…20 mA |
| PLC compatibility | Yes |
| Ambient temperature | -30…125 °C |
| Industrial installation | Yes |
| Condition monitoring | Yes |
| Output integration | Direct analogue |
| CE | Yes |
| cUL | Yes |
| EAC | Yes |
