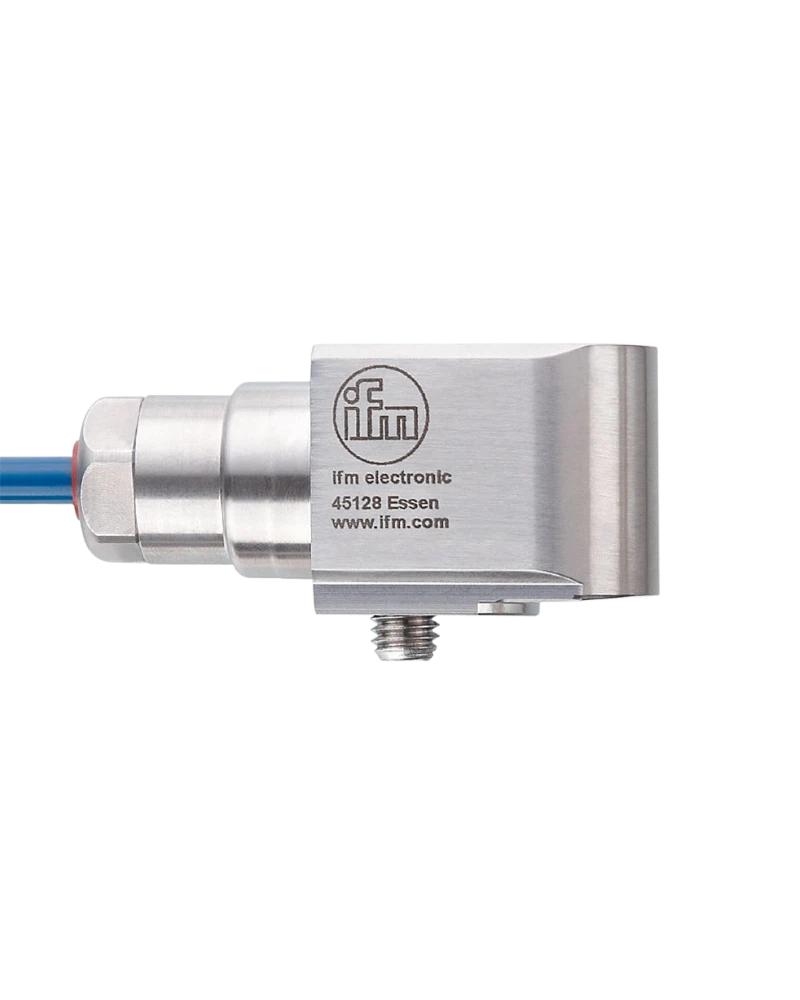

VSP02A is an ATEX piezoelectric acceleration sensor for hazardous-area vibration monitoring. It provides a -50…50 g measuring range and 2…10000 Hz frequency response. The sensor uses IEPE communication and intrinsically safe supply arrangements. Stainless-steel construction provides mechanical robustness. It is designed for connection to external VSExxx diagnostic electronics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSP02A is designed for vibration measurement in potentially explosive environments. ATEX and IECEx certification support specified hazardous-area installations. The sensor connects through intrinsically safe supply isolators. Its single-axis design provides focused vibration measurement. This supports condition monitoring of critical equipment.
The sensor measures vibration from -50 to +50 g. Its operating frequency range is 2…10000 Hz. Sensitivity is 100 mV/g. Noise density is 0.1 mg. The piezoelectric sensing principle provides dynamic vibration information.
VSP02A uses a robust stainless-steel housing. Its IP68 protection supports harsh environments. The sensor operates across -55…90 °C. M8 × 1.25 mounting enables secure installation. A 5000 g shock rating supports demanding applications.
ATEX acceleration sensor
IECEx compatibility
Piezoelectric principle
Single measurement axis
-50…50 g
2…10000 Hz
100 mV/g sensitivity
0.1 mg noise density
5% transverse sensitivity
IEPE communication
10…12 V operation
0.5…8 mA consumption
100 MΩ insulation
IP68 protection
Stainless-steel housing
M8 × 1.25 mounting
8 Nm tightening torque
5000 g shock resistance
Intrinsically safe supply
VSExxx connection
Oil and gas equipment
Chemical plants
Petrochemical machinery
Hazardous-area motors
Hazardous-area pumps
Gearbox monitoring
Bearing monitoring
Rotating equipment
Explosion-risk machinery
Predictive maintenance
| Specification | VSP02A |
|---|---|
| Product type | ATEX acceleration sensor |
| Model | VSP02A |
| Technology | Piezoelectric |
| Measurement axes | 1 |
| Vibration range | -50…50 g |
| Frequency range | 2…10000 Hz |
| Sensitivity | 100 mV/g |
| Noise density | 0.1 mg |
| Transverse sensitivity | ≤5% |
| Minimum measuring time | 2 s |
| Operating voltage | 10…12 V DC |
| Current consumption | 0.5…8 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Maximum load | 200 Ω |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Interface | IEPE |
| Mounting | M8 × 1.25 |
| Dimensions | 30 × 25.5 × 64.7 mm |
| Housing | Stainless steel |
| Tightening torque | 8 Nm |
| Ambient temperature | -55…90 °C |
| Storage temperature | -55…90 °C |
| Protection | IP68 |
| 1D protection restriction | IP65 |
| Shock resistance | 5000 g |
| ATEX design | Ex ia |
| Application | Hazardous areas |
| External electronics | VSExxx |
| Pack quantity | 1 |
