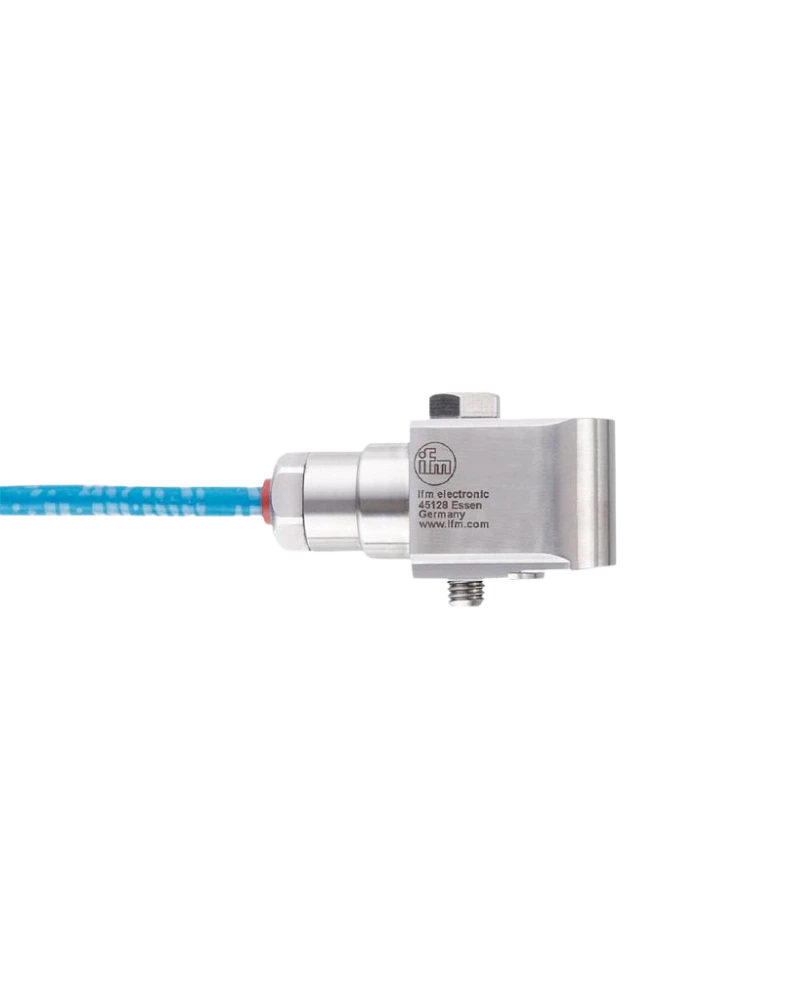

VSP004 is a submersible piezoelectric acceleration sensor for harsh environments. It provides a vibration range of -80…80 g and frequency response up to 12000 Hz. The sensor uses IEPE communication for connection to external VSE electronics. Its screened cable supports reliable vibration signal transmission. The design is intended for demanding and wet industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSP004 is designed for applications requiring high environmental protection. Its sealed construction supports submerged installation conditions. The sensor provides IP68 protection. The piezoelectric element delivers dynamic vibration information. This makes it suitable for machinery installed in wet environments.
The sensor measures vibration from -80 to +80 g. When connected to VSE electronics, the specified range is -50…50 g. Its frequency range extends from 1.5 to 12000 Hz. Noise density is specified at 0.1 mg. Single-axis measurement supports focused machine diagnostics.
VSP004 uses IEPE communication. The sensor operates with 10…12 V bias voltage. A screened cable connects the sensor to external diagnostic electronics. Reverse polarity protection is provided. This supports reliable installation in demanding vibration-monitoring systems.
Submersible acceleration sensor
Piezoelectric technology
Single-axis measurement
-80…80 g range
-50…50 g through VSE
1.5…12000 Hz
IEPE interface
0.1 mg noise density
5% transverse sensitivity
10…12 V bias
0.5…8 mA current
100 MΩ insulation
Reverse polarity protection
Screened cable
IP68 protection
M8 × 1.25 mounting
Stainless-steel construction
±10% accuracy
External VSE connection
High environmental resistance
Submersible machinery
Wet-area machinery
Pump monitoring
Water-treatment equipment
Industrial pumps
Motor monitoring
Bearing monitoring
Machine condition monitoring
Harsh industrial environments
Vibration diagnostics
| Specification | VSP004 |
|---|---|
| Product type | Submersible acceleration sensor |
| Model | VSP004 |
| Technology | Piezoelectric |
| Measurement axes | 1 |
| Vibration range | -80…80 g |
| VSE-connected range | -50…50 g |
| Frequency range | 1.5…12000 Hz |
| Sensitivity | 100 mV/g |
| Noise density | 0.1 mg |
| Transverse sensitivity | ≤5% |
| Minimum measuring time | 2 s |
| Accuracy | ±10% |
| Interface | IEPE |
| Bias voltage | 10…12 V |
| Current consumption | 0.5…8 mA |
| Insulation resistance | ≥100 MΩ |
| Reverse polarity | Yes |
| Mounting | M8 × 1.25 |
| Housing | Stainless steel |
| Protection | IP68 |
| Cable | Screened |
| External electronics | VSE |
| Measurement principle | Piezoelectric |
| Environmental design | Submersible |
| CE | Yes |
| UKCA | Yes |
| Cable entry | Sealed |
| Installation | Harsh industrial environments |
| Sensor output | IEPE |
| Number of channels | 1 |
| Pack quantity | 1 |
