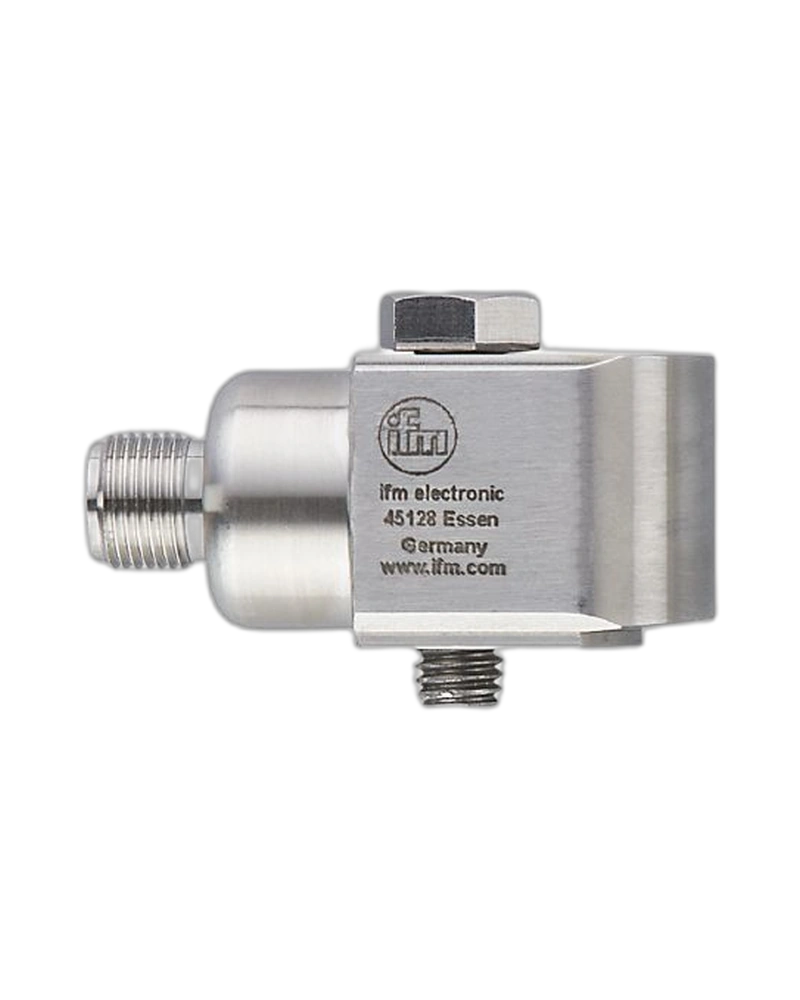

VSP003 is a single-axis piezoelectric acceleration sensor for industrial vibration diagnostics. It measures vibration up to 80 g over a frequency range of 1.5…16000 Hz. The sensor uses IEPE communication for connection to VSE electronics. Its stainless-steel housing provides robust mechanical protection. The sensor is suitable for high-frequency vibration analysis.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSP003 provides a frequency range extending to 16 kHz. The piezoelectric sensing principle provides stable dynamic vibration measurement. Its 100 mV/g sensitivity supports detailed machine signal acquisition. Low noise density improves vibration signal quality. This makes it suitable for high-frequency diagnostic tasks.
The sensor uses stainless-steel housing construction. IP67 protection supports industrial environments. The sensor withstands harsh mechanical conditions. M8 × 1.25 mounting provides secure installation. The compact sensor design simplifies machine installation.
VSP003 is designed for connection to external VSE diagnostic electronics. IEPE communication supports stable vibration transmission. The sensor operates with 10…12 V bias voltage. Its M12 A-coded connector provides standard industrial connectivity.
Piezoelectric sensor
Single measurement axis
-80…80 g
-50…50 g through VSE
1.5…16000 Hz
100 mV/g sensitivity
0.1 mg noise density
5% transverse sensitivity
IEPE interface
10…12 V bias
0.5…8 mA current
100 MΩ insulation
Reverse polarity protection
IP67 protection
Stainless-steel housing
M8 × 1.25 mounting
8 Nm tightening torque
M12 A-coded connector
High-frequency measurement
External VSE connection
High-frequency vibration analysis
Motor diagnostics
Bearing diagnostics
Gearbox monitoring
Pump monitoring
Fan monitoring
Machine condition monitoring
Predictive maintenance
Industrial vibration analysis
Rotating machinery
| Specification | VSP003 |
|---|---|
| Product type | Acceleration sensor |
| Model | VSP003 |
| Measuring principle | Piezoelectric |
| Measurement axes | 1 |
| Measuring range | -80…80 g |
| VSE-connected range | -50…50 g |
| Frequency range | 1.5…16000 Hz |
| Sensitivity | 100 mV/g |
| Noise density | 0.1 mg |
| Transverse sensitivity | ≤5% |
| Minimum measuring time | 1 s |
| Interface | IEPE |
| Bias voltage | 10…12 V |
| Current consumption | 0.5…8 mA |
| Insulation resistance | ≥100 MΩ |
| Reverse polarity | Yes |
| Protection class | III |
| Mounting | M8 × 1.25 |
| Tightening torque | 8 Nm |
| Housing | Stainless steel |
| Protection | IP67 |
| Ambient temperature | -55…130 °C |
| Storage temperature | -55…130 °C |
| Shock resistance | High mechanical shock resistance |
| Communication | IEPE |
| Connector | M12 A-coded |
| External electronics | VSE |
| Frequency capability | High-frequency vibration |
| Weight | 135 g |
| Pack quantity | 1 |
