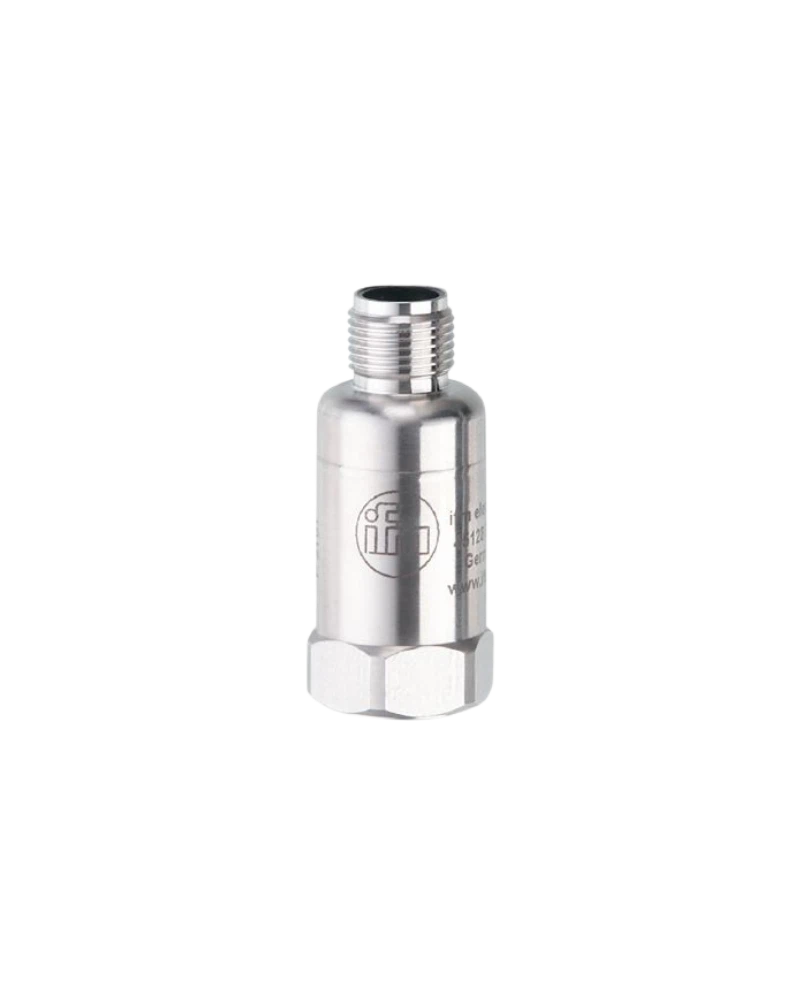

VSP001 is a piezoelectric acceleration sensor with an IEPE interface. It provides a wide vibration range for industrial vibration diagnostics. The sensor is designed for connection to external VSE diagnostic electronics. Its stainless-steel housing provides robust mechanical protection. The sensor uses a single measurement axis for focused vibration measurement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSP001 uses piezoelectric sensing technology. It measures vibration over a 2…10000 Hz frequency range. The sensor provides 100 mV/g sensitivity. Its low noise density supports accurate vibration acquisition. IEPE communication provides stable signal transmission.
The stainless-steel housing is designed for industrial environments. IP67 protection helps protect the sensor against dust and water ingress. The sensor withstands high mechanical shock. A set-screw mounting arrangement provides secure fixation. The sensor is suitable for demanding machinery environments.
VSP001 is designed for connection to external VSE diagnostic electronics. Its M12 A-coded connector provides standard industrial connectivity. The sensor can be connected using long cables up to 1000 m. This supports flexible installation between machine and evaluation electronics.
Piezoelectric technology
Single-axis measurement
-80…80 g range
-50…50 g when connected to VSE
2…10000 Hz
100 mV/g sensitivity
0.1 mg noise density
5% transverse sensitivity
IEPE interface
10…12 V bias voltage
0.5…8 mA current
100 MΩ insulation resistance
Reverse polarity protection
IP67 protection
Stainless-steel housing
Set-screw mounting
8 Nm tightening torque
M12 A-coded connector
Maximum cable length 1000 m
External VSE connection
Vibration diagnostics
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing diagnostics
Rotating equipment
Predictive maintenance
Machine condition monitoring
Industrial vibration analysis
| Specification | VSP001 |
|---|---|
| Product type | Acceleration sensor |
| Model | VSP001 |
| Technology | Piezoelectric |
| Measurement axes | 1 |
| Measuring range | -80…80 g |
| VSE-connected range | -50…50 g |
| Frequency range | 2…10000 Hz |
| Sensitivity | 100 mV/g |
| Noise density | 0.1 mg |
| Transverse sensitivity | ≤5% |
| Minimum measuring time | 2 s |
| Interface | IEPE |
| Bias voltage | 10…12 V DC |
| Current consumption | 0.5…8 mA |
| Insulation resistance | ≥100 MΩ |
| Reverse polarity | Yes |
| Protection class | III |
| Mounting | Set screw |
| Tightening torque | 8 Nm |
| Housing material | Stainless steel |
| Protection rating | IP67 |
| Ambient temperature | -55…125 °C |
| Storage temperature | -55…125 °C |
| Shock resistance | 5000 g |
| EMC | EN 61326-1 |
| Communication | IEPE |
| Connector | M12 A-coded |
| Maximum cable length | 1000 m |
| Weight | 73.5 g |
| Pack quantity | 1 |
