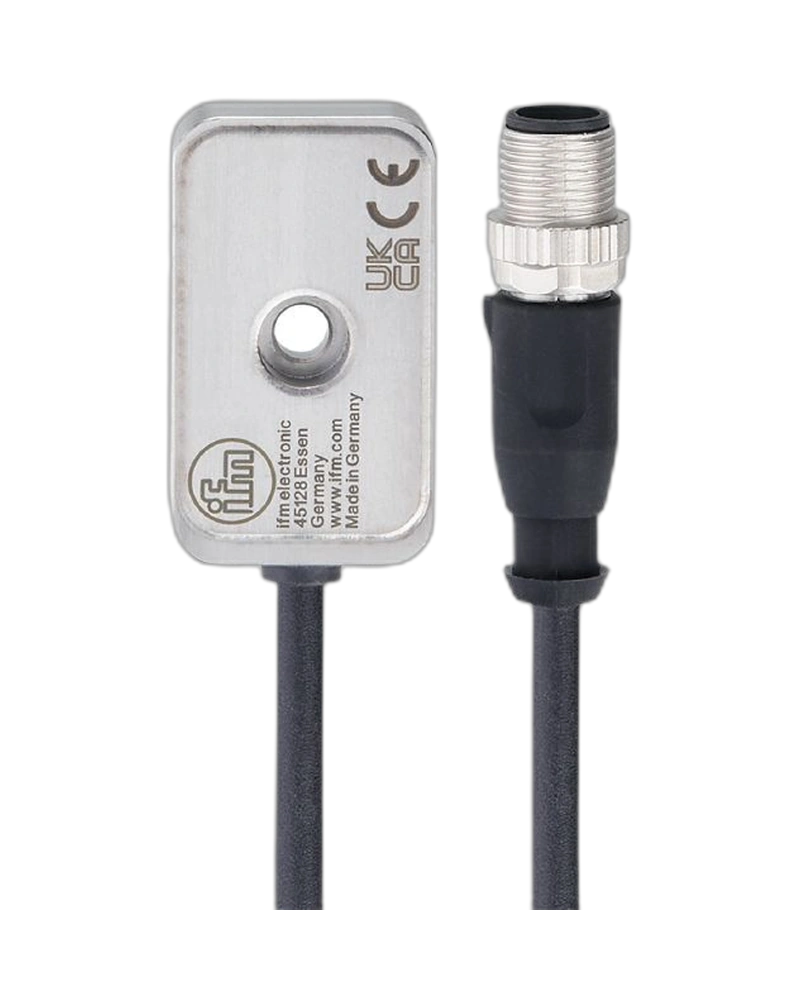

VSM103 is a three-axis MEMS acceleration sensor for industrial vibration diagnostics. It provides a -40…40 g measuring range and 0…4500 Hz frequency range. The sensor uses an IEPE interface and compact stainless-steel housing. Its short 0.3 m PUR cable is terminated with an M12 connector. The sensor is designed for connection to external vibration diagnostic electronics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSM103 detects vibration across three measurement axes. Capacitive MEMS technology provides dynamic machine vibration measurement. The 100 mV/g sensitivity enables detailed signal acquisition. Multi-axis monitoring supports radial and axial machine analysis. It is suitable for predictive maintenance applications.
The sensor uses a compact stainless-steel body. A mounting screw provides mechanical fixation. The sensor has IP67, IP68 and IP69K protection. It withstands industrial vibration and shock conditions. Drag-chain suitability supports applications requiring cable movement.
VSM103 provides IEPE communication to external evaluation electronics. Its 0.3 m PUR cable terminates in a five-pin M12 connector. The cable is shielded to improve signal integrity. A dedicated self-test connection supports diagnostic functionality. This makes the sensor suitable for integrated vibration-monitoring systems.
Three measurement axes
MEMS technology
Capacitive principle
-40…40 g
0…4500 Hz
100 mV/g sensitivity
2% linearity deviation
IEPE interface
5-pin M12 connector
0.3 m PUR cable
Shielded cable
Stainless-steel housing
3.5 Nm tightening torque
IP67/IP68/IP69K
50 g shock resistance
20 g vibration resistance
Self-test connection
100 MΩ insulation resistance
Reverse polarity protection
UL approval
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing monitoring
Machine diagnostics
Condition monitoring
Predictive maintenance
Three-axis vibration analysis
Industrial machinery
| Specification | VSM103 |
|---|---|
| Product type | Acceleration sensor |
| Model | VSM103 |
| Technology | MEMS |
| Principle | Capacitive |
| Measurement axes | 3 |
| Vibration range | -40…40 g |
| Frequency range | 0…4500 Hz |
| Sensitivity | 100 mV/g |
| Linearity | 2% |
| Transverse sensitivity | ≤5% |
| Bias voltage | 11…16 V DC |
| Operating current | 4…6 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Interface | IEPE |
| Mounting | Mounting screw |
| Tightening torque | 3.5 Nm |
| Housing | Stainless steel |
| Dimensions | 26.2 × 47.3 × 11.6 mm |
| Cable length | 0.3 m |
| Cable type | PUR |
| Cable diameter | 4.9 mm |
| Cable conductors | 5 × 0.14 mm² |
| Connector | M12 A-coded |
| Maximum cable length | 250 m |
| Protection rating | IP67/IP68/IP69K |
| Ambient temperature | -30…85 °C |
| Storage temperature | -30…100 °C |
| Shock resistance | 50 g / 11 ms |
| Vibration resistance | 20 g / 10…3000 Hz |
| Weight | 105.6 g |
| MTTF | 529 years |
