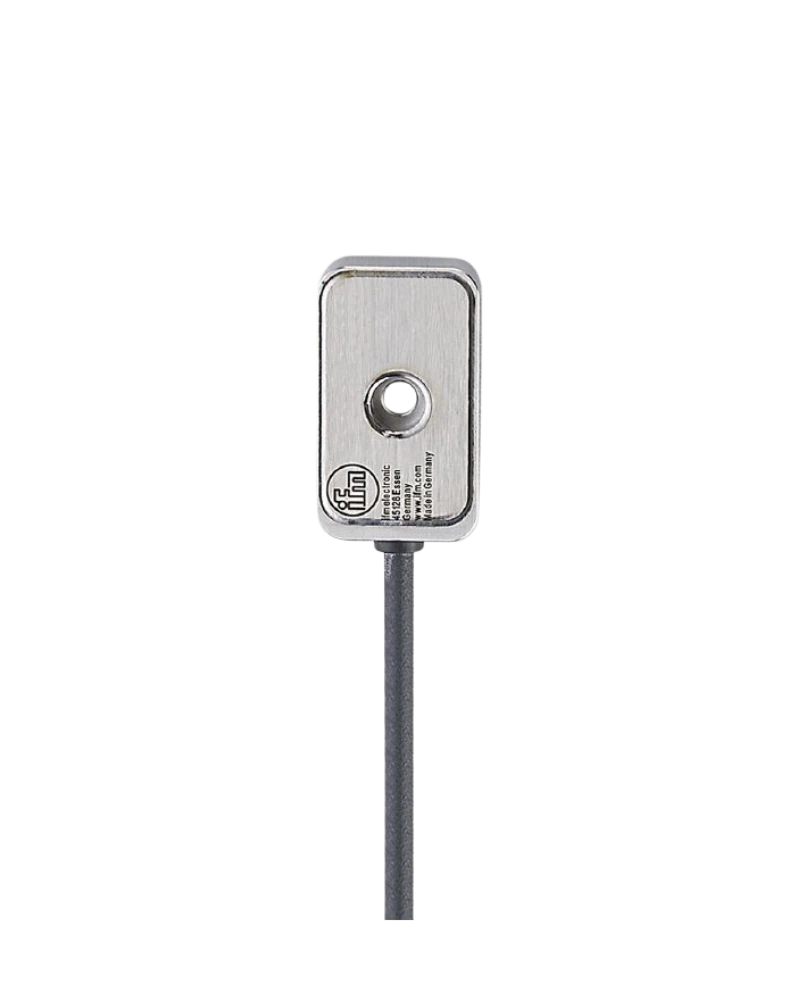

VSM101 is a three-axis MEMS acceleration sensor for industrial vibration measurement. It measures vibration from -40 to +40 g across a frequency range up to 4500 Hz. The sensor uses an IEPE interface for connection to external diagnostic electronics. Its stainless-steel housing provides high environmental and mechanical resistance. Shielded PUR cabling supports industrial installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSM101 measures vibration along three measurement axes. The capacitive MEMS principle provides stable dynamic measurement. Its sensitivity is 100 mV/g. The sensor supports machine vibration analysis in multiple directions. This is useful where radial and axial vibration information is required.
The sensor uses a stainless-steel housing for demanding environments. IP67, IP68 and IP69K protection support harsh installations. The sensor withstands 50 g mechanical shock. Drag-chain suitability supports moving-cable installations. The supplied M5 mounting screw simplifies mechanical installation.
VSM101 communicates using an IEPE signal interface. The sensor operates with 11…16 V bias voltage. Its 3 m PUR shielded cable supports connection to external evaluation electronics. A self-test line enables functional checking through compatible diagnostic electronics. This makes the sensor suitable for predictive-maintenance systems.
Three measurement axes
MEMS technology
Capacitive measurement principle
-40…40 g range
0…4500 Hz frequency range
100 mV/g sensitivity
5% maximum transverse sensitivity
2% linearity deviation
IEPE interface
11…16 V bias voltage
4…6 mA operating current
100 MΩ insulation resistance
Reverse polarity protection
IP67/IP68/IP69K
316L/444 stainless-steel housing
3 m PUR cable
Shielded cable
Drag-chain suitable
M5 × 12 mm screw supplied
Self-test connection
Motor vibration monitoring
Pump vibration monitoring
Fan monitoring
Gearbox monitoring
Bearing diagnostics
Machine condition monitoring
Predictive maintenance
Rotating machinery
Industrial vibration analysis
Three-axis machine diagnostics
| Specification | VSM101 |
|---|---|
| Product type | Acceleration sensor |
| Model | VSM101 |
| Sensor technology | MEMS |
| Measuring principle | Capacitive |
| Measurement axes | 3 |
| Vibration range | -40…40 g |
| Frequency range | 0…4500 Hz |
| Sensitivity | 100 mV/g |
| Linearity deviation | 2% |
| Transverse sensitivity | ≤5% |
| Accuracy | ±10% up to 3 kHz |
| High-frequency accuracy | 3 dB at 3…4.5 kHz |
| Bias voltage | 11…16 V DC |
| Operating current | 4…6 mA |
| Insulation resistance | ≥100 MΩ |
| Protection class | III |
| Reverse polarity | Yes |
| Communication | IEPE |
| Mounting | Mounting screw |
| Housing | Stainless steel |
| Housing material | 316L/444 |
| Dimensions | 26.2 × 47.3 × 11.6 mm |
| Tightening torque | 3.5 Nm |
| Cable | 3 m PUR |
| Cable diameter | 4.9 mm |
| Cable conductors | 5 × 0.14 mm² |
| Cable shielding | Yes |
| Maximum cable length | 250 m |
| Protection rating | IP67/IP68/IP69K |
| Ambient temperature | -30…85 °C |
| Storage temperature | -30…100 °C |
| Shock resistance | 50 g / 11 ms |
| Vibration resistance | 20 g / 10…3000 Hz |
| MTTF | 529 years |
| Weight | 187.2 g |
