VSE953 is decentralised diagnostic electronics for continuous vibration monitoring. It provides four dynamic sensor inputs and additional process-value inputs. Modbus TCP communication supports industrial network integration. IP67 protection enables installation close to machinery. The unit combines vibration diagnostics with machine process monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Four dynamic inputs support simultaneous vibration sensor connection. Signals include 0…10 mA, IEPE and 4…20 mA. Dynamic processing provides 16-bit resolution. The sampling rate is 100 kSamples/s. This supports detailed analysis of rotating-machine vibration.
VSE953 supports Modbus TCP communication through Ethernet. The interface operates at 10/100 Mbit/s. M12 network connections provide robust field connectivity. TCP/IP configuration is available through the Ethernet interface. The controller integrates with industrial data networks.

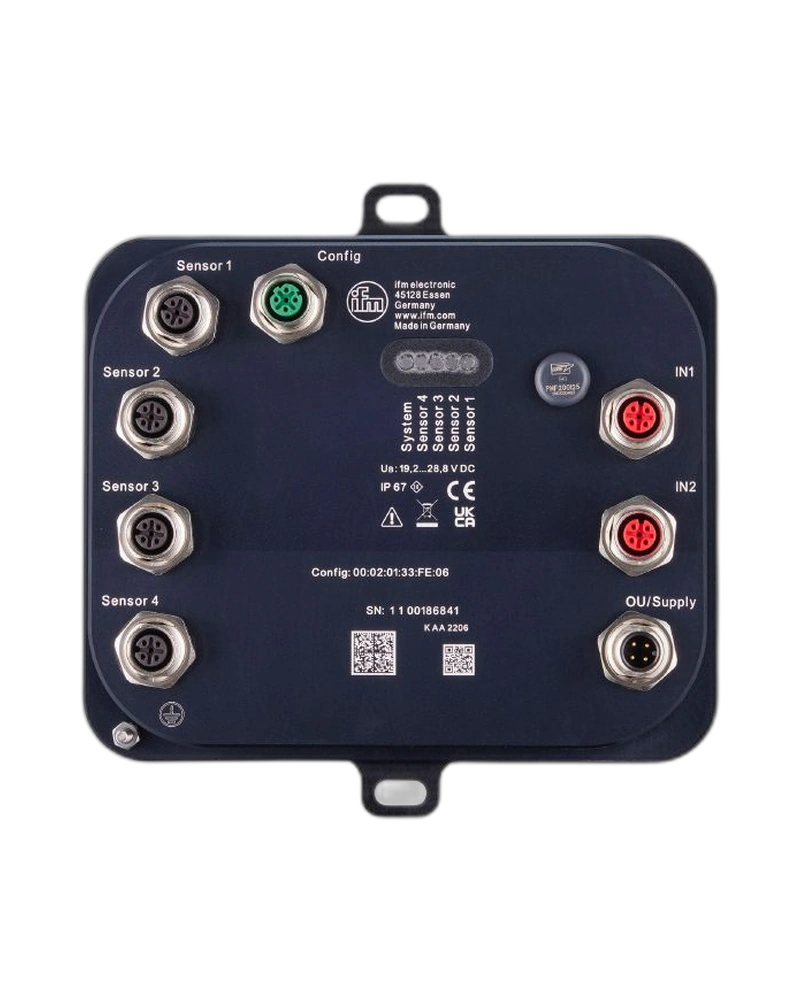

The IP67 housing is designed for decentralised installation. Four M12 sensor connections reduce complex field wiring. Internal history memory supports long-term data storage. Real-time clock functionality provides time-based records. VES004 provides configuration and diagnostic management.
Four dynamic inputs
Modbus TCP
16-bit dynamic resolution
100 kSamples/s sampling
0.1…12000 Hz range
IEPE support
0…10 mA support
4…20 mA support
Two process inputs
Two configurable digital outputs
One analogue output
PNP outputs
M12 sensor connections
IP67 protection
Internal history memory
Real-time clock
Ring/FIFO memory
VES004 support
Ethernet 10/100 Mbit/s
Backplane mounting
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing monitoring
Unbalance monitoring
Predictive maintenance
Machine diagnostics
Industrial Ethernet
Decentralised condition monitoring
| Specification | VSE953 |
|---|---|
| Product type | Diagnostic electronics |
| Model | VSE953 |
| Application | Continuous vibration monitoring |
| Communication | Ethernet |
| Protocol | Modbus TCP |
| Operating voltage | 24 V DC |
| Voltage tolerance | ±20% |
| Current consumption | 200 mA |
| Protection class | III |
| Total I/O | 8 |
| Total inputs | 6 |
| Dynamic inputs | 4 |
| Dynamic signal | 0…10 mA / IEPE / 4…20 mA |
| Dynamic resolution | 16 bit |
| Frequency range | 0.1…12000 Hz |
| Sampling | 100 kSamples/s |
| Process inputs | 2 |
| Pulse frequency | 0.1…100000 Hz |
| Analogue input | 4…20 mA |
| Analogue resolution | 12 bit |
| Digital outputs | 2 |
| Output design | PNP |
| Output logic | NO/NC configurable |
| Analogue output | 4…20 mA |
| Maximum load | 500 Ω |
| Ethernet speed | 10/100 Mbit/s |
| Ethernet connector | M12 |
| Sensor connectors | 4 × M12 |
| Ambient temperature | 0…60 °C |
| Storage temperature | 0…60 °C |
| Protection | IP67 |
| Dimensions | 175 × 172 × 66.6 mm |
| Housing | Black anodised aluminium |
| Weight | 1369.5 g |
| Memory | 881,664 records |
