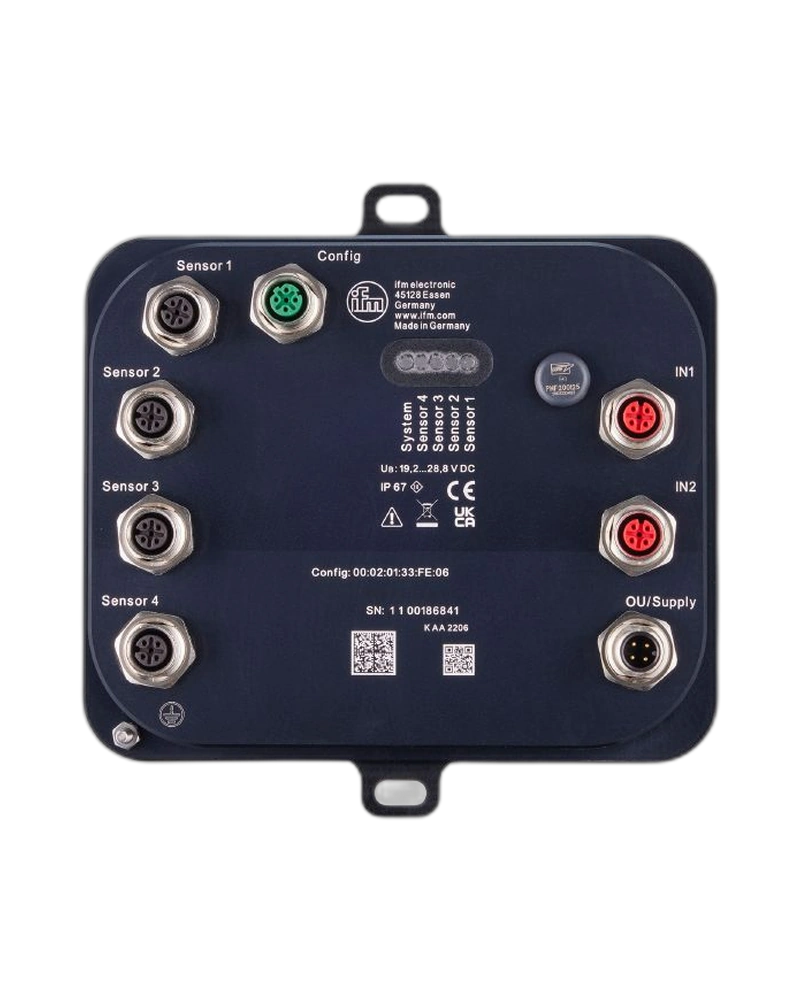

VSE950 is decentralised diagnostic electronics with an IP67 enclosure. It provides four dynamic inputs for simultaneous vibration sensor monitoring. PROFINET connectivity supports integration into industrial Ethernet networks. Standard M12 interfaces simplify machine-side installation. The controller is designed for continuous condition monitoring
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSE950 allows vibration diagnostics to be installed close to machinery. Four dynamic inputs accept vibration sensor signals. Additional process inputs support pulse and 4…20 mA measurements. Two digital outputs and one analogue output support machine integration. This enables centralised diagnostic functions at field level.
VSE950 supports PROFINET IO communication. The Ethernet interface operates at 10/100 Mbit/s. M12 connections support industrial field installation. The controller communicates with automation networks through PROFINET. VES004 provides configuration and parameter management.
The housing provides IP67 protection for decentralised installations. Aluminium construction supports industrial mechanical requirements. The controller includes internal historical data memory. Real-time clock functionality supports time-based machine analysis. This architecture is suited to demanding condition-monitoring systems.
Four dynamic inputs
16-bit dynamic resolution
100 kSamples/s sampling
0.1…12000 Hz frequency range
IEPE support
0…10 mA support
4…20 mA support
Two process inputs
Two configurable digital outputs
One 4…20 mA output
PNP outputs
PROFINET IO
TCP/IP configuration
M12 Ethernet
Four M12 sensor connections
IP67 housing
Internal memory
Real-time clock
Ring/FIFO storage
VES004 support
Field-level vibration monitoring
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing monitoring
Machine diagnostics
Predictive maintenance
Industrial Ethernet systems
Outdoor machinery
| Specification | VSE950 |
|---|---|
| Product type | Diagnostic electronics |
| Model | VSE950 |
| Application | Continuous vibration monitoring |
| Communication | Ethernet |
| Fieldbus | PROFINET IO |
| Operating voltage | 24 V DC |
| Voltage tolerance | ±20% |
| Current consumption | 200 mA |
| Protection class | III |
| Total I/O | 8 |
| Total inputs | 6 |
| Dynamic inputs | 4 |
| Dynamic signal | 0…10 mA / IEPE / 4…20 mA |
| Dynamic resolution | 16 bit |
| Dynamic frequency | 0.1…12000 Hz |
| Sampling | 100 kSamples/s |
| Process inputs | 2 |
| Pulse frequency | 0.1…100000 Hz |
| Pulse circuit | HTL |
| Analogue input | 4…20 mA |
| Analogue resolution | 12 bit |
| Digital outputs | 2 |
| Output design | PNP |
| Output logic | NO/NC configurable |
| Analogue output | 4…20 mA |
| Analogue load | 500 Ω |
| Ethernet speed | 10/100 Mbit/s |
| Ethernet connector | M12 |
| Sensor connectors | 4 × M12 |
| Ambient temperature | 0…60 °C |
| Protection | IP67 |
| Dimensions | 175 × 172 × 66.6 mm |
| Housing | Black anodised aluminium alloy |
| Weight | 1388.2 g |
| Memory | 881,664 records |
