VSE903 is decentralised diagnostic electronics for continuous vibration monitoring. Its IP67 housing supports installation outside conventional control cabinets. Four dynamic sensor inputs support simultaneous vibration acquisition. Ethernet TCP/IP communication enables network-based diagnostics. Standard M12 connections simplify field installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSE903 brings vibration diagnostics closer to the machine. Four dynamic inputs accept signals from vibration sensors. Additional process inputs support pulse and 4…20 mA signals. The controller can operate in demanding industrial environments. Its IP67 housing supports decentralised installation.
Dynamic inputs support 0…10 mA, IEPE and 4…20 mA signals. The dynamic measurement path provides 16-bit resolution. Sampling reaches 100 kSamples/s. Two process inputs support additional machine information. This enables combined vibration and process monitoring.
VSE903 provides Ethernet communication using TCP/IP. M12 connections provide robust field-level connectivity. The unit can communicate with higher-level diagnostic systems. VES004 is used for parameter setting. Historical data is retained internally.
Four dynamic inputs
16-bit dynamic resolution
100 kSamples/s sampling
0.1…12000 Hz dynamic range
IEPE support
0…10 mA support
4…20 mA support
Two process inputs
HTL pulse input
12-bit analogue input
Two configurable outputs
4…20 mA analogue output
PNP outputs
Ethernet TCP/IP
M12 Ethernet connections
IP67 housing
Internal history memory
Real-time clock
FIFO/ring memory
VES004 configuration
Decentralised vibration monitoring
Motor monitoring
Pump monitoring
Fan monitoring
Bearing monitoring
Gearbox monitoring
Machine condition monitoring
Predictive maintenance
Outdoor industrial installations
Production equipment monitoring

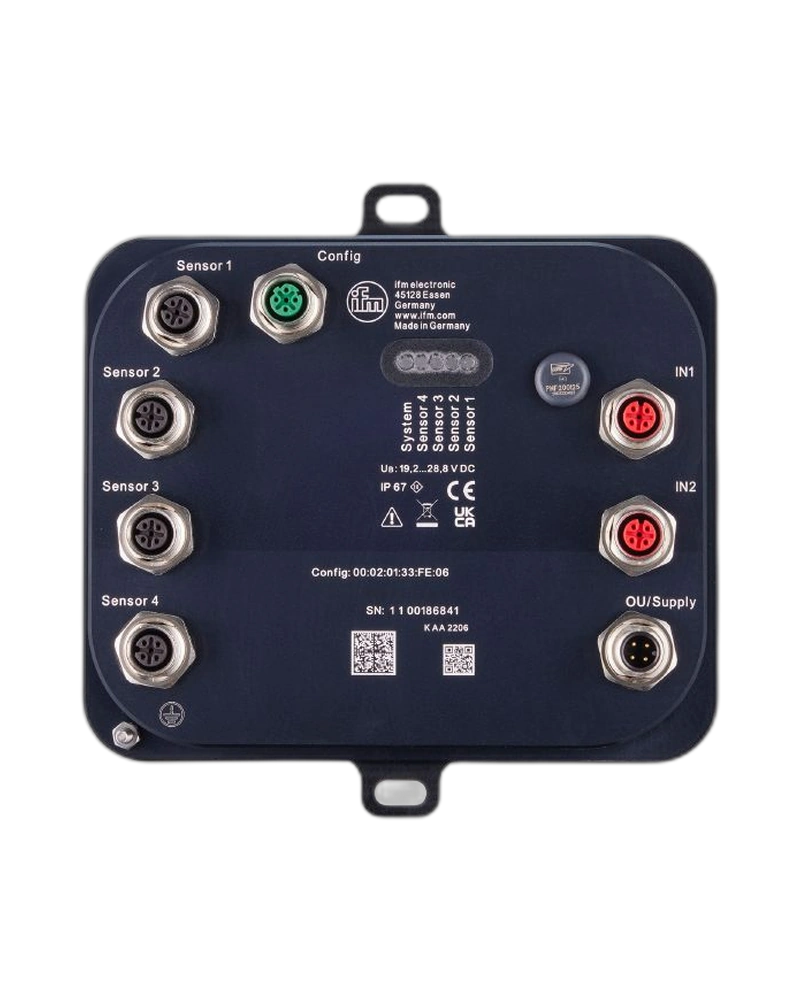

VSE903 uses M12 connections for sensor and network wiring. Four M12 sensor ports support direct vibration sensor connections. Additional M12 ports support process signals. The IP67 enclosure is suitable for decentralised installation. This can reduce cabinet wiring requirements.
The unit includes internal historical data memory. Buffered storage helps retain measurement information. Ring/FIFO operation supports continuous data handling. A real-time clock supports time-based analysis. VES004 provides system configuration and diagnostics.
| Specification | VSE903 |
|---|---|
| Product type | Diagnostic electronics |
| Model | VSE903 |
| Application | Continuous vibration monitoring |
| Communication | Ethernet |
| Protocol | TCP/IP |
| Operating voltage | 24 V DC |
| Voltage tolerance | ±20% |
| Current consumption | 200 mA |
| Protection class | III |
| Total I/O | 8 |
| Total inputs | 6 |
| Dynamic inputs | 4 |
| Dynamic connection | S1…S4 |
| Dynamic signal | 0…10 mA / IEPE / 4…20 mA |
| Dynamic resolution | 16 bit |
| Frequency range | 0.1…12000 Hz |
| Sampling rate | 100 kSamples/s |
| Process inputs | 2 |
| Pulse input | HTL |
| Pulse frequency | 0.1…100000 Hz |
| Analogue input | 4…20 mA |
| Analogue resolution | 12 bit |
| Digital outputs | 2 |
| Output design | PNP |
| Output function | NO/NC configurable |
| Analogue output | 4…20 mA |
| Maximum load | 500 Ω |
| Ethernet speed | 10/100 Mbit/s |
| Ethernet connector | M12 |
| Sensor connectors | 4 × M12 |
| Ambient temperature | 0…60 °C |
| Protection rating | IP67 |
| Dimensions | 175 × 172 × 66.6 mm |
| Housing | Black anodised aluminium alloy |
| Weight | 1296.7 g |
| Memory | 881,664 records |
