Vibration Monitoring

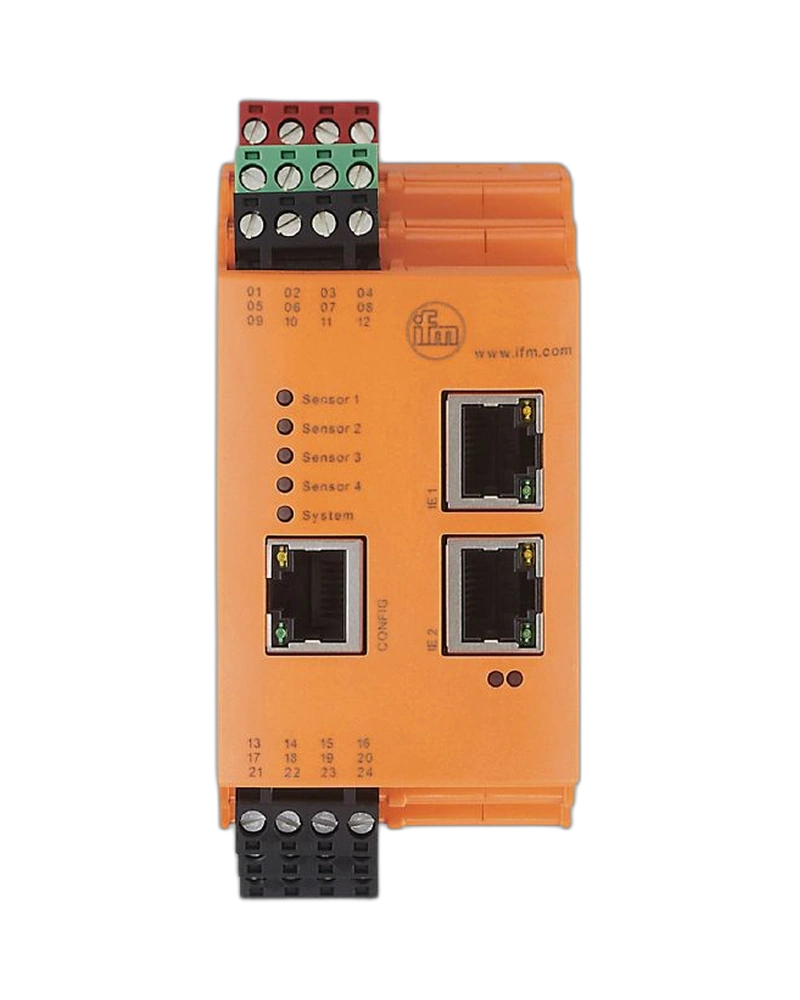

VSE153 receives signals from four connected vibration sensors. Dynamic inputs support current and IEPE-based signal types. The 16-bit dynamic measurement path provides detailed vibration analysis. High-speed sampling supports frequency-domain and time-domain diagnostic tasks. This enables condition-based monitoring of rotating equipment.

Process Inputs and Outputs

Two process-value inputs provide additional measurement capability. Pulse and 4…20 mA signals can be monitored together with vibration data. Two configurable digital outputs support alarm handling. One output can also provide a 4…20 mA analogue signal. This makes the unit suitable for integrated machine monitoring.

Modbus TCP Integration

VSE153 provides Ethernet communication with Modbus TCP. The Ethernet interface supports 10/100 Mbit/s transmission. TCP/IP configuration is available through the Ethernet interface. VES004 provides device configuration and parameter management. Internal memory supports historical vibration records.

Key Features

Four dynamic inputs

IEPE input support

0…10 mA dynamic input

4…20 mA dynamic input

16-bit resolution

100 kSamples/s sampling

0.1…12000 Hz frequency range

Two process inputs

HTL pulse input

12-bit analogue input

Two digital outputs

One analogue output

PNP outputs

4…20 mA analogue output

Modbus TCP

TCP/IP

RJ45 interface

DIN rail mounting

Internal history memory

Real-time clock

Applications

Condition monitoring

Motor monitoring

Pump monitoring

Fan monitoring

Bearing monitoring

Gearbox monitoring

Unbalance detection

Predictive maintenance

Industrial automation

Machine diagnostics

Alarm Management

VSE153 provides configurable switching outputs for machine alarms. Output logic can be selected as normally open or normally closed. The analogue output provides continuous measurement transmission. This allows connection to PLC and plant monitoring systems. Alarm signals can be used for maintenance intervention.

Historical Data

Internal memory stores historical machine measurements. Ring/FIFO memory supports continuous data management. The real-time clock maintains time-based diagnostic records. VES004 provides parameterisation and system configuration. This supports long-term condition monitoring and fault analysis.
