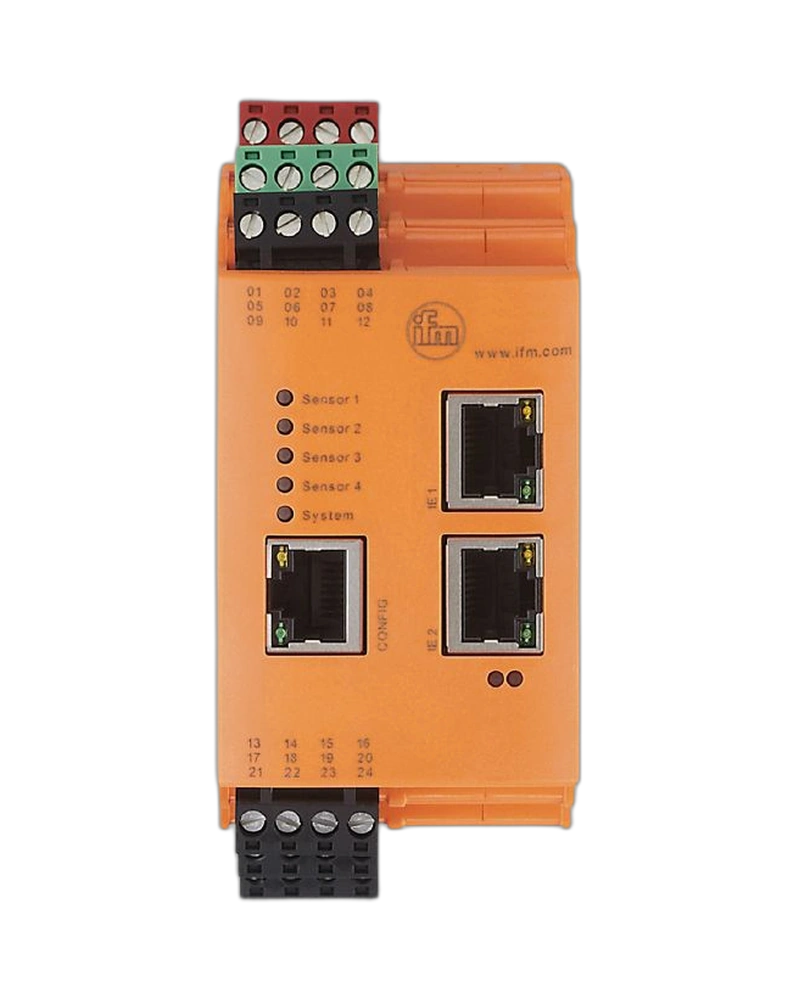

VSE152 is a DIN-rail vibration diagnostic controller for continuous machine monitoring. Four dynamic inputs support simultaneous connection of vibration sensors. The controller processes dynamic, analogue and pulse-based machine information. EtherCAT communication provides high-speed industrial network integration. VES004 software supports parameterisation and vibration-system configuration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The four sensor inputs accept 0…10 mA, IEPE and 4…20 mA signals. Dynamic processing operates with 16-bit resolution. The sampling rate reaches 100 kSamples/s. The 0.1…12000 Hz range supports detailed vibration analysis. This makes the controller suitable for rotating machinery condition monitoring.
Two process-value inputs supplement the dynamic sensor signals. One input can receive pulse information through HTL circuitry. Another input accepts 4…20 mA process signals. Outputs can provide switching and analogue information. This allows vibration and process data to be combined.
VSE152 includes Ethernet connectivity with EtherCAT support. Communication operates through 100 Mbit/s Ethernet. TCP/IP configuration is also available. The controller supports industrial network integration through standard Ethernet infrastructure. Internal memory supports historical condition data.
Four dynamic inputs
IEPE compatibility
0…10 mA input
4…20 mA input
16-bit dynamic resolution
100 kSamples/s sampling
0.1…12000 Hz frequency range
Two process inputs
HTL pulse input
12-bit analogue input
Two configurable outputs
PNP outputs
4…20 mA analogue output
EtherCAT interface
TCP/IP configuration
RJ45 Ethernet
DIN rail mounting
Internal memory
Real-time clock
VES004 compatibility
Rotating machinery monitoring
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing diagnostics
Unbalance monitoring
Predictive maintenance
Industrial automation
Machine health monitoring
VSE152 provides configurable switching outputs for alarm handling. The outputs can operate as normally open or normally closed. The analogue output provides continuous 4…20 mA information. This supports PLC-based machine control. Alarm information can be integrated into automated maintenance strategies.
The internal memory stores historical measurement information. Ring/FIFO memory supports continuous recording. A real-time clock associates measurements with time information. VES004 allows engineers to configure monitoring functions. Historical information helps identify developing machine faults.
| Specification | VSE152 |
|---|---|
| Product type | Diagnostic electronics |
| Manufacturer | ifm electronic |
| Model | VSE152 |
| Application | Continuous vibration monitoring |
| Software | VES004 |
| Mounting | DIN rail TH35 |
| Operating voltage | 24 V DC |
| Voltage tolerance | ±20% |
| Current consumption | 200 mA |
| Protection class | III |
| Total I/O | 8 configurable |
| Dynamic inputs | 4 |
| Dynamic connection | S1…S4 |
| Dynamic signal | 0…10 mA / IEPE / 4…20 mA |
| Dynamic resolution | 16 bit |
| Frequency range | 0.1…12000 Hz |
| Sampling | 100 kSamples/s |
| Process inputs | 2 |
| Pulse frequency | 0.1…100000 Hz |
| Pulse circuit | HTL |
| Analogue input | 4…20 mA |
| Analogue resolution | 12 bit |
| Digital outputs | 2 |
| Output design | PNP |
| Output function | NO/NC configurable |
| Analogue output | 4…20 mA |
| Maximum load | 500 Ω |
| Ethernet | 10/100 Mbit/s |
| Fieldbus | EtherCAT |
| Configuration protocol | TCP/IP |
| Connector | RJ45 |
| Ambient temperature | 0…60 °C |
| Protection rating | IP20 |
| Dimensions | 114.2 × 50 × 105.3 mm |
| Housing | PA |
| Weight | 413.2 g |
| History memory | 881,664 records |
