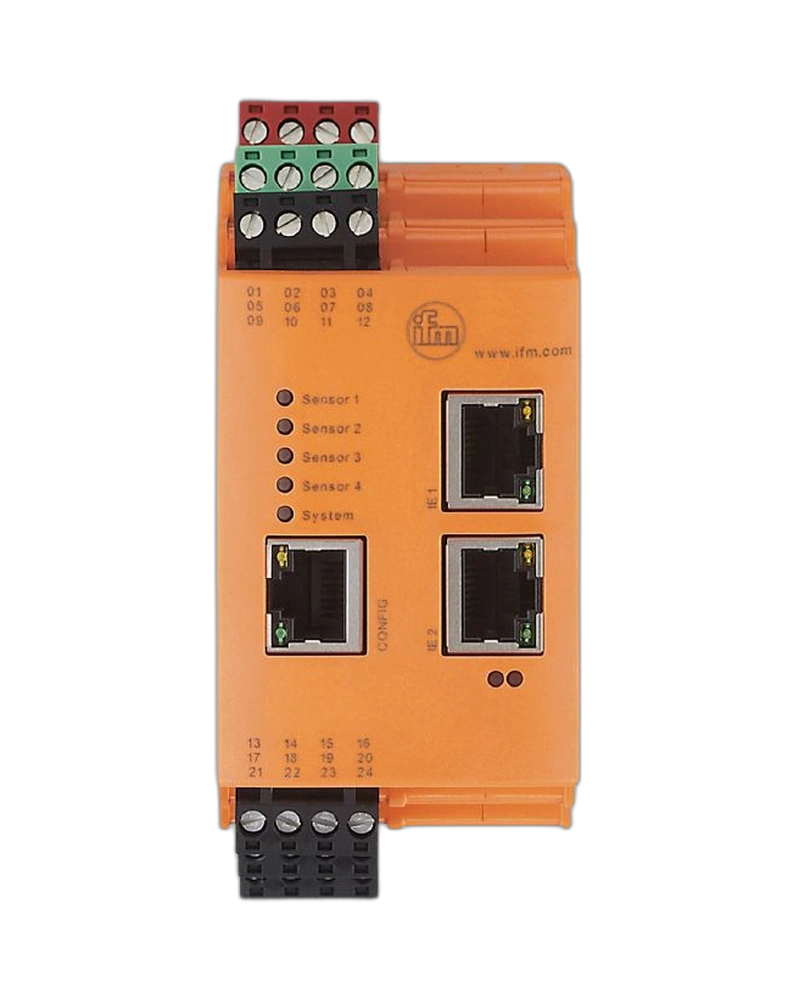

VSE150 is a DIN-rail diagnostic controller for machine vibration monitoring. It provides four dynamic inputs for simultaneous vibration sensor connection. The unit supports analogue process inputs and configurable switching outputs. PROFINET communication enables direct integration into industrial automation networks. It is designed for condition-based maintenance of rotating machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
VSE150 processes vibration information from up to four connected sensors. It can support monitoring of unbalance, bearing condition and gear condition. High-speed dynamic acquisition provides detailed vibration information. Process inputs allow additional machine variables to be monitored. This creates a central platform for machine condition assessment.
The four dynamic inputs accept 0…10 mA, IEPE and 4…20 mA signals. Dynamic processing provides 16-bit resolution and 100 kSamples/s sampling. Two additional process-value inputs provide pulse and 4…20 mA measurement capability. The controller can therefore combine dynamic and static machine data. This architecture supports comprehensive machine monitoring.
VSE150 communicates through Ethernet and PROFINET. The interface supports 10/100 Mbit/s Ethernet communication. PROFINET provides industrial network integration with automation controllers. Parameterisation is performed through VES004 software. Internal history storage supports long-term condition monitoring.
Four dynamic sensor inputs
Two process-value inputs
Two configurable digital outputs
One configurable analogue output
16-bit dynamic signal resolution
100 kSamples/s sampling
0.1…12000 Hz dynamic frequency range
IEPE sensor support
4…20 mA process input
PNP outputs
NO/NC configurable outputs
500 Ω maximum analogue load
Ethernet communication
PROFINET communication
RJ45 Ethernet connection
DIN-rail mounting
Internal history memory
Real-time clock
Ring/FIFO memory
VES004 parameterisation
Motor condition monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Bearing monitoring
Unbalance monitoring
Rotating equipment monitoring
Predictive maintenance
Production machinery
Industrial automation
Condition-based maintenance
Two switching outputs can be configured for machine alarms. Output functions can be configured as normally open or normally closed. The outputs can be used to interface with automation control systems. Analogue output provides continuous measurement transmission. This supports both alarm-based and continuous monitoring strategies.
VSE150 supports maintenance decisions based on actual machine condition. Historical records help identify changes in vibration behaviour. PROFINET allows diagnostic information to reach automation infrastructure. VES004 provides configuration and visualisation capabilities. This reduces dependence on manual inspection routines.
| Specification | VSE150 |
|---|---|
| Product type | Diagnostic electronics |
| Manufacturer | ifm electronic |
| Model | VSE150 |
| Application | Continuous vibration monitoring |
| Mounting | DIN rail |
| Software | VES004 |
| Operating voltage | 24 V DC |
| Voltage tolerance | ±20% |
| Current consumption | 200 mA |
| Protection class | III |
| Total I/O | 8 configurable |
| Dynamic inputs | 4 |
| Dynamic connections | S1…S4 |
| Dynamic signal | 0…10 mA / IEPE / 4…20 mA |
| Dynamic resolution | 16 bit |
| Dynamic frequency | 0.1…12000 Hz |
| Sampling rate | 100 kSamples/s |
| Process inputs | 2 |
| Pulse input frequency | 0.1…100000 Hz |
| Analogue input | 4…20 mA |
| Analogue resolution | 12 bit |
| Digital outputs | 2 |
| Output design | PNP |
| Output function | NO/NC configurable |
| Analogue output | 4…20 mA |
| Maximum analogue load | 500 Ω |
| Communication | Ethernet |
| Fieldbus | PROFINET IO |
| Ethernet rate | 10/100 Mbit/s |
| Connector | RJ45 |
| Ambient temperature | 0…60 °C |
| Storage temperature | 0…60 °C |
| Protection rating | IP20 |
| Dimensions | 114.2 × 50 × 105.3 mm |
| Housing | PA |
| Weight | 415.2 g |
| History memory | 881,664 records |
