Continuous Vibration Monitoring

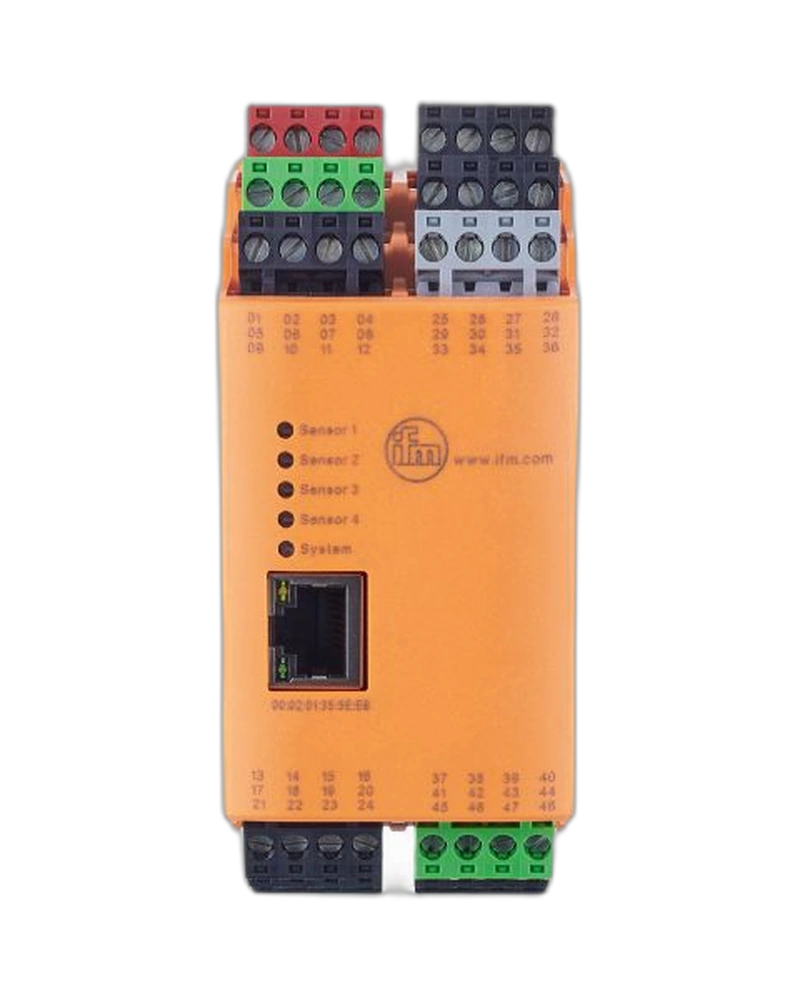

VSE101 continuously evaluates vibration signals from connected sensors. It helps detect machine condition changes before major failures occur. Four dynamic inputs allow simultaneous vibration signal acquisition. The electronics can analyse vibration characteristics for condition-based maintenance. This supports reliable monitoring of rotating industrial equipment.

Sensor Signal Processing

The controller accepts dynamic signals through dedicated sensor inputs. Supported signal types include 0…10 mA, IEPE and 4…20 mA. Dynamic processing provides 16-bit resolution and high-speed sampling. Additional analogue and digital inputs support process-related measurements. This allows vibration data to be evaluated together with machine parameters.

Industrial Communication

VSE101 provides Ethernet communication using TCP/IP. The Ethernet interface supports 10Base-T and 100Base-TX transmission. RJ45 connectivity simplifies connection to industrial networks and computers. Internal memory supports historical data recording and real-time clock functions. VES004 software is used for parameter setting and system configuration.

Key Features

Four dynamic vibration inputs

Eight configurable digital inputs

Two analogue inputs

Two configurable digital outputs

One configurable analogue output

0…10 mA / IEPE / 4…20 mA dynamic input

16-bit dynamic resolution

100 kSamples/s sampling rate

4…20 mA analogue inputs

0…10 V / 4…20 mA analogue output capability

PNP digital outputs

Normally open / normally closed configurable outputs

Ethernet TCP/IP communication

Internal history memory

Real-time clock

Ring/FIFO data memory

VES004 software compatibility

DIN-rail mounting

24 V DC operation

Applications

Continuous vibration monitoring

Rotating machinery condition monitoring

Bearing condition monitoring

Gear condition monitoring

Unbalance detection

Machine maintenance systems

Predictive maintenance installations

Industrial automation systems

Pump monitoring

Fan monitoring

Motor monitoring

Data Logging and Diagnostics

VSE101 includes internal memory for historical machine information. The memory supports buffered data storage and ring/FIFO operation. A real-time clock provides time-based correlation of stored measurements. VES004 can be used to configure parameters and inspect vibration information. This combination supports structured condition-monitoring workflows.

Industrial Integration

The controller can combine vibration measurements with process information. Digital inputs can handle pulse-based machine signals. Analogue inputs can monitor 4…20 mA process variables. Ethernet TCP/IP provides communication with higher-level systems. This makes VSE101 suitable for integrated machine-monitoring architectures.
