Multi-Sensor Diagnostic Platform

The VSE100 provides four dynamic inputs for vibration sensors. The inputs can be used with compatible VSA, IEPE and analogue signals. Eight additional multifunction I/O channels provide flexible digital system integration. This allows the unit to handle vibration data together with machine-control signals. The architecture is suitable for larger condition-monitoring systems.

Flexible I/O

The VSE100 provides eight configurable digital I/O channels. These channels use PNP output technology and can be configured for normally open or normally closed functions. Additional analogue and dynamic signal inputs extend the unit's monitoring capability. The flexible I/O arrangement allows alarm, control and process signals to be integrated. This reduces the need for additional interface hardware.

Data and Networking

Ethernet communication allows the VSE100 to connect to PC software and higher-level systems. VES004 is used for parameter setting and monitoring-system configuration. Internal history and buffered data memory support long-term trend recording. The real-time clock provides time references for stored measurements. This makes the VSE100 suitable for continuous predictive-maintenance applications.

Key Features

Diagnostic electronics

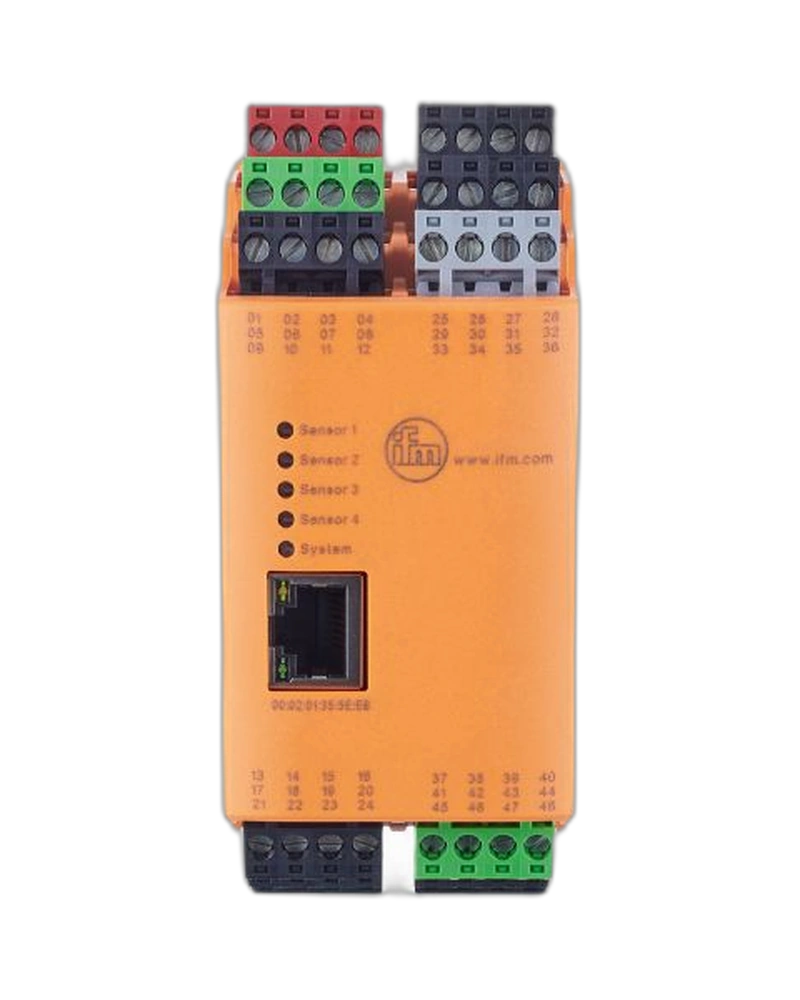

VSE100

Continuous vibration monitoring

4 dynamic inputs

VSA sensor compatibility

IEPE compatibility

4 dynamic channels

8 multifunction digital I/O

PNP digital outputs

Normally open/closed configurable

Analogue process inputs

Pulse input capability

Analogue output capability

24 V DC supply

20% voltage tolerance

Ethernet TCP/IP

RJ45 interface

VES004 configuration

DIN-rail mounting

IP20 protection

Internal history memory

Buffered data memory

Real-time clock

881,664 data records

Applications

Central vibration monitoring

Machine condition monitoring

Predictive maintenance

Motor monitoring

Pump monitoring

Fan monitoring

Gearbox diagnostics

Multi-machine monitoring

Industrial automation

Process monitoring

Centralised Condition Monitoring

The VSE100 can collect vibration signals from multiple sensors in one diagnostic platform. Four dynamic inputs provide simultaneous vibration acquisition. Additional multifunction I/O channels allow machine-control signals to be integrated. This enables vibration data to be combined with machine operating conditions. The architecture is suitable for larger industrial monitoring systems.

Scalable Automation Integration

Ethernet communication allows the VSE100 to exchange information with connected systems. VES004 provides parameterisation and monitoring configuration. Internal data memory supports historical trend analysis. The flexible I/O architecture allows alarms and process signals to be connected directly. This provides a scalable foundation for predictive-maintenance applications.
