Four-Channel Vibration Monitoring

The VSE003 provides four dynamic inputs for simultaneous vibration-sensor connection. These inputs support 0–10 mA, IEPE and 4–20 mA signals. The dynamic inputs use 16-bit resolution and support frequencies up to 12,000 Hz. This allows several machine vibration points to be monitored by one device. The architecture is suitable for condition monitoring of motors, bearings and gears.

Process and Alarm Inputs

Two analogue inputs accept 4–20 mA process signals. Pulse/HTL signals can also be used for suitable speed or trigger applications. Two configurable PNP outputs provide normally open or normally closed alarm functions. One output can be configured as a 4–20 mA analogue output. This allows vibration and process information to be integrated into automation systems.

Ethernet and Data Memory

The VSE003 communicates through Ethernet using TCP/IP. The default Ethernet interface supports 10Base-T and 100Base-TX. Internal history memory and buffered data memory provide long-term data storage. A real-time clock supplies timing information for recorded data. This makes the VSE003 suitable for networked predictive-maintenance applications.

Key Features

Diagnostic electronics

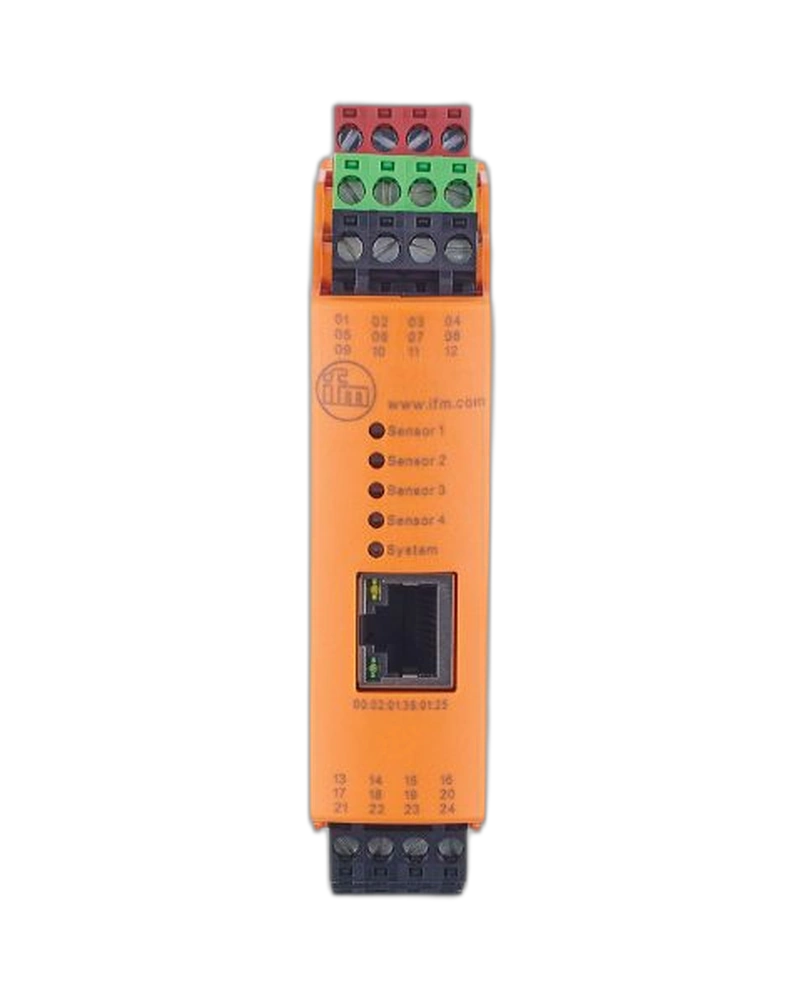

VSE003

Continuous vibration monitoring

4 dynamic inputs

2 analogue inputs

2 configurable digital outputs

1 configurable analogue output

0–10 mA dynamic input

IEPE input

4–20 mA input

16-bit dynamic resolution

0.1…12,000 Hz frequency range

100 kSamples/s sampling

PNP outputs

NO/NC configurable

4–20 mA analogue output

Ethernet communication

10/100 Mbit Ethernet

TCP/IP

RJ45 connector

DIN-rail mounting

IP20 protection

Internal history memory

881,664 data records

Real-time clock

Applications

Vibration monitoring

Machine condition monitoring

Bearing monitoring

Gear monitoring

Motor diagnostics

Pump monitoring

Predictive maintenance

Process monitoring

Industrial automation

Continuous machine diagnostics

Multi-Point Diagnostics

The four dynamic inputs allow several vibration sensors to be monitored simultaneously. This supports machine-level condition monitoring without requiring a separate diagnostic controller for each sensor. Dynamic signals can be analysed for vibration characteristics. The system can also combine vibration signals with process or speed information. This provides a broader view of machine condition.

Predictive Maintenance

The VSE003 supports monitoring tasks for vibration and process values. Historical data can be stored internally for trend evaluation. Ethernet communication allows the diagnostic unit to exchange data with higher-level systems. Alarm outputs provide immediate notification of monitored conditions. These functions support condition-based maintenance strategies.
