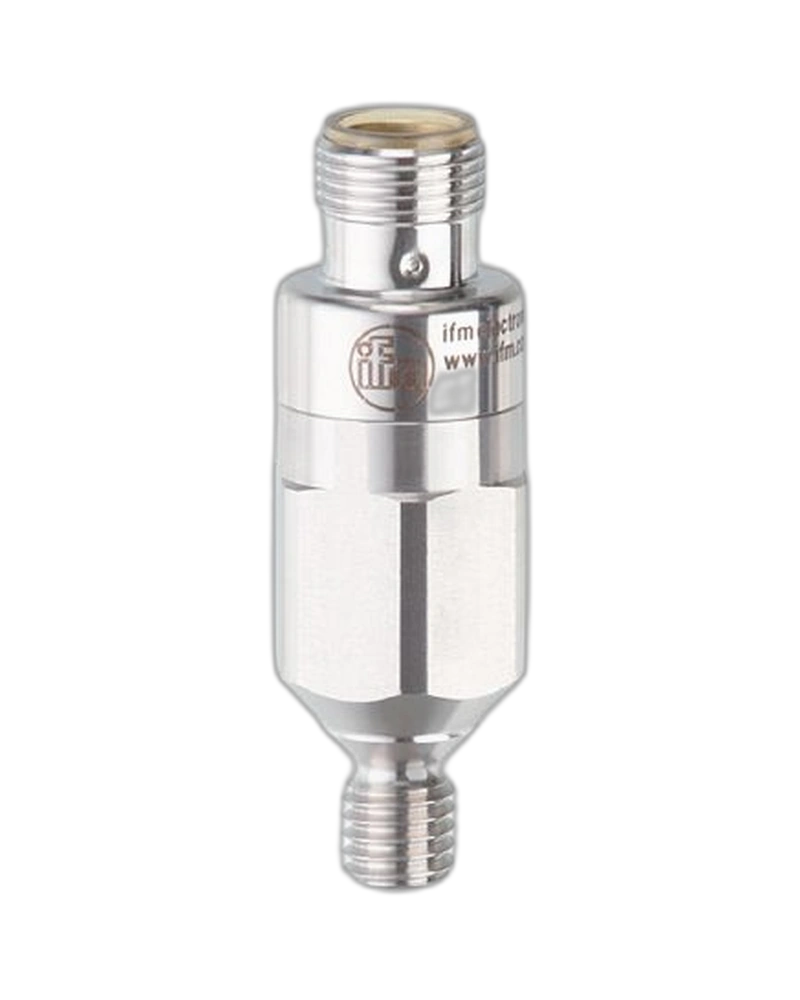

The IFM VSA001 is a single-axis MEMS acceleration sensor for vibration detection. It measures vibration from -25 to +25 g across a 1–6,000 Hz frequency range. The sensor provides a 0–10 mA analogue output with a maximum load of 300 Ω. Its stainless-steel housing uses an M8 × 1.25 mounting arrangement and operates from 7.2 to 10.8 V DC. IP67/IP68/IP69K protection makes it suitable for demanding machine-condition monitoring environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The VSA001 uses a capacitive MEMS sensing principle. Its ±25 g range provides vibration measurement for machinery and equipment. The 1–6,000 Hz frequency range covers a broad range of mechanical vibration behaviour. The sensor provides one measurement axis. This makes it suitable for single-axis machine vibration monitoring.
The sensor provides a 0–10 mA analogue current output. The maximum output load is 300 Ω. This output can be connected to compatible IFM vibration diagnostic electronics. The sensor operates from a low-voltage 7.2–10.8 V DC supply. This arrangement provides a direct analogue representation of measured acceleration.
The VSA001 uses a stainless-steel 316L/1.4404 housing. Its M8 × 1.25 mounting interface provides secure mechanical installation. The sensor is rated IP67, IP68 and IP69K. It operates from -30 to 125°C, with cULus operation below 85°C. The supplied conical washer supports proper mechanical mounting.
Single-axis acceleration sensor
MEMS technology
Capacitive measurement
±25 g measuring range
1…6,000 Hz frequency range
0–10 mA analogue output
300 Ω maximum load
7.2…10.8 V DC supply
<15 mA current consumption
100 MΩ insulation resistance
Reverse-polarity protection
Protection class III
Stainless-steel 316L housing
M8 × 1.25 mounting
8 Nm tightening torque
IP67/IP68/IP69K
-30…125°C ambient range
50 g shock resistance
500 g mechanical overload
M12 A-coded connection
Motor vibration monitoring
Pump monitoring
Fan monitoring
Gearbox diagnostics
Rotating machinery
Machine condition monitoring
Predictive maintenance
Vibration analysis
Industrial automation
VSE diagnostic systems
The 6,000 Hz upper frequency limit allows the VSA001 to detect relatively high-frequency vibration components. The ±25 g range provides a useful measurement window for industrial machinery. The capacitive MEMS principle enables compact sensor construction. Single-axis measurement provides a defined measurement direction. This makes the sensor suitable for targeted vibration analysis.
The 316L stainless-steel housing provides a durable mechanical structure. IP67/IP68/IP69K protection supports harsh industrial environments. The M8 mounting thread provides a secure connection to the machine. The supplied conical washer supports proper mounting. The sensor is designed for connection to external IFM vibration diagnostic electronics.
| Specification | VSA001 Details |
|---|---|
| Product | Acceleration sensor |
| Order number | VSA001 |
| Product designation | VIBRATION SENSOR |
| Sensor technology | MEMS |
| Measuring principle | Capacitive |
| Measurement axes | 1 |
| Vibration range | -25…25 g |
| Frequency range | 1…6,000 Hz |
| Sensitivity | 142 µA/g |
| Linearity deviation | 0.2% |
| Analogue output | 0…10 mA |
| Maximum load | 300 Ω |
| Supply voltage | 7.2…10.8 V DC |
| Current consumption | <15 mA |
| Insulation resistance | 100 MΩ at 500 V DC |
| Protection class | III |
| Reverse-polarity protection | Yes |
| Ambient temperature | -30…125°C |
| cULus temperature | <85°C |
| Storage temperature | -30…125°C |
| Protection | IP67/IP68/IP69K |
| Housing material | Stainless steel 316L |
| Mounting | M8 × 1.25 |
| Tightening torque | 8 Nm |
| Housing dimensions | Ø17 × 53 mm |
| Weight | 50 g |
| Connection | M12 A-coded |
| Supplied accessory | Conical washer |
| Pack quantity | 1 piece |
