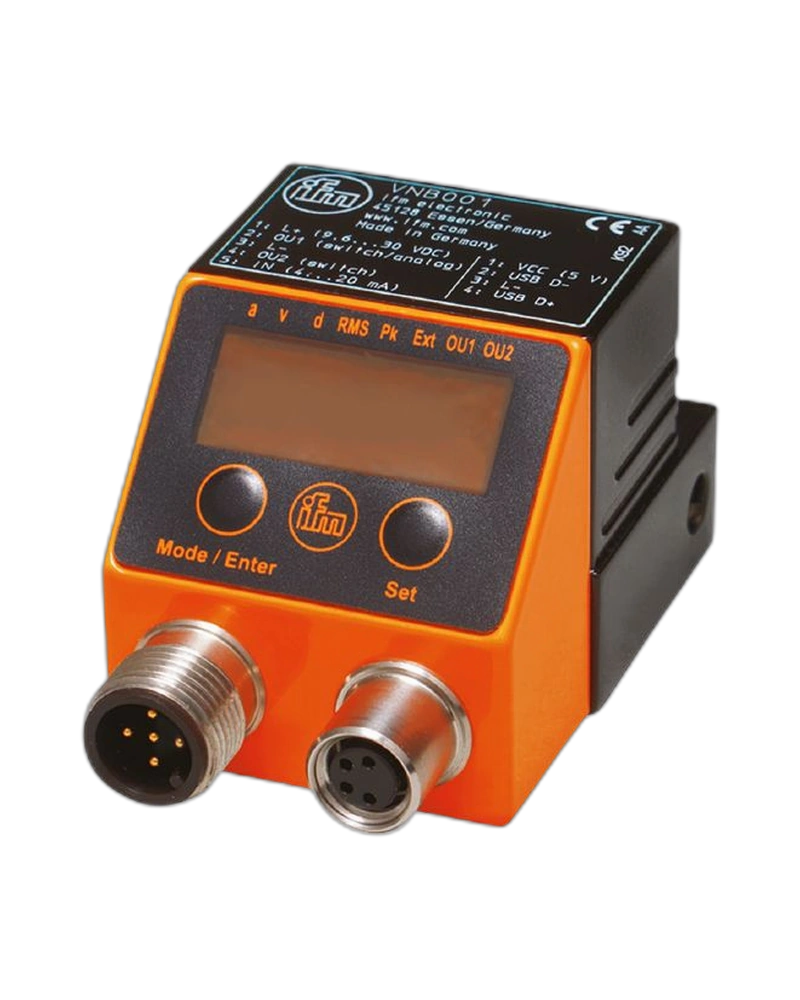

The IFM VNB001 is a vibration sensor designed for direct machine vibration monitoring and condition assessment. It measures vibration velocity from 0 to 500 mm/s depending on vibration frequency and covers 2–1,000 Hz. The device provides two switching outputs and one scalable 4–22 mA analogue output. Its display allows vibration values and alarm states to be viewed directly at the machine. USB communication supports configuration and data access for maintenance and diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The VNB001 uses a capacitive MEMS-based measurement principle. It measures vibration over a range of 0–500 mm/s depending on vibration frequency. The frequency range is 2–1,000 Hz. RMS measurement is used in the factory configuration. This allows the device to provide a direct indication of machine vibration behaviour.
The VNB001 provides two digital outputs for pre-alarm and main-alarm monitoring. The analogue output provides a 4–22 mA signal. The factory pre-alarm point is 2.8 mm/s and the main alarm point is 4.5 mm/s. The output settings can be configured for the application. This provides both local alarm functionality and continuous signal transmission.
The VNB001 provides direct display and recording functionality at the machine. USB communication allows connection to a computer for configuration. It includes self-test and Heartbeat functions for additional diagnostics. IP67 protection supports industrial machine installation. The -30 to 60°C operating range supports a wide range of equipment environments.
Vibration sensor
VNB001
MEMS acceleration technology
Capacitive measurement
0…500 mm/s measurement range
2…1,000 Hz frequency range
RMS measurement
2 digital outputs
1 analogue output
4–22 mA analogue signal
Pre-alarm output
Main-alarm output
USB interface
Self-test function
Heartbeat function
IP67 protection
-30…60°C operating range
-30…85°C storage range
ISO 10816 vibration monitoring
Motor monitoring
Pump monitoring
Fan monitoring
Gearbox monitoring
Machine condition monitoring
Predictive maintenance
Vibration alarms
Rotating equipment
Industrial automation
Maintenance diagnostics
The VNB001 provides vibration information directly at the monitored machine. Its display reduces the need for a separate local measurement instrument. The two alarm outputs allow early and main warning levels to be separated. The analogue output can transmit the vibration value to another control system. This makes the sensor suitable for decentralised condition monitoring.
USB communication provides access for configuration and analysis. Self-test and Heartbeat functions support device health monitoring. The 4–22 mA output can be integrated into automation systems. IP67 protection supports industrial installation. These functions make the VNB001 suitable for preventive and predictive maintenance strategies.
| Specification | VNB001 Details |
|---|---|
| Product | Vibration sensor |
| Order number | VNB001 |
| Product designation | VIBRATION SENSOR |
| Measuring principle | Capacitive |
| Sensor technology | MEMS |
| Vibration range | 0…500 mm/s |
| Frequency range | 2…1,000 Hz |
| Measurement method | RMS |
| Measurement axes | 1 |
| Measuring error | ±3% final value |
| Analogue input | 1 |
| Analogue input signal | 4–20 mA |
| Digital outputs | 2 |
| Analogue outputs | 1 |
| Analogue output | 4–22 mA |
| Pre-alarm factory setting | 2.8 mm/s |
| Main alarm factory setting | 4.5 mm/s |
| Factory frequency range | 10…1,000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Communication | USB |
| Operating voltage | 9.6…30 V DC |
| Current consumption | <70 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Protection rating | IP67 |
| Ambient temperature | -30…60°C |
| Storage temperature | -30…85°C |
| Weight | 227.8 g |
| MTTF | 148 years |
