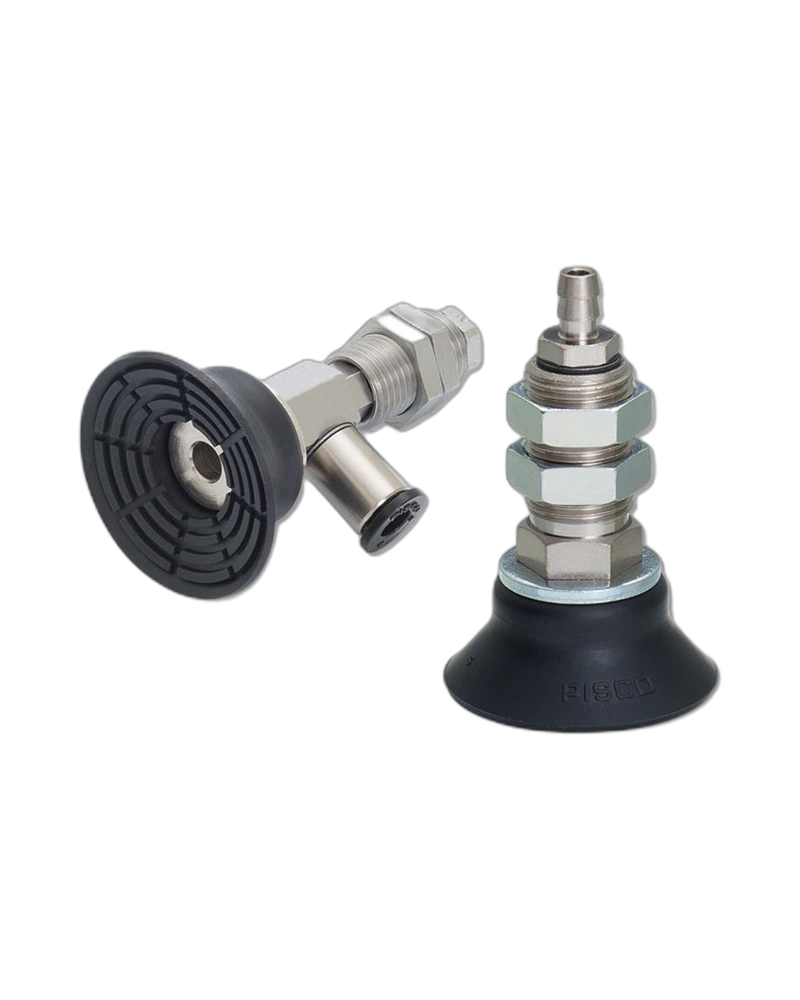

The Vacuum Pad Skidproof Type is designed to securely hold and transport oil-coated components such as press parts without slippage. Its unique pad shape, featuring grooves, prevents skidding during movement, ensuring stability and safety in industrial environments where oily surfaces are common.
Constructed from durable materials including silicone rubber, urethane rubber, or fluoro rubber, the pad is engineered to resist oil degradation. The seal rubber uses either HNBR or FKM with low concentration ozone resistance, and no copper-based metallic material is present in flow paths to ensure compatibility and prevent corrosion in oily environments.
The pad is available in multiple configurations including fixed types with top or side ports (VPA, VPMB, VPB) and spring-type options with top or side ports (VPC, VPMD, VPD), as well as a direct mount option (VPF). Each configuration offers different mounting and connection capabilities to suit specific equipment setups.
The vacuum pad operates effectively under oily conditions due to its oil-proof NBR material, which enhances durability. Spring type holders offer stroke lengths of 6, 10, 15, or 20 mm for conventional long stroke models (VPC/VPD), and 20, 30, 40, or 50 mm for the updated versions (VPOC/VPOD). These stroke options allow precise adjustment to varying load requirements.
Available in a range of pad sizes including φ10, φ20, φ30, φ40, and φ50, with barb fittings designed for tube connections such as φ3×φ2, φ4×φ2.5, or φ6×φ4. Metric female threads (M5×0.8 or M6×1) are also provided to ensure compatibility with standard industrial piping systems.
The vacuum pad holder is designed for direct integration into VPC or VPD systems using a conventional long stroke holder with cover, or as a standalone pad holder with a vacuum pad size of φ1.6 mm when used without the pad. These mounting points are explicitly supported for secure and reliable installation in industrial transport applications.
| Specification | Details |
|---|---|
| Material | Silicone rubber, Urethane rubber, Fluoro rubber |
| Fixed type, Top port | VPA(Standard) |
| Fixed type, Side port | VPMB(Mini)/VPB(Standard) |
| Spring type, Top port | VPC(Standard) |
| Spring type, Side port | VPMD(Mini)/VPD(Standard) |
| Spring type, Direct mount | VPF |
| Pad size | φ10, φ20, φ30, φ40, φ50 |
| Barb fitting (tube O.D. x I.D.) (mm) | φ3×φ2, φ4×φ2.5, φ6×φ4 |
| Metric female thread | M5×0.8, M6×1 |
| Vacuum Pad size | Vacuum Pad I. D.* |
| Without Vacuum Pad (Pad Holder only) | φ1.6 mm |
| Material restriction | We also offer pad holders for applications that require no copper-based metallic material in flow paths and for use in low-concentration ozone environments |
| Stroke | Conventional long stroke holder (with cover) is integrated into VPC or VPD. Stroke:6, 10, 15 and 20mm Conventional long stroke holder (without cover) is renewed as VPOC or VPOD. Stroke:20, 30, 40 and 50mm |
