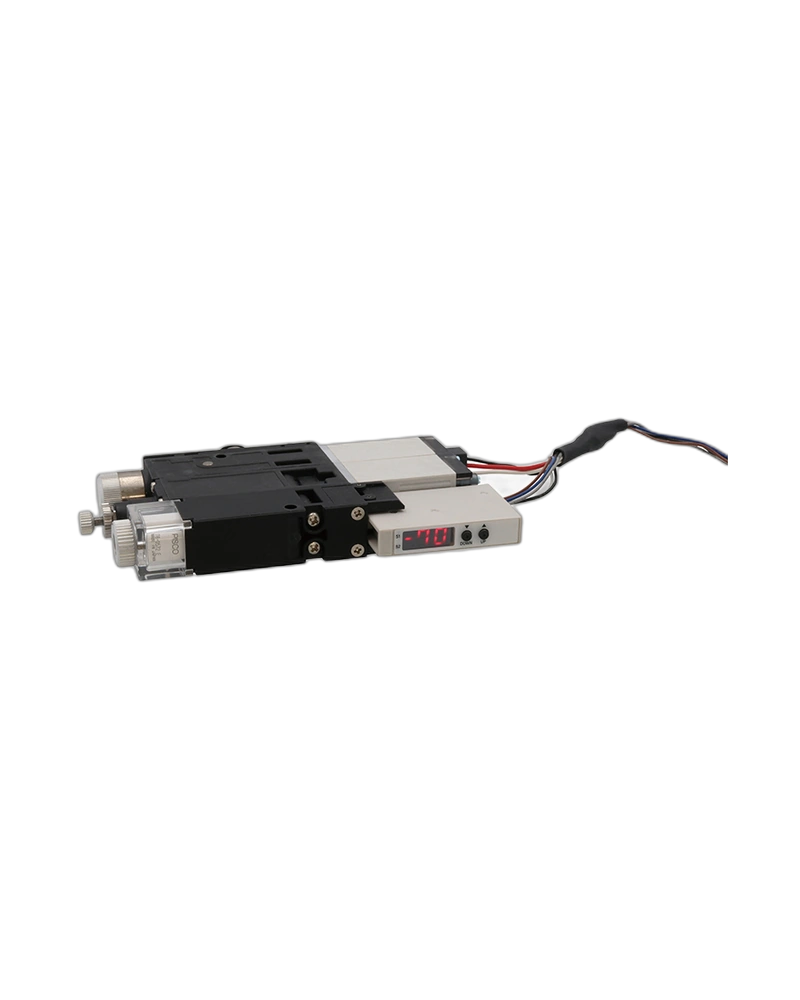

This VK special configuration pairs PISCO's complex vacuum module with an energy-saving pressure-sensing option. The purpose is to retain vacuum detection and control while reducing the energy burden of the sensor electronics where the selected sensor supports that mode.
The underlying VK platform integrates vacuum generation, suction and blow-off valves, a vacuum filter and pressure sensing. The special sensor version changes the sensing configuration while retaining the compact multi-function module architecture.
VK pressure-sensor options include 12 to 24VDC supply variants and model-specific switch or analog outputs. The exact energy-saving sensor electrical values depend on the selected sensor model and must be taken from its configurator entry.
Choose the exact VK model with the energy-saving pressure sensor option and wire it according to the published sensor output configuration. Confirm the pressure-setting range and output type before commissioning.
| Specification | Details |
|---|---|
| Product family | Vacuum Generator Complex Type VK |
| Special configuration | Energy-saving pressure sensor |
| Base solenoid supply | 24 VDC ±10% |
| Sensor supply | Model-specific within the PISCO pressure-sensor option range |
| Vacuum filter | PVFM, 5μm |
| Filter area | 1,130mm² |
| Sensor output | Model-specific switch / analog configuration |
