The Vacuum Pad for Packaging Bag is designed to prevent workpiece drop during conveyance, especially when handling bag-like materials. It provides followability to the work-piece and stabilizes posture throughout movement, ensuring secure positioning and reducing the risk of material shifting or falling off the conveyor system.

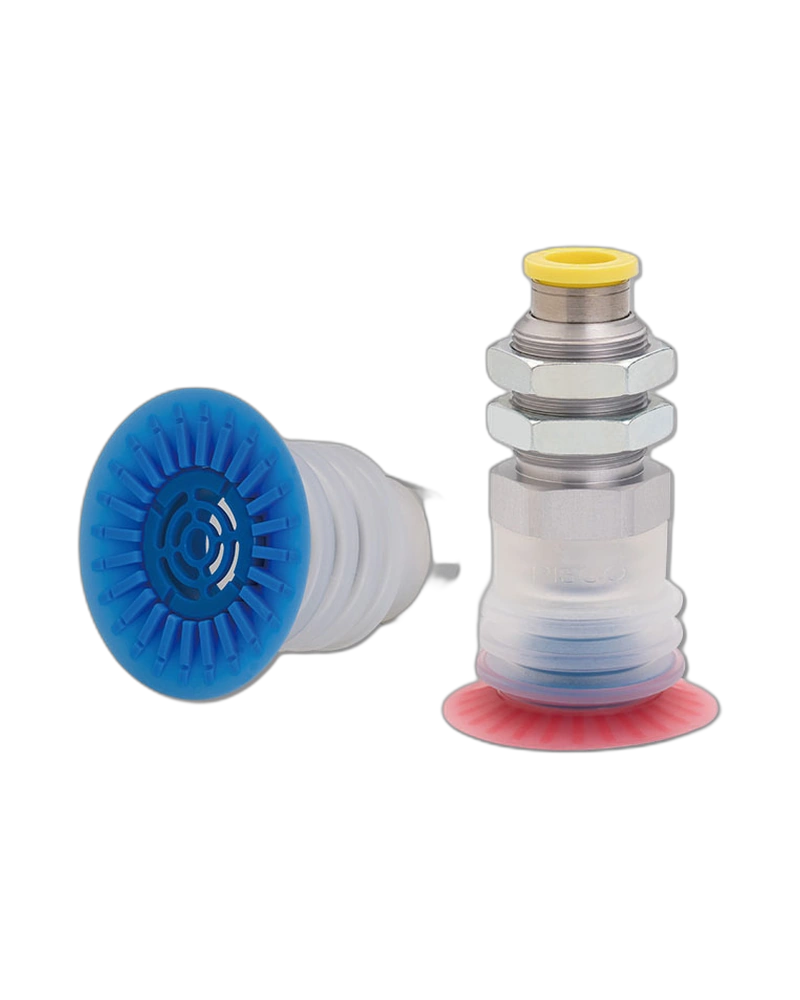

The pad features a dual-material construction: a soft lip section made from silicone rubber for gentle contact with packaging surfaces, and a rigid bellows section that maintains structural integrity. Two rubber hardness options are available — a blue lip for thick vinyl or sheet-based packaging bags, and a pink lip for more deformable bag materials, offering tailored performance based on material type.
The pad connects via threaded interfaces with two adapter types: plane-type for hard packaging materials and spherical-type for soft, flexible packaging. This allows the vacuum pad to adapt to different surface characteristics while maintaining consistent suction performance.
Operational performance is optimized through precise engineering. The pad achieves stable followability during conveyance, with a vacuum pad size (I.D.) that matches standard industrial requirements. The system includes two oversuction preventing adapters to reduce the risk of over-suction and material deformation under high vacuum conditions.
Available in five standard sizes: φ20, φ25, φ30, φ40, and φ50 millimeters. All pads are offered in a single color scheme — the lip section is either blue (standard soft rubber) or pink (extra soft rubber), depending on application needs. The pad holder includes a female thread of M5x0.8, M6x1, or M8x1.25 for compatibility with various mounting systems.
The vacuum pad integrates directly into existing conveyor systems via threaded connections. It features male threads such as M5x0.8, M6x1, M8x1, M14x1, and metric pipe threads (G1/8A, G1/4A, G3/8A, G1/2A) for secure attachment to vacuum nozzles or mounting brackets. The pad holder includes a φ1.6 mm internal diameter for direct connection to the vacuum source.
| Specification | Details |
|---|---|
| Weight | Pad size Ascending order Descending order Clear All |
| Material | Silicone rubber |
| Pad size | φ20, φ25, φ30, φ40, φ50 |
| Female thread | M5x0.8, M6x1, M8x1.25 |
| Male thread | M5x0.8, M6x1, M8x1, M14x1, G1/8A, G1/4A, G3/8A, G1/2A |
| Vacuum Pad size | Vacuum Pad I. D.* |
| Without Vacuum Pad (Pad Holder only) | φ1.6 mm |
