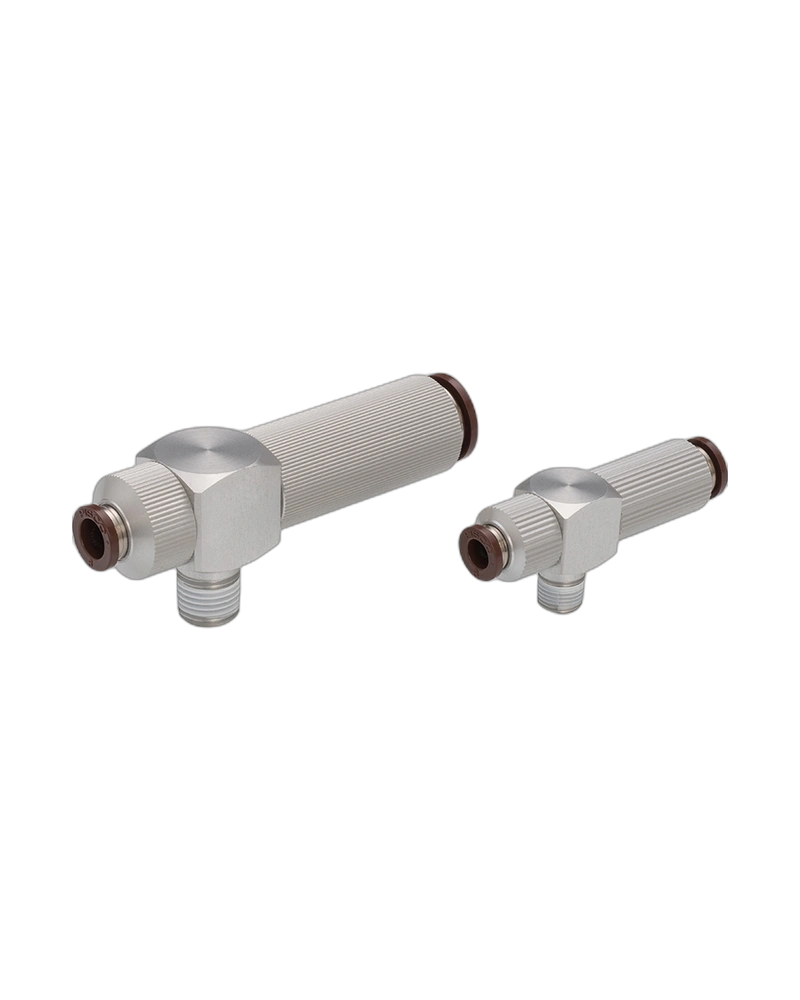

This special product uses a PISCO Vacuum Generator VC-series concept for direct mounting in applications where air or gas needs to be evacuated from a mold or localized cavity.
The related VM/VC vacuum-generator platform is a compact ejector with push-in fitting and direct-mount architecture. It can be combined with a vacuum pad/holder-style installation or used as a dedicated vacuum source at the point of use.
The official VM/VC family specifies air service, 0.15 to 0.7MPa operating pressure, rated supply pressure of 0.5MPa for H/L types or 0.35MPa for E type, and 0 to 60℃ operating temperature. Available interfaces include M5x0.8, M6x1, R1/8, R1/4, R3/8 and NPT1/8 through NPT3/8 depending on model.
Install the vacuum generator at the direct-mount location and connect the compressed-air supply and vacuum side according to the exact VC model. The special configuration is intended to support gas venting/degas functions without adding unnecessary remote vacuum piping.
| Specification | Details |
|---|---|
| Product family | Vacuum Generator VM・VC |
| Fluid medium | Air |
| Operating pressure range | 0.15 to 0.7MPa |
| Rated supply pressure | 0.5MPa (H, L type) / 0.35MPa (E type) |
| Operating temperature | 0 to 60℃ (No freezing) |
| Metric male thread | M5x0.8, M6x1 |
| Taper male thread | R1/8, R1/4, R3/8 |
| NPT male thread | NPT1/8, NPT1/4, NPT3/8 |
| Special use | Integrated support for gas venting / mold degassing |
| Mounting concept | Direct-mount vacuum generator |
