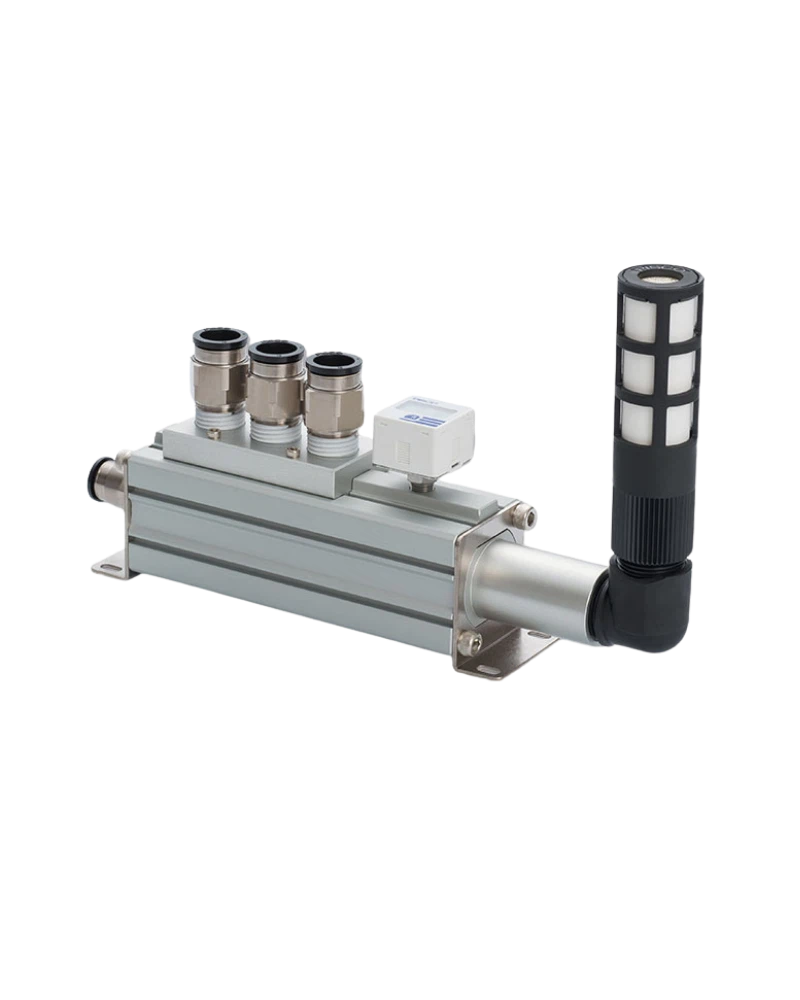

The Vacuum Generator VVV is a multi-stage nozzle ejector designed to deliver high vacuum performance and large flow rates at low supply pressure. It efficiently creates strong suction, making it ideal for applications requiring reliable vacuum generation without the need for excessive input pressure.
The unit features brass construction with electroless nickel plating on its main metal components, ensuring durability and resistance to corrosion. Aluminum is also used in the primary structural parts, contributing to a lightweight yet robust design suitable for industrial environments.
The Vacuum Generator VVV includes three vacuum ports, enabling easy distribution of suction across multiple workstations or processes. Each port is equipped with a taper female thread, available in Rc1/2 (for all three ports), Rc1/4, or Rc3/4 configurations to match various system connections.
The device operates within an air pressure range of 0.3 to 0.7 MPa, with a rated supply pressure of 0.35 MPa. It is designed for use in ambient temperatures between 5°C and 50°C, where freezing conditions are not expected. The seal material used is NBR rubber, which provides effective sealing but has limited ozone resistance.
Available in multiple metric sizes: φ8, φ10, and φ12, with configurations of φ12 × 3 pcs. and φ16 × 3 pcs., allowing flexibility to match different process requirements. The product is offered in standard industrial finishes suitable for continuous operation in manufacturing settings.
The Vacuum Generator VVV integrates directly into vacuum systems through its threaded connections, supporting installation with Rc1/2, Rc1/4, or Rc3/4 taper female threads. This compatibility allows seamless integration into existing setups for vacuum packaging, defoaming, deaeration, and suction conveyance of large or heavy workpieces and air-permeable materials.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | 0.3 to 0.7 MPa |
| Rated supply pressure | 0.35 MPa |
| Operating temperature range | 5 to 50°C (No freezing) |
| Metric size (mm) | φ12 × 3 pcs., φ16 × 3 pcs. | φ8, φ10, φ12 |
| Taper female thread | Rc1/2 (3 ports) | Rc1/4 | Rc3/4 |
| Main metal material | Brass with electroless nickel plating |
