Explore performance details, construction highlights, applications, and technical information in one clear overview.

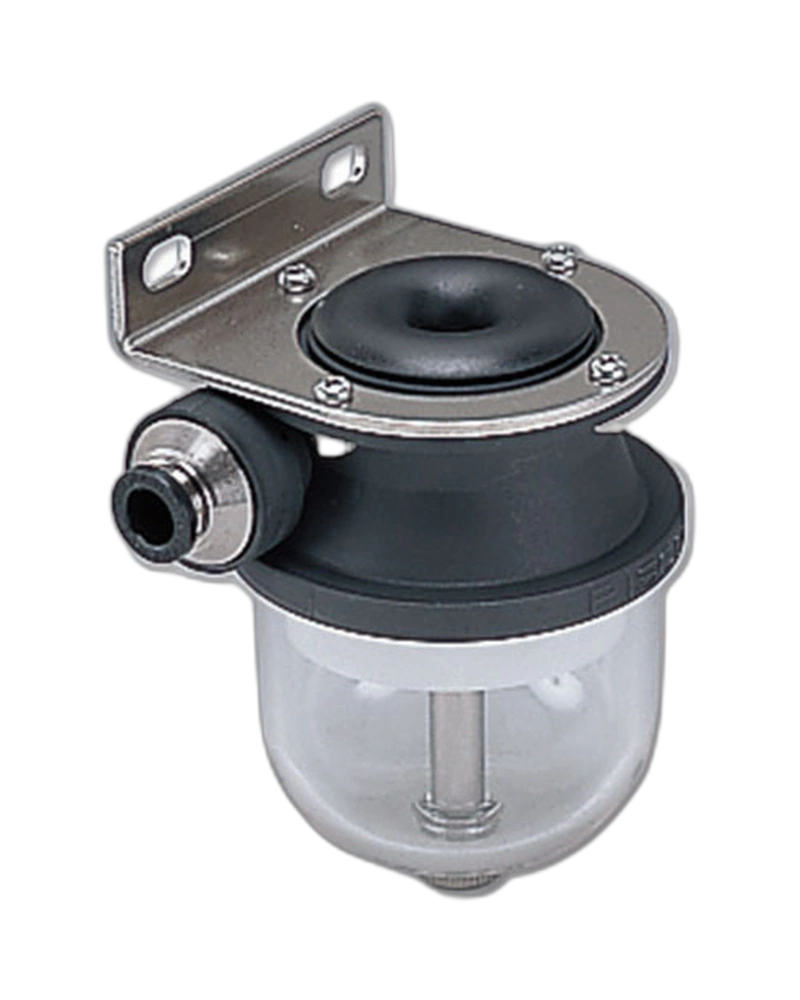

The Vacuum Filter VFR is a specialized filtration component designed to remove dust and water droplets from the air stream as it is sucked in by a vacuum generator. By leveraging the element and cyclone effect, it efficiently separates particulate matter and liquid droplets, ensuring clean airflow and protecting downstream equipment from contamination.
The filter body is constructed from PBT resin for its main structural components, a material well-suited for general environmental conditions. Critical metal parts, such as housing joints and fittings, are made from brass with electroless nickel plating to enhance durability and corrosion resistance. Sealing elements are fabricated from NBR rubber, which provides reliable sealing performance under typical operating conditions, though it has limited ozone resistance.
The VFR features a standardized connection interface designed for direct integration with vacuum generators or suction systems. It is configured as a standalone filter unit that connects via threaded fittings, allowing for straightforward installation and compatibility with standard vacuum system designs.
The Vacuum Filter VFR operates within an air pressure range of -100 to 0 kPa, making it suitable for applications where negative pressure suction is present. It can function effectively in ambient temperatures ranging from 0°C to 60°C, with no freezing allowed. The unit is designed to operate without freezing and maintains performance under normal environmental conditions.
Available in multiple diameters—ø6 mm, ø8 mm, ø10 mm, ø12 mm, and ø16 mm—the VFR offers flexibility in sizing to match different system requirements. All variants are offered in a standard finish with no color options specified.
The filter is designed for direct integration into vacuum systems where suction is generated by a vacuum generator. Installation requires threading the filter into the system’s inlet or outlet port, and its large dust collection case helps reduce maintenance frequency by minimizing the need for frequent cleaning.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | -100 to 0 kPa |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | ø6, ø8, ø10, ø12, ø16 |
| Main resin material | PBT |
| Main metal material | Brass with electroless nickel plating |
