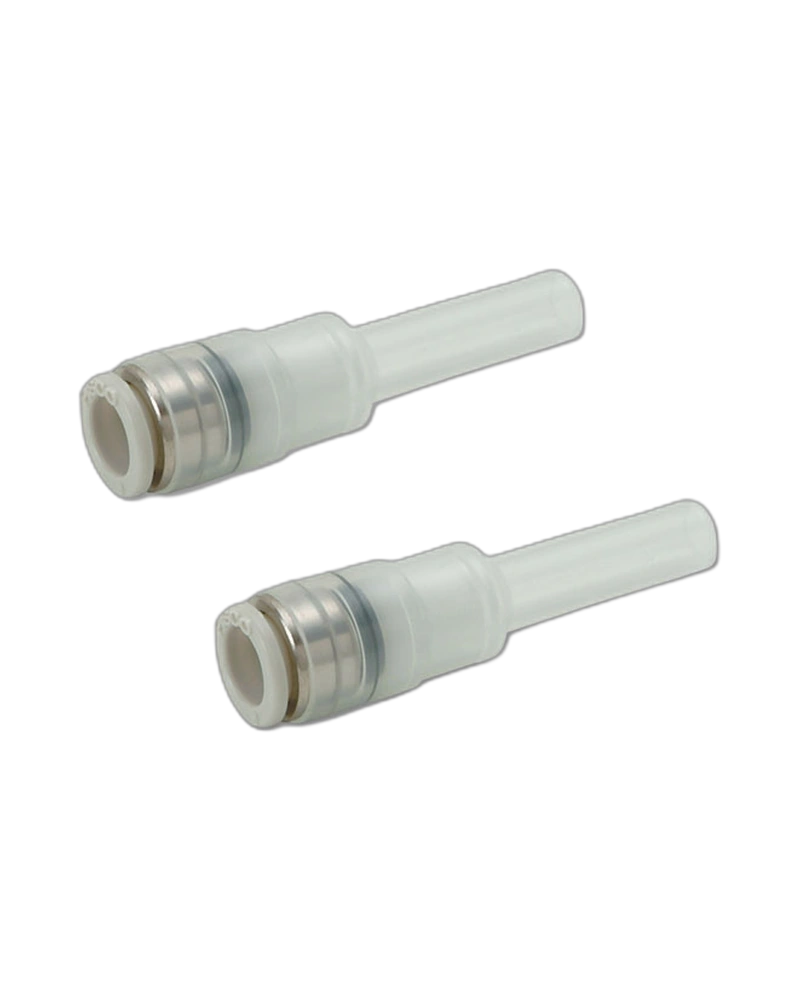

The Vacuum Filter VFJ is a plug-in type vacuum filter designed for easy installation and reliable performance in air filtration applications. It integrates the filter element with the plug-in union fitting, eliminating the need for additional fittings or complex assembly. This design ensures quick replacement and reduces downtime during maintenance.
The main resin components are made from polypropylene (PP), a material known for its excellent chemical resistance and high transparency—ideal for clean environments where visibility and durability are essential. The metal parts, including structural elements and fittings, are constructed from brass with electroless nickel plating, providing corrosion resistance and long-term mechanical stability.
The filter is designed with an integrated plug-in union fitting that connects directly to the vacuum system. This configuration allows for seamless integration into existing piping or equipment without requiring additional adapters or tools, simplifying both installation and removal.
The VFJ operates within a pressure range of -100 to 0 kPa, suitable for standard vacuum applications where negative pressure is required. It is rated for operating temperatures between 0°C and 60°C, with no freezing allowed. The filter is specifically designed for use with air as the fluid medium.
Available in three sizes: φ3 mm, φ4 mm, and φ6 mm, corresponding to φ1/8 inch. These dimensions ensure compatibility with a range of vacuum systems and equipment configurations across different industrial applications.
The filter is designed for direct plug-in installation into compatible vacuum system fittings. Its integrated union design allows for secure connection without additional hardware, making it ideal for integration into automated or semi-automated processes where quick change-out is required.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Operating pressure range | -100 to 0 kPa |
| Operating temp. range | 0 to 60℃ (No freezing) |
| mm size (mm) | φ3, φ4, φ6 |
| inch size | φ1/8” |
| Main resin material | PP |
| Main metal material | Brass with electroless nickel plating |
