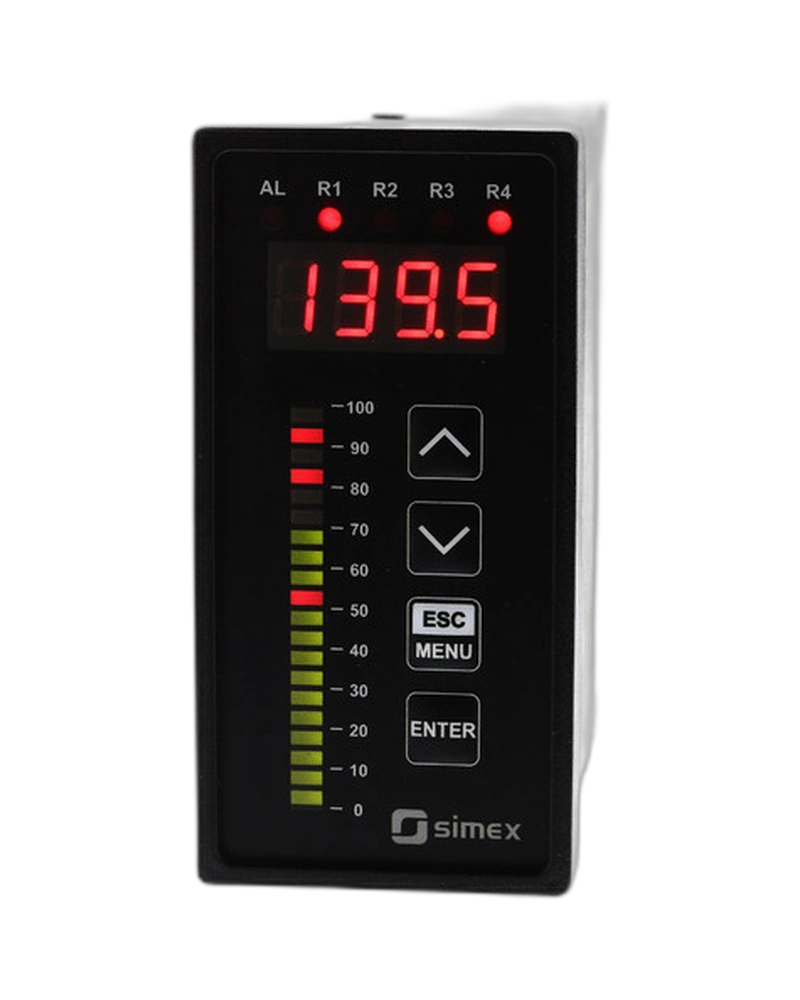

SUR-49B is a SIMEX industrial measurement instrument. It combines 9 mm LED display and 20-point red-green bargraph and Universal input for practical industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Universal Meter - SUR-49B is a SIMEX industrial measurement and control solution designed for dependable integration into process monitoring and automation systems. Its configuration brings together practical measurement, indication, signal handling and control functions in a format suited to industrial use.
Universal Meter - SUR-49B supports flexible signal handling for applications where different process, electrical or temperature signals need to be brought into one instrument. The available input configuration includes 1 universal input; 0/4...20 mA; 0/1...5 V; 0/2...10 V; 0...60/75/100/150 mV; and TC K -200...+1370 °C; S -50...+1768 °C; J -210...+1200 °C; T -200...+400 °C; N -200...+1300 °C; R -50...+1768 °C; B +250...+1820 °C; E -200...+1000 °C. This flexibility helps simplify instrument selection when a system requires multiple signal types or ranges.
For integration with external equipment, Universal Meter - SUR-49B provides defined output and control capabilities. The available configuration includes 5 A / 250 V AC resistance load; 3 A / 250 V AC reactance load and I=30 mA, U=30 V DC, P=100 mW. These options allow measured values and control states to be connected to the wider automation system according to the selected configuration.
The Universal Meter - SUR-49B combines local indication with communication capabilities where provided by the configuration. Available details include 4 × 9 mm red; 20-point red-green bargraph; RS-485 / Modbus RTU; and 1200...115200 bit/s; 8N1 / 8N2. This makes the instrument suitable for installations where operators need clear local information while the device also exchanges data with a control or monitoring system.
Configuration and signal-processing functions give Universal Meter - SUR-49B additional flexibility beyond basic indication. Its listed capabilities include -100...+600 °C; 0...24 mA maximum, 700 Ω maximum load, 13-bit resolution; 2.8...24 mA maximum, 600 Ω at 24 V DC, 13-bit resolution; 0...11 V maximum, minimum 2000 Ω load, 13-bit resolution; Linear, square-root, quadratic, user-defined and cylindrical-tank volume characteristics; Signal peak-value detection; and Local keyboard and/or free S-Config configuration. These functions can help adapt the instrument to the required measurement method, display behaviour and operating workflow without changing the underlying product platform.
The physical and electrical design of Universal Meter - SUR-49B is defined by its available power supply, environmental and construction characteristics. The listed configuration includes 16...35 V AC; 19...50 V DC; 85...260 V AC/DC; 11.4...15 V AC/DC; 0...+50 °C; -20...+50 °C; IP20 case/connection clips; IP65 front; optional integrated frame; NORYL-GFN2S E1; Panel mounting; and 48 × 96 × 100 mm. These details provide the information needed to assess compatibility with the intended installation environment and system requirements.
Universal Meter - SUR-49B is suited to installations where dependable measurement, clear indication and straightforward integration are important. Its combination of signal capabilities, configurable functions, outputs and interface options provides a practical platform for connecting measurement tasks with industrial monitoring and automation equipment.
Detailed model information is provided in the specification and feature tables, including available signal ranges, outputs, communication interfaces, functions, power requirements and construction details. Review the tables for the exact configuration and technical values of Universal Meter - SUR-49B.
| Feature | Specification |
|---|---|
| Input Specification | 1 universal input |
| Signal Range | 0/4...20 mA |
| Signal Range | 0/1...5 V; 0/2...10 V |
| Signal Range | 0...60/75/100/150 mV |
| Pt100/Pt500/Pt1000 | -100...+600 °C |
| Temperature Input | TC K -200...+1370 °C; S -50...+1768 °C; J -210...+1200 °C; T -200...+400 °C; N -200...+1300 °C; R -50...+1768 °C; B +250...+1820 °C; E -200...+1000 °C |
| Relay | 5 A / 250 V AC resistance load; 3 A / 250 V AC reactance load |
| Open Collector | I=30 mA, U=30 V DC, P=100 mW |
| 0/4...20 mA active current | 0...24 mA maximum, 700 Ω maximum load, 13-bit resolution |
| 4...20 mA passive isolated current | 2.8...24 mA maximum, 600 Ω at 24 V DC, 13-bit resolution |
| 0/1...5 V and 0/2...10 V active voltage | 0...11 V maximum, minimum 2000 Ω load, 13-bit resolution |
| Function | Linear, square-root, quadratic, user-defined and cylindrical-tank volume characteristics |
| Function | Signal peak-value detection |
| Function | Local keyboard and/or free S-Config configuration |
| Function | Automatic cold-junction compensation |
| Function | Fully linearized RTD and thermocouple characteristics |
| LED | 4 × 9 mm red; 20-point red-green bargraph |
| Communication | RS-485 / Modbus RTU |
| Interface | 1200...115200 bit/s; 8N1 / 8N2 |
| Environmental / Power | 16...35 V AC; 19...50 V DC; 85...260 V AC/DC; 11.4...15 V AC/DC |
| Operating temperature | 0...+50 °C; -20...+50 °C |
| Environmental / Power | IP20 case/connection clips; IP65 front; optional integrated frame |
| Case material | NORYL-GFN2S E1 |
| Mounting | Panel mounting |
| Case dimensions | 48 × 96 × 100 mm |
