Product Overview

PM Display Scaling Meter - PB-1471 - PBX11400-B6 is a FINETEK PM Display Scaling Meter configuration identified in the catalog by PB and order code 1471 - PBX11400 - B6. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual PB identity rather than a generic description of the FINETEK range.

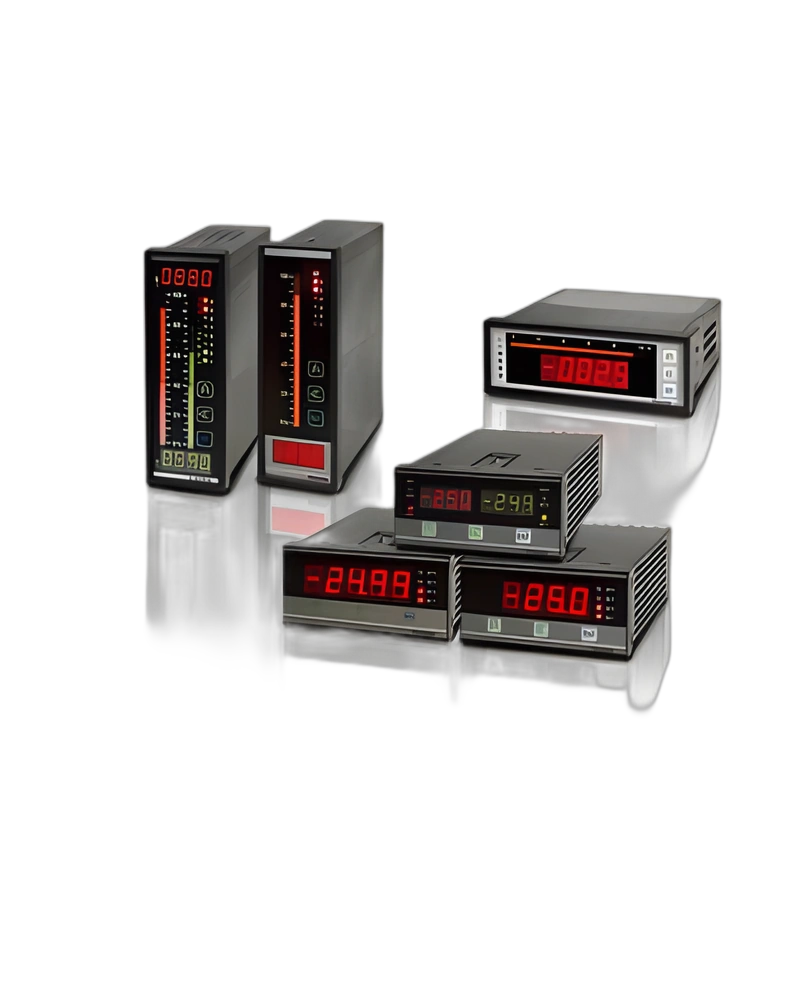

Microprocessor-based panel display for scaled process values, with digital and bargraph indication and configurable relay set points. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.

Technical Capabilities

The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.

• Display: 4-digit numerical display; PM-1430 variants include 5-digit or 4-digit versions
• Relay setting points: 6
• Lookup table: Up to 20 points for nonlinear tank-volume scaling
• Analog accuracy: Up to ±1 bit for listed digital calibration
• Input types: 2-wire analog and selectable signal boards
• Construction: Modular signal/output boards

Design and Features

The PM Display Scaling Meter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.

• Bargraph indication
• Digital display
• Six relay set points
• Modular input/output architecture
• Digital calibration
• Tank-volume linearization

Applications

FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.

• Level indication
• Pressure display
• Temperature display
• Process instrumentation
• Remote panel monitoring

Configuration and Selection

The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is PM Display Scaling Meter - PB-1471 - PBX11400-B6 with order code 1471 - PBX11400 - B6.

This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.

Technical Highlights

The PM Display Scaling Meter - PB-1471 - PBX11400-B6 configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.

• Display: 4-digit numerical display; PM-1430 variants include 5-digit or 4-digit versions
• Relay setting points: 6
• Lookup table: Up to 20 points for nonlinear tank-volume scaling
• Analog accuracy: Up to ±1 bit for listed digital calibration
• Construction: Modular signal/output boards
• Input types: 2-wire analog and selectable signal boards

Product Identification

Model: PB-1471. Order code: PBX11400-B6. The complete configuration should be matched to the required process conditions, installation arrangement and connected instrumentation.
