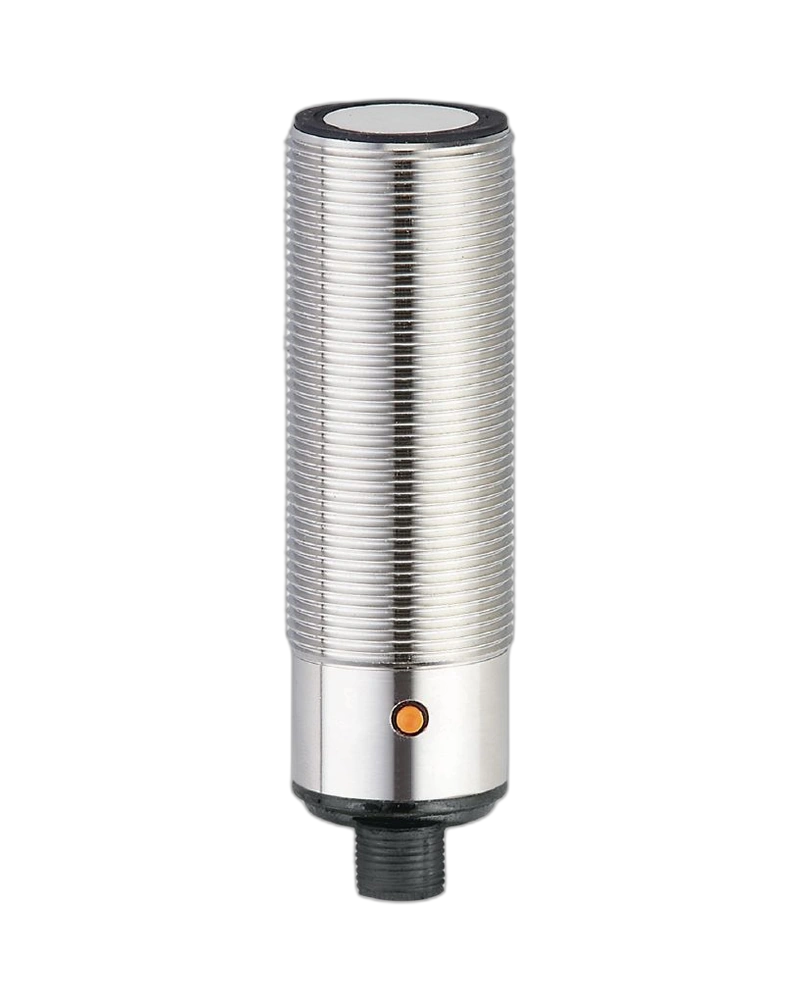

UIT502 is an IFM ultrasonic sensor designed for non-contact object detection and distance measurement in industrial automation. The sensor combines ultrasonic technology with IO-Link communication for digital parameterisation and diagnostics. Its extended sensing capability supports object positioning, presence detection and machine monitoring. It is suitable for conveyors, packaging equipment, material handling systems, assembly machines and connected industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UIT502 provides dependable ultrasonic detection with intelligent IO-Link communication. It is designed for applications requiring reliable distance information without physical contact. Digital communication allows convenient configuration and process-data exchange. The sensor is suitable for modern production systems and automated machinery.
The sensor measures object distance using ultrasonic signals and provides programmable output information. IO-Link enables communication between the sensor and automation controller. Its teach function simplifies application setup. The industrial housing and connector arrangement support easy machine integration.
UIT502 is suitable for conveyors, packaging machinery and automated handling equipment. It can monitor object presence and position throughout production processes. IO-Link allows device settings and diagnostic information to be managed digitally. This makes the sensor suitable for smart manufacturing environments.
Ultrasonic sensing
IO-Link communication
Extended detection capability
Non-contact measurement
Programmable outputs
Analogue signal capability
Teach function
Digital diagnostics
Process-data communication
Industrial construction
Flexible machine integration
Smart factory compatibility
Object detection
Distance measurement
Position monitoring
Conveyor automation
Packaging systems
Material handling
Assembly machinery
Production monitoring
Machine control
Smart manufacturing
IO-Link automation
Industrial process control
| Specification | Details |
|---|---|
| Product Code | UIT502 |
| Model | UIA03500E2KG/IO-Link/US |
| Product Type | Ultrasonic Sensor |
| Brand | IFM |
| Technology | Ultrasonic |
| Sensing Range | 250–3500 mm class |
| Housing | Industrial |
| Mounting | Threaded |
| Communication | IO-Link |
| Supply Voltage | 10–30 V DC |
| Digital Output | 1 |
| Analogue Output | 1 |
| Analogue Signal | 4–20 mA class |
| Output Function | Programmable |
| Teach Function | Yes |
| Process Data | Available |
| Diagnostics | Available |
| SIO Mode | Supported |
| Detection | Non-contact |
| Distance Measurement | Yes |
| Object Detection | Yes |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Yes |
| Connection | M12 |
| Application | Industrial automation |
