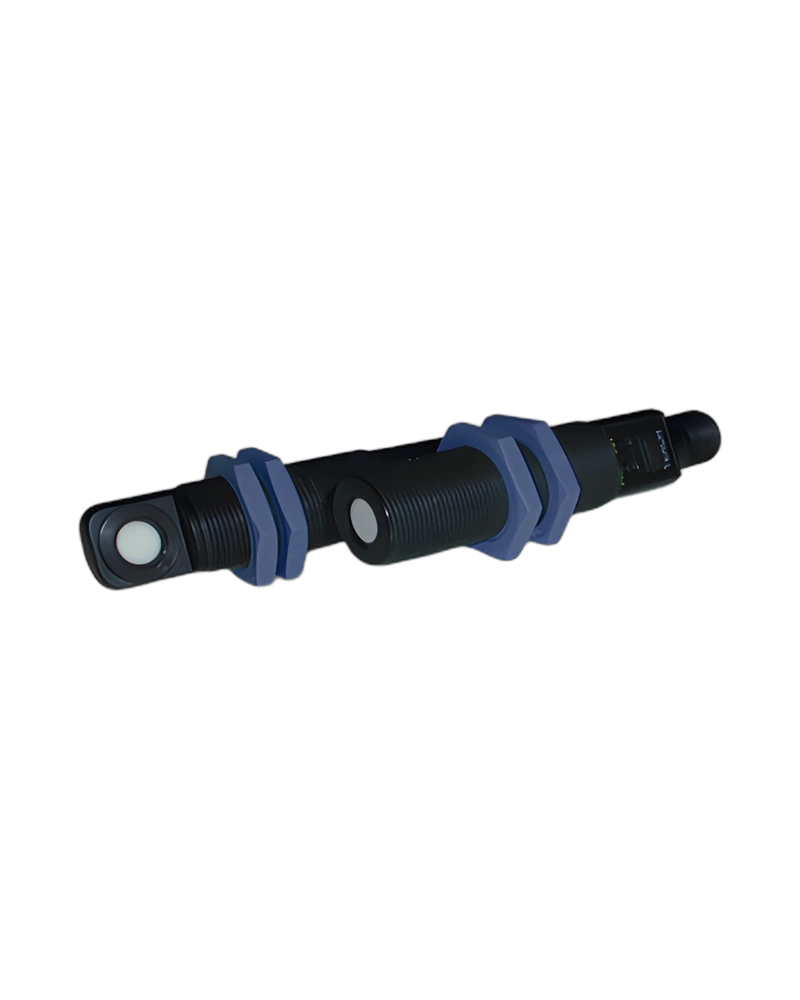

The US30-PR-5-N23-IH - 95B040080 - US30 Ultrasonic sensors is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing US30-PR-5-N23-IH - 95B040080 ultrasonic sensor provides high-precision distance measurement with a 4-20 mA analog output. Its 1 mm minimum resolution ensures accurate detection across industrial applications.
Engineered for robust industrial environments, this sensor features a Ø30x45mm form factor with M12 connections. The 4-20 mA output supports seamless integration into control systems, while the configurable PNP/NPN output ensures compatibility with diverse industrial logic circuits.
The documented configuration includes Response time: 100,000; Minimum resolution: 1 mm; Response Time: 100 ms to 1600 ms; Nominal sensing distance: 2 m; Emission: 174kHz.
The documented configuration includes Output type: 4-20 mA; Operating Voltage: 10-30 VDC; Analogue output Linearity: +/- 0.2% of span from 200 to 8000 mm; +/- 0.1% of span from 500 to 8000 mm (1 mm minimum).
The documented configuration includes Dimensions: Ø30x45; Minimum window size: 20mm; Material: Plastic - PBT.
The documented configuration includes Application: M30 tubular - lateral emission; Functions: Object detection/distance meas..
The documented configuration includes Connections: M12; Repeatability: 1 mm; Hysteresis: 5 mm.
| Feature | Specification |
|---|---|
| Output type | 4-20 mA |
| Response time | 100,000 |
| Operating Voltage | 10-30 VDC |
| Dimensions | Ø30x45 |
| Connections | M12 |
| Minimum resolution | 1 mm |
| Analogue output Linearity | +/- 0.2% of span from 200 to 8000 mm; +/- 0.1% of span from 500 to 8000 mm (1 mm minimum) |
| Response Time | 100 ms to 1600 ms |
| Nominal sensing distance | 2 m |
| Emission | 174kHz |
| Application | M30 tubular - lateral emission |
| Minimum window size | 20mm |
| Repeatability | 1 mm |
| Hysteresis | 5 mm |
| Material | Plastic - PBT |
| Functions | Object detection/distance meas. |
