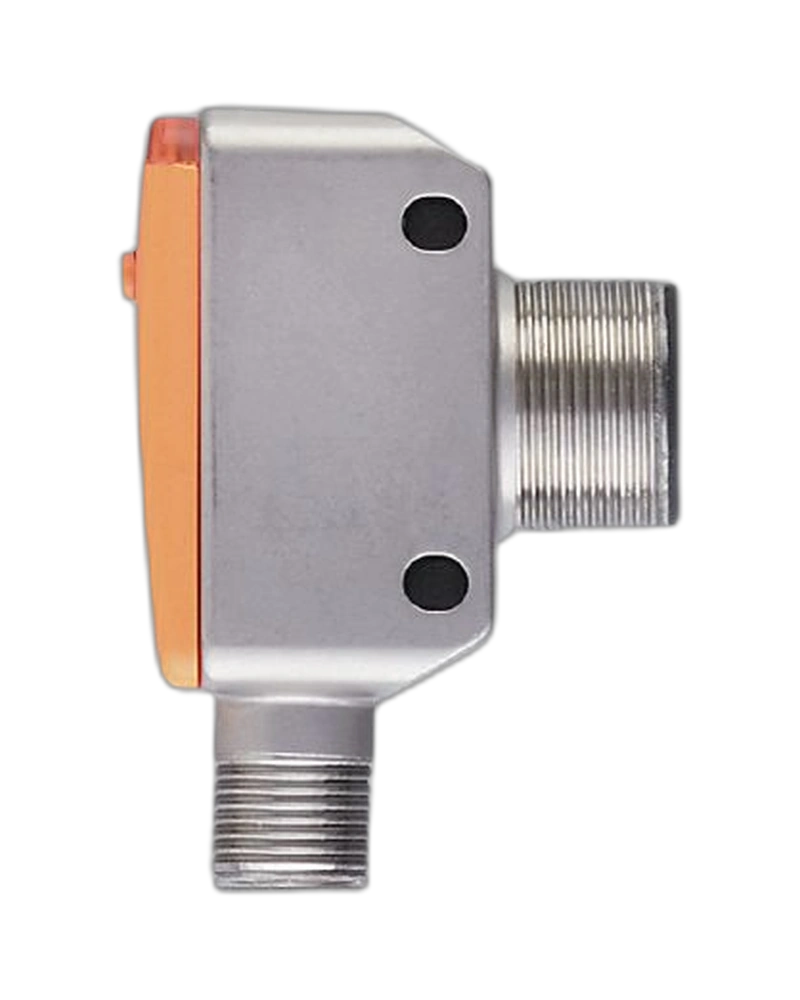

UGT593 is an IFM ultrasonic sensor with IO-Link communication designed for reliable non-contact object detection and distance measurement. It provides a sensing range suitable for industrial applications and supports digital parameterisation and diagnostics through IO-Link. The sensor can detect objects independently of many colour and surface variations. Its industrial design makes it suitable for conveyors, packaging, material handling and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT593 provides ultrasonic detection combined with digital IO-Link communication for modern automation applications. It is designed for reliable detection and distance monitoring without physical contact. The sensor supports parameterisation, diagnostics and process-data communication through an IO-Link master. This enables easier integration into connected industrial control systems.
The sensor provides a programmable ultrasonic detection function with IO-Link communication. Its sensing range is suitable for many object-detection and distance-monitoring applications. The sensor supports teach functions and configurable switching parameters. IO-Link also allows access to device information and operating data for easier machine management.
UGT593 can be used in conveyors, packaging machines, assembly equipment and material handling systems. Its IO-Link interface makes it suitable for machines requiring digital parameterisation and diagnostics. The sensor can provide repeatable detection information for automated control. It is also suitable for connected factory and Industry 4.0 applications.
Ultrasonic sensing
IO-Link communication
Sensing range up to 800 mm class
Non-contact detection
Remote parameterisation
Diagnostic functions
Teach function
Digital process data
Programmable switching parameters
Colour-independent detection
Industrial construction
Smart automation compatibility
Conveyor systems
Packaging equipment
Material handling
Object detection
Distance measurement
Position monitoring
IO-Link automation
Smart manufacturing
Machine diagnostics
Assembly systems
Production monitoring
Industrial process control
| Specification | Details |
|---|---|
| Product Code | UGT593 |
| Model | UGQ00800EOKG/IO-Link/US |
| Product Type | Ultrasonic Sensor |
| Brand | IFM |
| Technology | Ultrasonic |
| Sensing Range | 60–800 mm |
| Blind Zone | 60 mm class |
| Aperture Angle | Approx. 15° |
| Accuracy Function | Temperature compensation |
| Resolution | 1 mm |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission | COM2 |
| SIO Mode | Yes |
| Process Cycle | Approx. 10 ms class |
| Supply Voltage | 10–30 V DC |
| Teach Function | Yes |
| Switching Parameters | Programmable |
| Diagnostics | Available |
| Operating Temperature | -20 to 70 °C class |
| Storage Temperature | -30 to 80 °C class |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Connection | M12 |
| Application | Industrial automation |
