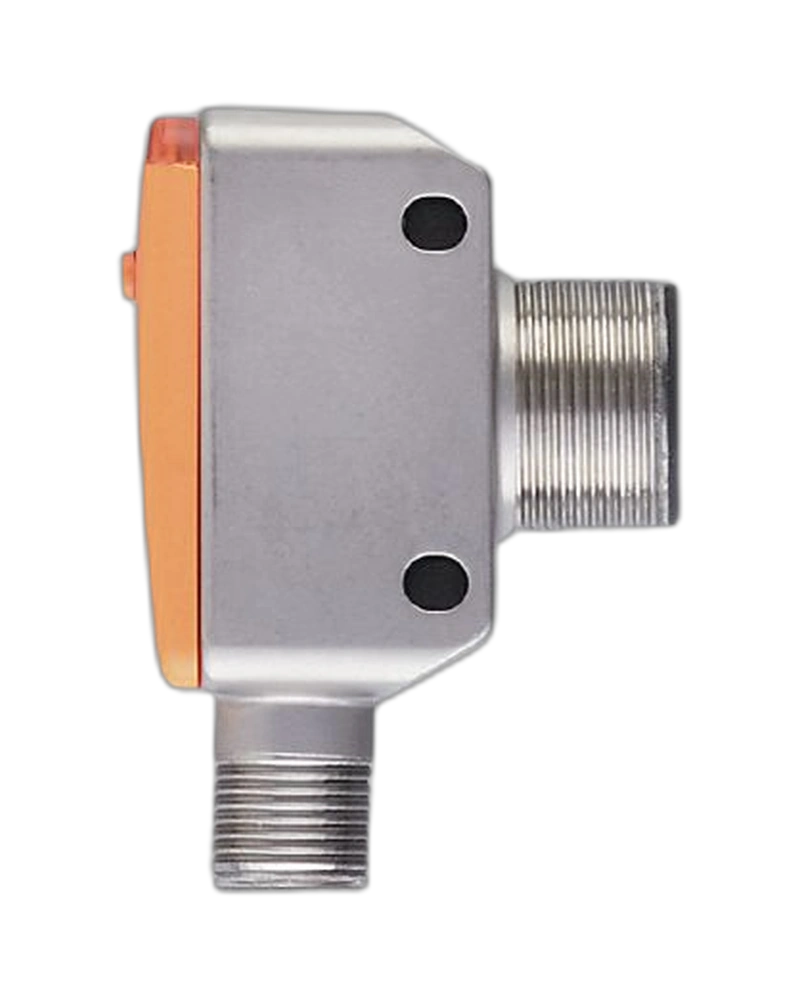

UGT586 is an IFM ultrasonic sensor designed for reliable non-contact detection and distance measurement in industrial automation applications. The sensor uses ultrasonic technology to detect objects independently of colour, transparency and surface characteristics. Its compact M18 threaded design supports flexible installation in machinery and production systems. The programmable output and teach function make it suitable for precise object detection, positioning and monitoring tasks.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM UGT586 ultrasonic sensor provides dependable non-contact object detection for automated machinery and industrial processes. Its ultrasonic operating principle allows reliable sensing of different target materials and surface conditions. The compact rectangular housing with M18 threaded mounting supports convenient integration into space-limited installations. The sensor is suitable for applications requiring repeatable distance-based detection and process monitoring.
UGT586 features a compact industrial housing designed for practical machine installation and continuous operation. The sensor provides programmable switching functionality and an analogue signal for flexible automation control. Its teach button allows convenient adjustment of the sensing distance according to the application. The ultrasonic sensing principle supports stable detection where conventional optical sensors may experience limitations.
UGT586 can be used for object presence detection, position monitoring, material handling and machine automation. It is suitable for detecting objects regardless of their colour or transparency. Typical applications include conveyor systems, packaging equipment, assembly machinery and automated production lines. Its compact construction makes it suitable for installation in confined industrial spaces.
Ultrasonic non-contact sensing technology
M18 threaded mounting design
Compact rectangular housing
Programmable switching output
Analogue signal functionality
Integrated teach button
Reliable detection of different surface types
Colour-independent object detection
Transparent-object detection capability
Suitable for industrial automation
Compact installation footprint
Designed for continuous machine operation
Object presence detection
Distance monitoring
Position detection
Conveyor automation
Packaging machinery
Material handling systems
Assembly equipment
Machine monitoring
Product detection
Industrial process automation
Level and position monitoring
Automated production lines
| Specification | Details |
|---|---|
| Product Code | UGT586 |
| Model | UGQ00300F1KG/US |
| Product Type | Ultrasonic Sensor |
| Brand | IFM |
| Sensor Technology | Ultrasonic |
| Sensing Range | 40–300 mm |
| Housing | Rectangular |
| Thread | M18 |
| Housing Dimensions | Approx. 53 × 20 × 37.7 mm |
| Output Type | NPN |
| Output Function | Normally open / normally closed |
| Output Configuration | Parameterisable |
| Analogue Output | Available |
| Switching Output | Digital |
| Supply Voltage | 10–30 V DC |
| Protection Class | IP-rated industrial housing |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Teach Function | Yes |
| Switching Frequency | Up to 300 Hz |
| Converter Frequency | Ultrasonic |
| Electrical Connection | Industrial sensor connection |
| Installation | Threaded mounting |
| Application | Industrial automation |
