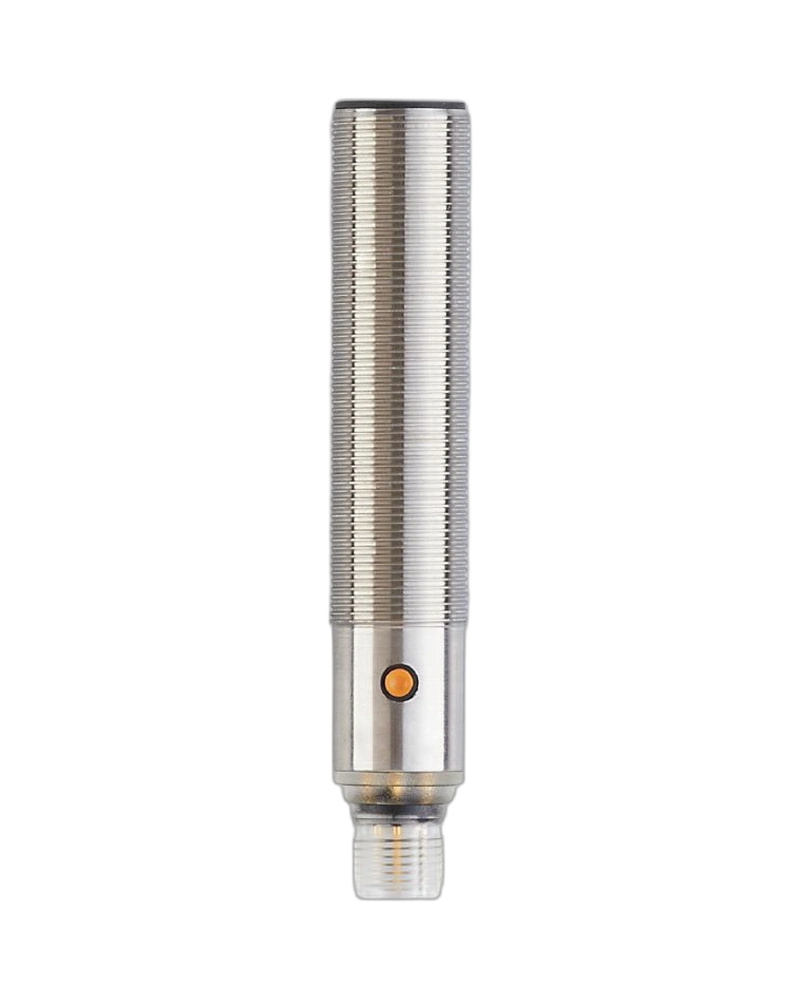

The IFM UGT513 ultrasonic sensor combines long-range non-contact detection with IO-Link communication and scalable analogue output functionality. It is designed to detect objects reliably regardless of colour, transparency or surface characteristics. The sensor supports intuitive detection-range adjustment through pushbutton or IO-Link and provides visible LED indication for switching status and echo. It is suitable for industrial automation, material handling, conveyors and distance-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT513 is designed for industrial distance measurement and object detection where reliable non-contact sensing is required. Its ultrasonic technology provides dependable detection of different objects without relying on optical contrast. The sensor can be configured through pushbutton operation or IO-Link, helping simplify commissioning. Its long detection capability makes it suitable for automated machinery and processes requiring stable distance-related sensing.
The ultrasonic sensing principle allows the sensor to detect objects independently of colour, transparency and surface characteristics. This provides an advantage in production environments where the appearance of products may change. The sensor is suitable for monitoring object presence, position and distance. Its long-range design supports applications where the sensing target may be located farther from the sensor.
UGT513 provides IO-Link communication for convenient parameterisation and diagnostic information. It features a programmable switching output and scalable analogue output, providing flexibility for different control architectures. The clearly visible LED provides practical indication of switching status and echo. These functions support easier commissioning and continuous monitoring of sensor operation.
The sensor is suitable for conveyors, packaging machinery, automated material handling, machine tools and production equipment. Its non-contact detection principle helps maintain reliable operation without physical wear at the sensing point. IO-Link integration also supports modern industrial automation and predictive maintenance concepts. The sensor can therefore be used for repeatable object detection and distance-related process control.
Very large detection range
Ultrasonic non-contact sensing
IO-Link communication
Programmable switching output
Scalable analogue output
Pushbutton detection-range adjustment
IO-Link parameterisation
Colour-independent detection
Transparency-independent detection
Visible LED for switching and echo
Long-distance object detection
Conveyor monitoring
Material handling
Packaging systems
Machine automation
Object positioning
Distance measurement
Production line control
Process monitoring
Automated handling equipment
| Specification | Details |
|---|---|
| Product Code | UGT513 |
| Model | UGA02200E1KG/IO-LINK/US |
| Product Type | Ultrasonic sensor |
| Sensing Range | 200...2200 mm class; verify model documentation |
| Target | Model-specific |
| Blind Zone | Model-specific |
| Electrical Design | PNP |
| Output Function | 1 digital + 1 analogue output |
| Analogue Output | 4...20 mA, model-specific |
| Communication | IO-Link |
| Operating Voltage | 10...30 V DC |
| Current Consumption | Model-specific |
| Housing Material | Model-specific |
| Housing Design | Cylindrical sensor |
| Connection | Connector |
| Connector | Model-specific |
| Protection Rating | IP67 class, model-specific |
| Protection Class | III |
| Switching Frequency | Model-specific |
| Response Time | Model-specific |
| Ambient Temperature | Model-specific |
| Installation | Industrial installation |
| Mounting | Threaded mounting |
| LED Indicator | Switching status and echo |
| Short-Circuit Protection | Model-specific |
| Overload Protection | Model-specific |
