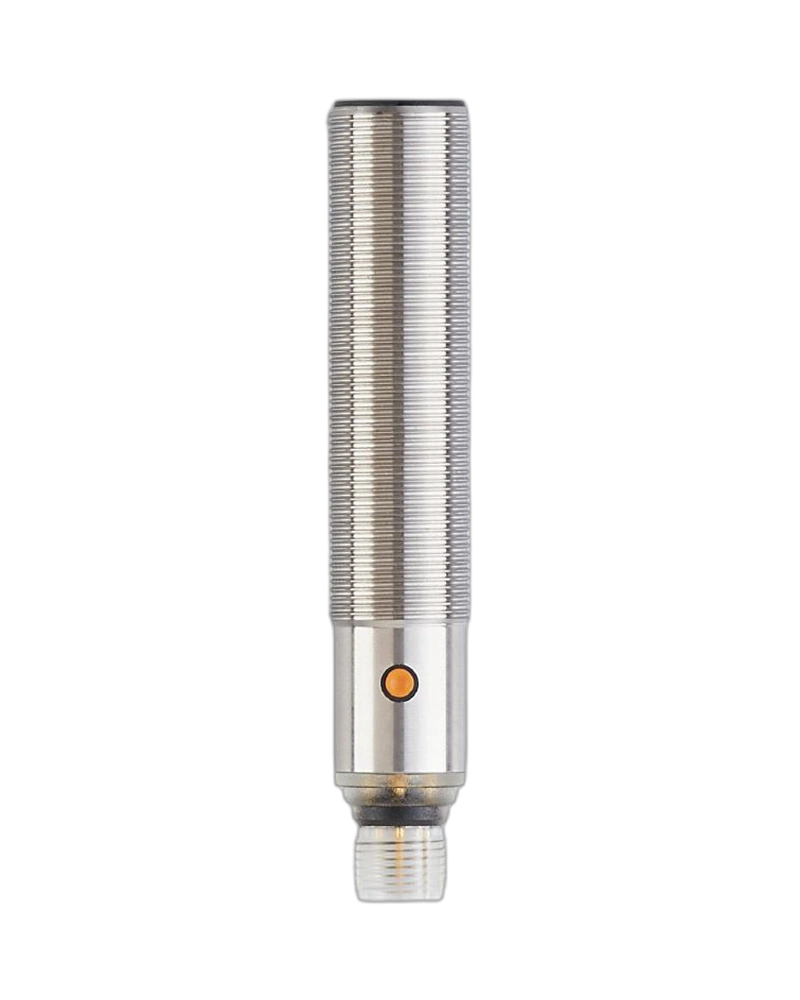

UGT509 is an IFM long-range ultrasonic sensor with IO-Link communication designed for advanced industrial automation applications. It provides a sensing range of approximately 150 to 1600 mm using a 200 x 200 mm reference target and includes two programmable switching outputs. IO-Link supports parameterisation, diagnostics and process-data communication. The M18 threaded housing and robust industrial design make the sensor suitable for conveyors, material handling, machine automation and production monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT509 combines long-range ultrasonic sensing with IO-Link communication for flexible industrial automation. The sensor detects objects without physical contact and can be used with targets having different colours and surface characteristics. Its M18 threaded housing supports practical industrial installation.
The sensor provides a sensing range of approximately 150 to 1600 mm with the specified reference target. This makes it suitable for applications where extended detection distance is required. Ultrasonic technology provides stable object detection without depending on optical contrast.
IO-Link supports parameterisation, diagnostics and process-data exchange. The sensor provides two programmable switching outputs and allows functions such as switching thresholds and timing to be configured. This improves flexibility during machine commissioning and maintenance.
UGT509 is designed for industrial automation and provides visible LED indication for sensor status and echo information. The sensor can be used in conveyors, material handling and production machinery. Its combination of long-range detection and IO-Link communication supports modern automated systems.
150...1600 mm sensing range
IO-Link communication
Two programmable outputs
PNP electrical design
NO/NC parameterisation
M18 threaded housing
Temperature compensation
Non-contact detection
Visible LED indication
Industrial automation compatibility
Long-range object detection
Conveyor monitoring
Material handling
Machine positioning
Packaging systems
Production automation
Object presence detection
Distance monitoring
Process control
Factory automation
| Specification | UGT509 – UGA01600GOKG/IO-LINK/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UGA01600GOKG/IO-LINK/US |
| Sensing range | 150...1600 mm |
| Reference target | 200 x 200 mm |
| Electrical design | PNP |
| Digital outputs | 2 |
| Output function | NO/NC parameterisable |
| Communication | IO-Link |
| Operating voltage | 10...30 V DC |
| Current consumption | 55 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 230 kHz |
| Switching frequency | 3 Hz |
| Output current | 100 mA |
| Max. voltage drop | 2.2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Aperture angle | 15° ±2° |
| Hysteresis | <2% |
| Switch point drift | -2...2% |
| Protection rating | IP67 |
| Manufacturer | IFM electronic |
