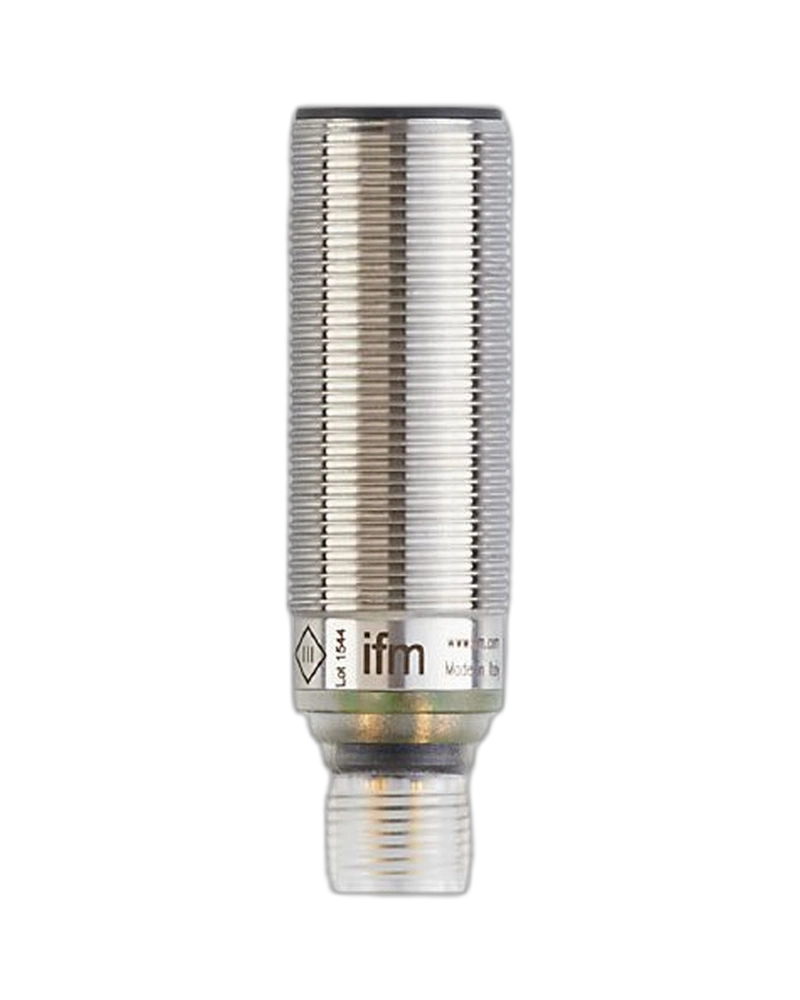

UGT502 is an IFM ultrasonic sensor designed for compact short-range industrial sensing and distance-related applications. It provides a 40 to 300 mm sensing range with a 200 x 200 mm reference target and includes an analogue voltage output. Ultrasonic detection provides non-contact sensing, while the M18 threaded housing supports convenient machine installation. The sensor is suitable for packaging, conveyors, material handling, object positioning and automated production systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT502 provides ultrasonic sensing for industrial applications requiring short-range object detection and process monitoring. The sensor operates without physical contact and can detect targets with different surface characteristics. Its compact threaded construction supports machine integration.
The sensor provides an analogue voltage output for distance-related process information. This allows the controller to receive a continuously varying signal rather than only a simple switching state. It can therefore be used for applications requiring object position or distance monitoring.
The sensing range is 40 to 300 mm using a 200 x 200 mm target. Ultrasonic technology provides dependable non-contact detection and supports applications where optical sensing may be affected by target appearance. Temperature compensation helps maintain stable sensing performance.
UGT502 uses an M18 threaded housing and supports industrial control-system integration. Its compact design is suitable for machine installations with limited space. The sensor can be used in packaging equipment, conveyors and automated material-handling systems.
40...300 mm sensing range
Analogue voltage output
0...10 V output
Ultrasonic non-contact detection
M18 threaded housing
10...30 V DC operation
Temperature compensation
Short-range distance monitoring
Compact industrial construction
IFM ultrasonic technology
Distance monitoring
Object positioning
Packaging machines
Conveyor systems
Material handling
Level-related sensing
Machine automation
Production monitoring
Process control
Factory automation
| Specification | UGT502 – UGB00300O2OG/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UGB00300O2OG/US |
| Sensing range | 40...300 mm |
| Reference target | 200 x 200 mm |
| Detection method | Non-contact |
| Analogue output | 0...10 V |
| Minimum load resistance | 3000 Ω |
| Housing | Threaded |
| Thread | M18 x 1 |
| Housing length | 60.5 mm |
| Operating voltage | 10...30 V DC |
| Current consumption | <35 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 300 kHz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Blind zone | 40 mm |
| Aperture angle | 15° ±2° |
| Temperature compensation | Yes |
| Mounting | Threaded |
| Manufacturer | IFM electronic |
