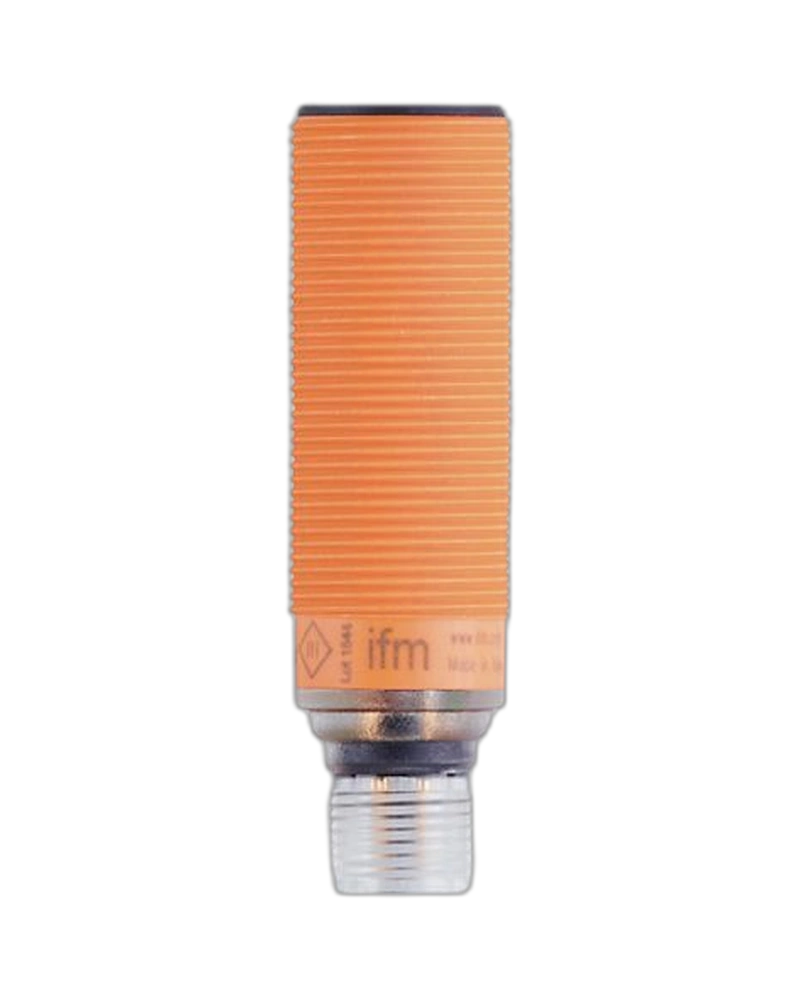

UGT214 is an IFM IO-Link ultrasonic sensor designed for reliable non-contact detection across an extended short-to-medium sensing range. It provides a sensing range of approximately 80 to 1200 mm using a 200 x 200 mm reference target. The PNP output supports configurable switching operation, while IO-Link provides communication and parameterisation. Its M18 threaded housing makes it suitable for conveyors, packaging systems, machine automation and industrial distance-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT214 combines ultrasonic detection with IO-Link communication for flexible industrial automation. The sensor operates without physical contact and can detect objects without relying on conventional optical contrast. Its compact M18 threaded construction allows straightforward installation on automated machinery.
The sensor provides an approximately 80 to 1200 mm sensing range using the specified reference target. Ultrasonic sensing is suitable for different object colours and surface appearances. This makes the sensor useful for presence detection, positioning and distance-related machine control.
IO-Link allows the sensor to communicate process and diagnostic information with an automation controller. The programmable output function provides flexibility for different machine-control requirements. Parameterisation can simplify commissioning and allow sensor operation to be adjusted according to the process.
UGT214 is suitable for production equipment, conveyor systems, packaging machines and material-handling applications. The threaded housing supports practical machine mounting. Its combination of ultrasonic detection, configurable switching and IO-Link communication provides a flexible industrial sensing solution.
80...1200 mm sensing range
IO-Link communication
PNP electrical design
NO/NC configurable operation
Non-contact ultrasonic sensing
M18 threaded housing
10...30 V DC operation
100 mA output capability
Industrial machine integration
Parameterisation capability
Object detection
Distance monitoring
Conveyor systems
Packaging machines
Material handling
Machine automation
Position monitoring
Production lines
Process control
Factory automation
| Specification | UGT214 – UGC01200EOKG/IO-Link/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UGC01200EOKG/IO-Link/US |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Sensing range | 80...1200 mm |
| Reference target | 200 x 200 mm |
| Communication | IO-Link |
| Housing | Threaded |
| Thread | M18 x 1 |
| Housing length | 60.5 mm |
| Operating voltage | 10...30 V DC |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | Model-specific |
| Switching output | Digital |
| Output current | 100 mA family |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Detection method | Non-contact |
| LED indication | Status indication |
| Mounting | Threaded |
| Manufacturer | IFM electronic |
