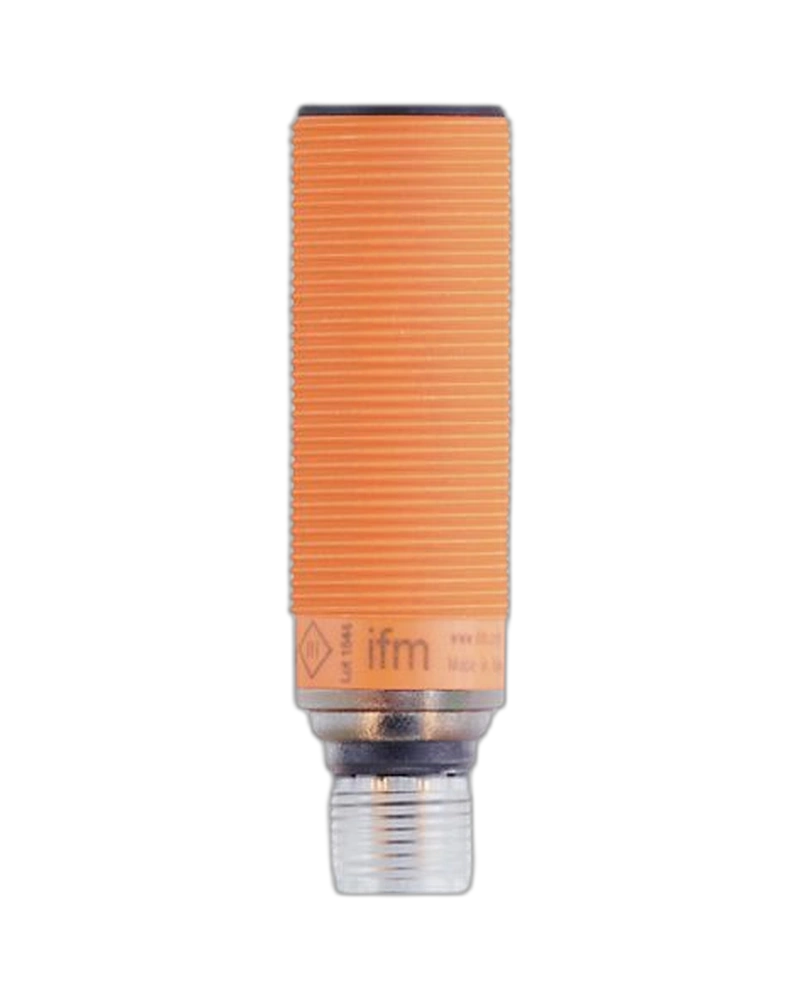

UGT212 is an IFM IO-Link ultrasonic sensor designed for compact short-range industrial detection. It provides a 40 to 300 mm sensing range with a 200 x 200 mm reference target and uses a PNP output with configurable normally open or normally closed operation. IO-Link enables parameterisation and communication, while the M18 threaded housing supports easy installation. The sensor is suitable for conveyors, packaging machines, material handling and automated production equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT212 combines ultrasonic sensing with IO-Link communication in a compact industrial housing. It provides non-contact detection for applications where target colour and surface appearance may vary. The sensor is designed for straightforward installation in automated machinery.
The sensor provides a 40 to 300 mm sensing range using a 200 x 200 mm target. Ultrasonic detection enables dependable sensing of objects without physical contact. This makes it suitable for short-distance presence detection, position monitoring and machine sequencing.
IO-Link provides convenient parameterisation and communication with the automation controller. The PNP output supports configurable NO/NC operation, while sensor information can be integrated into modern control architectures. This helps simplify setup and supports flexible machine configuration.
UGT212 includes short-circuit and overload protection and uses an M18 threaded housing. Its compact design supports installation in restricted spaces. The sensor is suitable for packaging, conveyors, material handling and general automation applications requiring reliable short-range detection.
40...300 mm sensing range
IO-Link communication
PNP electrical design
NO/NC parameterisation
10...30 V DC operation
300 kHz converter frequency
100 mA output current
Short-circuit protection
Overload protection
M18 threaded construction
Short-range object detection
Conveyor systems
Packaging machinery
Object positioning
Material handling
Machine automation
Production monitoring
Object counting
Process control
Factory automation
| Specification | UGT212 – UGC00300EOKG/IO-Link/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UGC00300EOKG/IO-Link/US |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Sensing range | 40...300 mm |
| Reference target | 200 x 200 mm |
| Communication | IO-Link |
| Operating voltage | 10...30 V DC |
| Current consumption | <35 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 300 kHz |
| Switching frequency | 8 Hz |
| Output current | 100 mA |
| Max. voltage drop | 2.2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Synchronisation input | No |
| Multiplex input | No |
| Housing | Threaded |
| Thread | M18 x 1 |
| Housing length | 60.5 mm |
| Manufacturer | IFM electronic |
