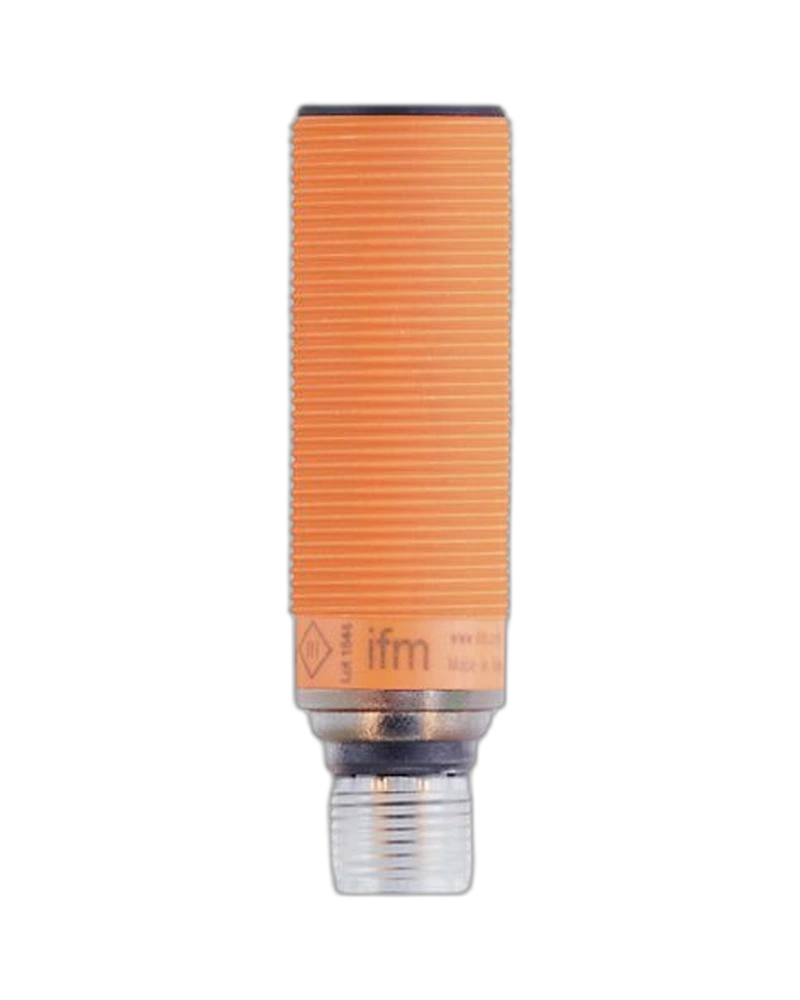

UGT209 is an IFM compact ultrasonic sensor designed for short-range non-contact object detection. It provides a 40 to 300 mm sensing range and uses an NPN output with configurable normally open or normally closed operation. The compact M18 threaded housing supports easy machine installation, while ultrasonic technology allows reliable detection independent of object colour or surface appearance. It is suitable for packaging, conveyors, machine automation and object-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT209 is designed for compact industrial sensing applications where reliable short-range ultrasonic detection is required. The sensor works without physical contact and can detect a variety of object surfaces. Its M18 threaded housing provides a familiar mounting arrangement for automated machines and production equipment.
The sensor provides a 40 to 300 mm sensing range using a 200 x 200 mm reference target. Ultrasonic sensing allows object detection without depending on visual contrast. This makes the sensor useful for monitoring the presence and position of objects on automated production equipment.
UGT209 uses an NPN electrical design and provides configurable normally open or normally closed output operation. This allows the sensor to be adapted to different control-system requirements. Short-circuit and overload protection support practical integration into industrial control circuits.
The M18 threaded housing and compact construction make UGT209 suitable for machine-mounted applications. Clear LED indication assists with commissioning and operating-status monitoring. The sensor is suitable for conveyors, packaging machines, material handling equipment and general factory automation.
40...300 mm sensing range
NPN electrical design
NO/NC configurable output
Ultrasonic non-contact sensing
M18 threaded housing
10...30 V DC operation
100 mA output current
Short-circuit protection
Overload protection
Compact industrial construction
Short-range object detection
Packaging machines
Conveyor systems
Object counting
Position detection
Machine automation
Material handling
Production line monitoring
Object presence sensing
Industrial control
| Specification | UGT209 – UGC00300FOKG/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UGC00300FOKG/US |
| Electrical design | NPN |
| Output function | NO/NC parameterisable |
| Sensing range | 40...300 mm |
| Reference target | 200 x 200 mm |
| Housing | Threaded |
| Thread | M18 x 1 |
| Housing length | 60.5 mm |
| Operating voltage | 10...30 V DC |
| Current consumption | <35 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 300 kHz |
| Switching frequency | 8 Hz |
| Output current | 100 mA |
| Max. voltage drop | 2.2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Synchronisation input | No |
| Multiplex input | No |
| Detection method | Non-contact |
| Manufacturer | IFM electronic |
