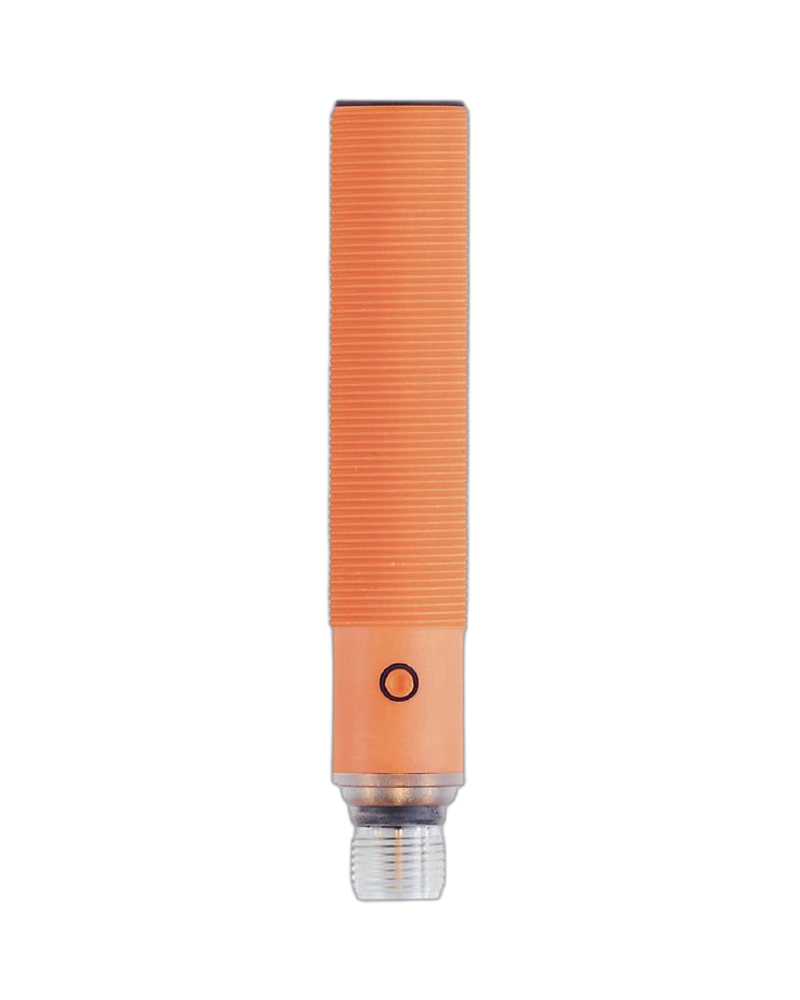

UGT208 is an IFM IO-Link ultrasonic sensor designed for long-range non-contact detection and distance monitoring. It belongs to the extended-range ultrasonic sensor family and is intended for industrial applications requiring reliable detection across larger machine areas. The sensor provides programmable switching functionality and process communication, while its threaded industrial housing supports straightforward installation. It is suitable for conveyors, material handling, packaging, machine automation and production monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT208 is designed to provide reliable ultrasonic detection for industrial machines and automated systems. Non-contact ultrasonic sensing allows the sensor to detect objects without depending strongly on colour, transparency or surface appearance. This provides a practical alternative for applications where optical sensing may be challenging.
The long-range sensing design makes UGT208 suitable for monitoring objects across extended machine distances. It can support presence detection, position monitoring and distance-related control in automated equipment. Ultrasonic technology provides consistent sensing for many different industrial target materials.
IO-Link enables communication between the sensor and automation controller while supporting parameterisation and diagnostic information. Programmable sensor functions allow machine builders to configure switching behaviour according to process requirements. This provides flexibility during commissioning and future machine adjustments.
UGT208 is suitable for conveyor systems, material handling, packaging machinery and production equipment. Its threaded housing allows practical installation, while ultrasonic sensing supports reliable non-contact detection. The sensor can be integrated into modern industrial automation systems requiring flexible configuration and process information.
Long-range ultrasonic detection
IO-Link communication
Programmable sensor functions
Non-contact operation
Industrial threaded housing
Flexible switching configuration
Suitable for varied target surfaces
Machine automation compatibility
LED operating indication
Designed for continuous industrial use
Conveyor monitoring
Material handling
Object detection
Position monitoring
Distance-related control
Packaging machinery
Production lines
Machine automation
Industrial equipment monitoring
Factory automation
| Specification | UGT208 – UG-02200E2KG/IO-LINK/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UG-02200E2KG/IO-LINK/US |
| Sensing technology | Ultrasonic |
| Detection method | Non-contact |
| Sensing range | Model-specific long-range version |
| Reference target | 200 x 200 mm |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Communication | IO-Link |
| Operating voltage | 10...30 V DC |
| Current consumption | 55 mA family value |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | Model-specific |
| Switching output | Digital |
| Analogue/process output | Model-specific |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Housing | Threaded |
| Thread | M18 x 1 |
| LED indication | Status indication |
| Application | Industrial automation |
| Manufacturer | IFM electronic |
