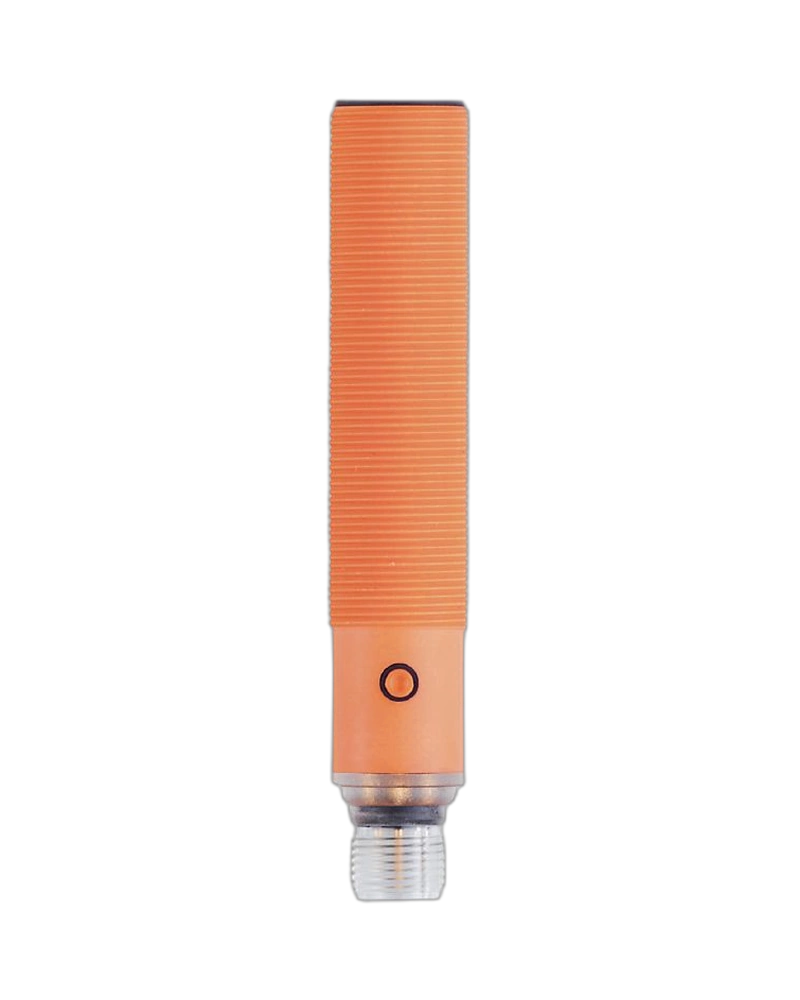

UGT207 is an IFM long-range ultrasonic sensor combining non-contact detection with IO-Link communication and analogue process output. It offers a sensing range of approximately 200 to 2200 mm with a 200 x 200 mm reference target. The programmable PNP output can be configured for different switching requirements, while the analogue signal supports continuous distance-related monitoring. Its M18 threaded housing suits industrial machine installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT207 provides extended-range ultrasonic detection for industrial automation applications. Its non-contact sensing principle enables detection of a wide range of targets without relying on colour or visual contrast. The compact threaded construction allows straightforward integration into automated machinery.
With a sensing range of approximately 200 to 2200 mm, UGT207 is designed for applications requiring extended detection distances. The sensor can monitor object position, presence and distance in conveyors, material handling equipment and automated production systems.
The sensor combines a programmable PNP switching output with an analogue current signal and IO-Link communication. This allows the sensor to provide both switching information and continuous process data. IO-Link also supports parameterisation and machine-level communication for modern automation systems.
The M18 threaded design provides a conventional industrial mounting method. UGT207 is suitable for applications where reliable long-range sensing, configurable switching and process-value monitoring are required. Its combination of ultrasonic technology and digital communication makes it suitable for advanced factory automation.
200...2200 mm sensing range
IO-Link communication
Analogue 4...20 mA output
PNP switching output
NO/NC parameterisation
Long-range ultrasonic sensing
Non-contact detection
M18 threaded housing
Temperature compensation
Industrial automation design
Long-range object monitoring
Conveyor systems
Material handling
Distance measurement
Object positioning
Packaging equipment
Machine automation
Production monitoring
Process control
Factory automation
| Specification | UGT207 – UG-02200E1KG/IO-LINK/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UG-02200E1KG/IO-LINK/US |
| Sensing range | 200...2200 mm |
| Reference target | 200 x 200 mm |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Digital output | 1 |
| Analogue output | 1 |
| Analogue output signal | 4...20 mA |
| Maximum load | 500 Ω |
| Operating voltage | 10...30 V DC |
| Current consumption | 55 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 200 kHz |
| Switching frequency | 2 Hz |
| Switching output current | 100 mA |
| Communication | IO-Link |
| Housing | Threaded |
| Thread | M18 x 1 |
| Housing length | 97.5 mm |
| Short-circuit protection | Yes |
| Manufacturer | IFM electronic |
